| SIZE | |||
|---|---|---|---|
| Max Print Width | 36 inch wide (914mm) | ||
| PRINT TECHNOLOGY | |||
| Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment | ||
| Print Modes | Uni & Bi-directional | ||
| Nozzle Configuration | 800 per colour | ||
| Maximum Resolution | 2400dpi x 1200dpi | ||
| Minimum Ink Droplet Size | 4.0pl | ||
| INK SYSTEM | |||
| Family | Epson Ultrachrome® XD2 | ||
| Type | All-Pigment Aqueous | ||
| Colours | C+M+Y+K | ||
| Cartridges | CMYK 110ml CMYK 350ml |
||
| PERFORMANCE (per Sheet) | |||
| CAD A1 | 22sec | ||
| Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type. | |||
| MEDIA SUPPORT | Add | ||
| Roll Format | Single roll top loaded spindle, 2″ core, 3” core for plain paper, 0.08 to 0.3mm thick, 254-914mm wide, 170mm max diameter, max weight 12kg | ||
| Sheet Format | Top loaded A4-A0/B1 single sheets, 279.4 to 1,580 mm length, 0.08-0.3mm thick | ||
| Borderless Printing | Supported Media Types: A1 (594mm) and A1+ (610mm), 700mm, B1 (728mm), A0 (841mm), A0+ (914mm) Cut Sheet only borderless to the left and right of the sheet |
||
| Auto Cutter | Inbuilt rotary type | ||
| Manual Double Sided Printing | Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. | ||
| Output | Printer Stand incorporates a media basket | ||
| OPERATION | |||

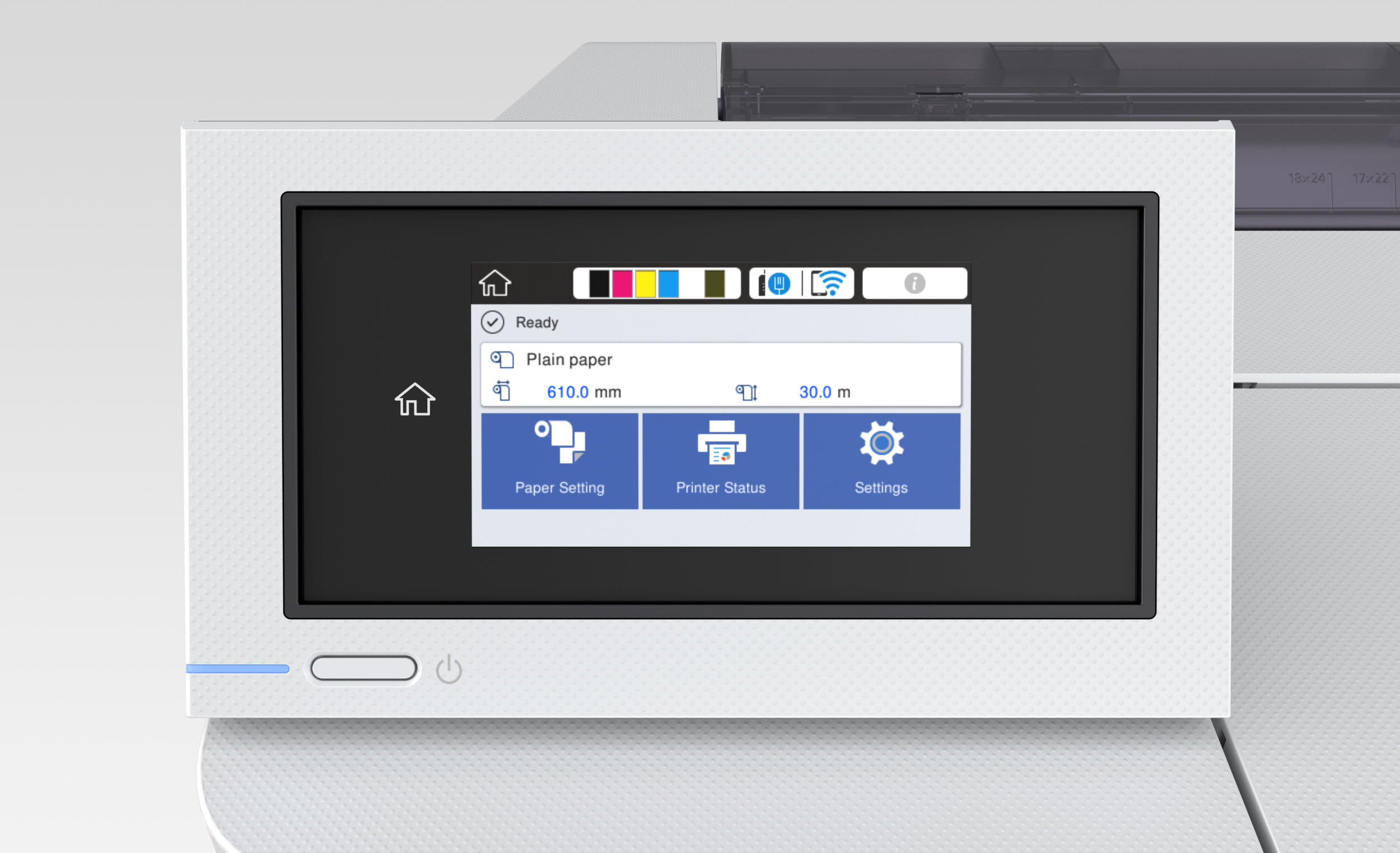

| Control Panel | 4.3″ Colour LCD touch screen | ||
| Control Code | ESC/P2, ESC/P Raster, HP/GL/2 & HP RTL* 1 | ||
| Connectivity | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print | ||
| Included Software | Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only) | ||
| Software via web download | HDI driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Edge Dashboard, LFP Accounting tool | ||
| Roll Management System (Roll Format) | Barcode Roll Media Management system helps keep track of the type of media and how many metres is left on the roll | ||
| USB Input | Front panel USB slot enables JPEG and TIFF files to be printed direct from a thumb drive | ||
| Compatibility | Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later | ||
| Memory | 1GB RAM | ||
| Scanner Support | USB interface with integrated control & auto enlargement Supports 5×7″, Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes Supports A2, US-C (17×22″), B2, US-D (22×34″), A1, B1, US-E (34×44″), A0 & custom (89-610mm wide) output page sizes Supports Epson DS-530, DS-6500 & DS6000 scanner models |
||
| Physical (WxHxD) | Floor Standing: 1385 × 966 × 1070 mm, 76kg (open basket, no consumables, media or options) | ||
| ENVIRONMENT | |||
| Operational Temp | 10° to 35° C | ||
| Operational Humidity | 20 to 80% (40 to 60% is recommended for no condensation) | ||
| Power Supply | 100 – 240 V AC, 50/60 Hz | ||
| Power Consumption | 38W Operating, 13W Standby, 1.3W Sleep | ||
| Operating Noise | 50dB | ||
| Recommended Install Space (WxHxD) | Floor-standing: 1385 × 750 × 1070 mm | ||
| SHIPPING INFO | |||
| Packaging (WxDxH) | Floor standing: 1548 ｘ 850 ｘ 1100 mm, 113Kg | ||
| What’s in the Box | Printer, Power Cord, set of 110ml ink cartridges, 1 x Maintenance Tank, Setup Guide & Warranty Info. Driver, user software & manuals on CD. | ||
| Delivery & Install | Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations. | ||
| Service & Support | Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas. | ||
| CONFIGURATION OPTIONS | |||
| C11CF86401 | Floor Standing with 1Yr On-Site Warranty | ||
| SCT54603YR | Floor Standing with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)** | ||
| SCT54605YR | Floor Standing with 2 x 2Yr CoverPlus On-Site Service Pack (total 5 yrs cover)** | ||
| SCT5460S1YR | Floor Standing with DS-530 scanner & 1Yr On-Site Warranty | ||
| SCT5460S3YR | Floor Standing with DS-530 scanner & 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)** | ||
| SCT5460S5YR | Floor Standing with DS-530 scanner & 2 x 2Yr CoverPlus On-Site Service Pack (total 5 yrs cover)** | ||
| OPTIONAL ACCESSORIES | |||
| C12C933301 | Additional Roll Feed Spindle for T5460 (36″) | ||
| 1YWTSCT5460 | 1 Yrs Epson CoverPlus On-Site Printer Service Pack** | ||
| 2YWTSCT5460 | 2 Yrs Epson CoverPlus On-Site Printer Service Pack** | ||
| ** Epson CoverPlus Service Packs enable cover to be extended. One or more Service Packs can be ordered in conjunction with the various printer configurations &/or options to enable cover for 1, 2, 3, 4 and 5 year periods (total cover cannot exceed 5 years). Service and support is only provided for product supplied through Epson Australia or Epson New Zealand. This facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Limitations apply to the provision of Warranty and CoverPlus. Regional locations and certain installation situations may attract additional charges. Service may be restricted or limited when equipment is used outside of specification, with non-genuine Epson consumables, and consumables not designed for use with the particular printer model. For full details on coverage, terms and limitations please review the warranty terms. | |||
Not sure which machine is right for you? Our sales team has an in-depth understanding of the capabilities of our machines and can guide you in selecting the copier or printer that suits your business needs. Book an obligation-free consultation with us and let us walk you through the options.
