Always smarter meetings
It is so simple to walk in to a room, plug in your device and start working together straightaway. Just connect with the 8m long USB-C cable and it automatically switches to the right input for whatever information you want to display. You’re instantly ready to start your meeting — saving up to 10 minutes* time trying to set up connections.
Simply much easier

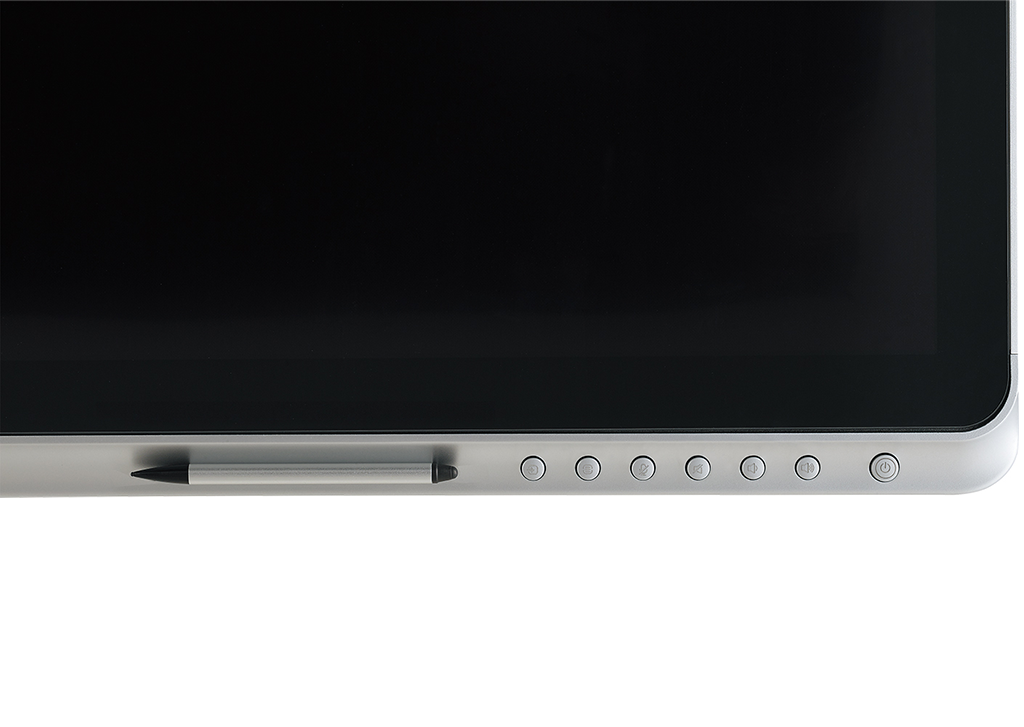

With its 10-point Projected Capacitive (PCAP) touch technology and direct optical bonding, it provides a more accurate and natural Pen-on-Paper experience. Writing on-screen is just as quick and effortless as writing on a flipchart or whiteboard. By using either a finger or pen, notes and comments can be quickly added as simple text or by drawing freehand to highlight changes and annotate the information on-screen.
Promotes collaboration through engagement

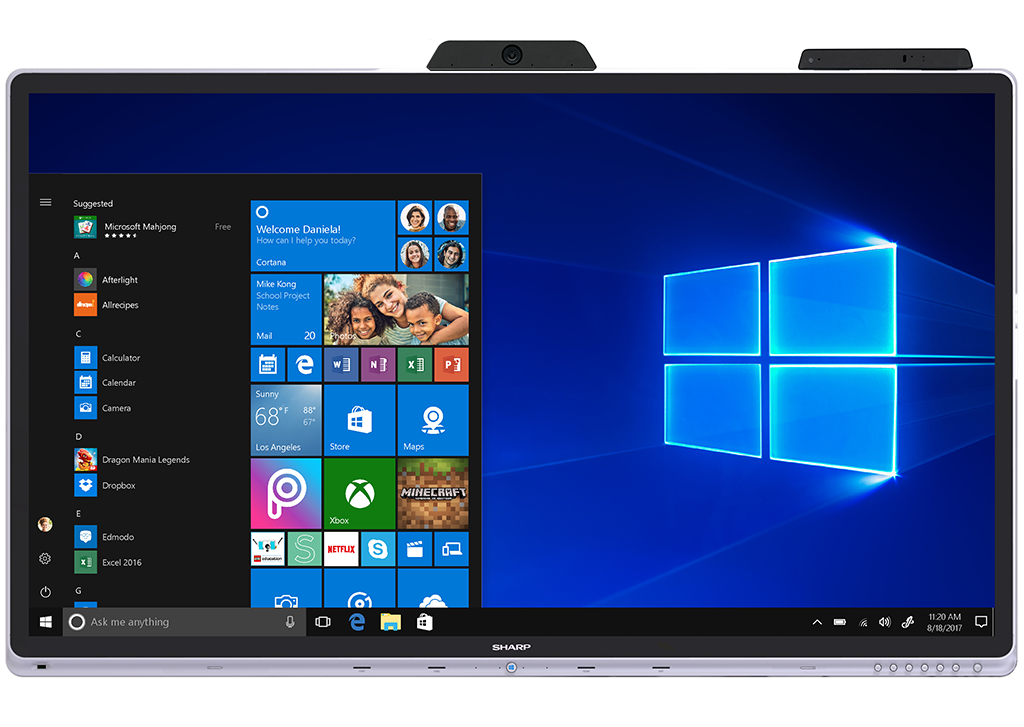

Business teams come in all shapes and sizes — from tactical workgroups to large-scale, established project teams — and often span both local and global locations. But to be truly effective they need to share ideas openly and inclusively. The Windows collaboration display from Sharp has been certified for Skype for Business and is supported by Microsoft Teams. It offers the highest quality audio and video and provides the best ways to connect and collaborate using the power and productivity of Microsoft 365 at room scale.*
Stylish design

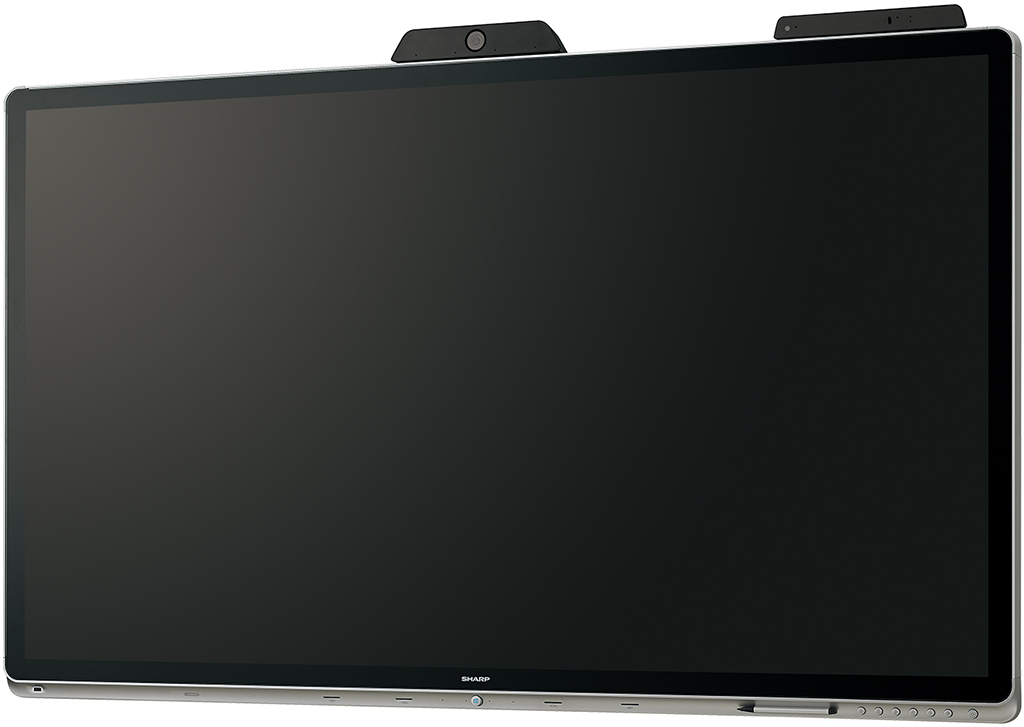

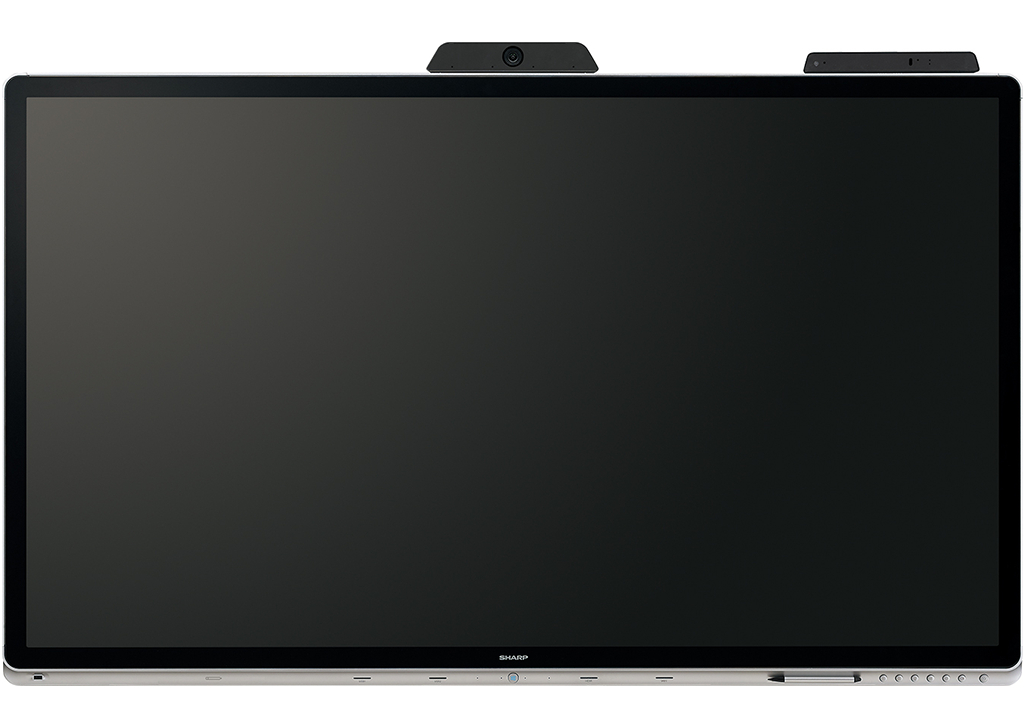

The display has an attractive and elegant edge to edge design that looks good in even the most prestigious corporate boardroom
Effortless device sharing
The Windows collaboration display has in-built Wireless Casting that works with Windows and Android™ devices. As a result, you can simply connect your own device to the display and easily share and display any information.
Create a smarter and comfortable meeting environment
Creating a comfortable environment in your meeting rooms pays real dividends in terms of helping people concentrate and improving productivity. The Windows collaboration display from Sharp has in-built sensors that can connect to the Microsoft Azure Digital Twins IoT platform, and other commercially available cloud and subscription services such as Sharp WorkSpaces* as part of a smart building environment.
| Model Name | PN-CD701 | ||
|---|---|---|---|
| Installation | Landscape | ||
| LCD Panel | 70-inch-class (69 1/2-inch [176.6 cm] diagonal) UV2A LCD | ||
| Max. Resolution | 3,840 x 2,160 pixels | ||
| Max. Display Colours (approx.) | 1.06 billion colours | ||
| Pixel Pitch (H x V) | 0.401 mm x 0.401 mm | ||
| Brightness*1 | 350 cd/m2 | ||
| Contrast Ratio*1 | 4,000 : 1 | ||
| Viewing Angle (H/V) | 176°/176° (CR ≥ 10) | ||
| Active Screen Area (W x H) (approx.) |
1,538.9 x 865.6 mm (60 9/16″ x 34 1/16″) |
||
| Response Time | 6 ms (grey to grey, avg.) | ||
| Backlight | LED, edge lit | ||
| Touchscreen | Touch Technology | Capacitive touch | |
| PC Connection Port | USB 3.0 (Type B) x 1, USB Type C x 2 |
||
| Power Supply | Supplied from main unit | ||
| Multi Touch | 10 points | ||
| Protection Glass | Thickness: Approx. 1.9 mm*2 Shock resistance: 130 cm*3 |
||
| Touch Pen | Function Button | N/A (passive pen) | |
| Computer Input | Video | HDMI USB Type C |
|
| Synchronisation | Horizontal/vertical separation (TTL:positive/negative) | ||
| Plug & Play | VESA DDC2B | ||
| Power Management | Supported | ||
| Input Terminals | HDMI (HDCP 2.2 compatible, 10 bit color depth supported) x 1, USB Type-C (HDCP compatible, DisplayPort alternate mode) x 2 |
||
| Output Terminals | USB Type-C (HDCP compatible, DisplayPort alternate mode) x 1, 3.5mm-diameter mini stereo jack x 1 |
||
| Input/Output Terminals | LAN port (10BASE-T/100BASE-TX/1000BASE-T) x 1 (RJ45) | ||
| USB Hub Function | USB 3.0 (TypeA) x1 | ||
| Wireless LAN | Compliant with IEEE802.11ac/n/a/g/b | ||
| Bluetooth | Compliant with version 4.2 (A2DP/AVRCP/GATT/GAP/HID) | ||
| Speaker Output | Built-in | 12W + 12W | |
| External | 12W + 12W (6Ω) | ||
| Mounting | 4 points, 400x400mm pitch, M6 screw | ||
| Power Supply | 100V-240V AC, 50/60Hz | ||
| Continuous Operation | 24 hrs | ||
| Power Consumption | 370W | ||
| Environmental Conditions |
Operating Temperature*4 *5 | 5°C to 35°C | |
| Operating Humidity*5 | 20% to 80% RH (no condensation) | ||
| Dimensions*6 (W x D x H) (approx.) | 1,623.5 x 90 x 976.5 mm (63 15/16″ x 3 9/16″ x 38 7/16″) | ||
| Weight (approx.) | 65 kg (143.3 lbs) | ||
| Main Accessories | AC power code, HDMI cable x1, USB Type-C cable (8m [26.2 feet]) x 1, CD-ROM, set-up manual, touch pen x 1, USB A to B cable (for touch back) x 1, cable clamp x 1, camera x 1, knurled screw (3) x 2, USB A to B cable (for camera) x 1, S/PDIF cable x 1, 3.5 mm mini jack to USB A cable x 1,IoT sensor hub x 1, micro USB cable (for IoT sensor hub) x 1, knurled screw (M3) x 2, IoT sensor hub screw (M3) x 2, IoT sensor hub mounting brackets (L/R) x 1 each | ||
Windows, Microsoft , Microsoft Teams, Azure are either registered trademarks or trademarks of Microsoft Corporation in the US and/or other countries. Apple and Mac are trademarks of Apple Inc., registered in the US and other countries. Android is a trademark of Google Inc. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. All other brand names and product names may be trademarks or registered trademarks of their respective owners. All screen images appearing in this brochure are simulated. Design and specifications are subject to change without prior notice.
