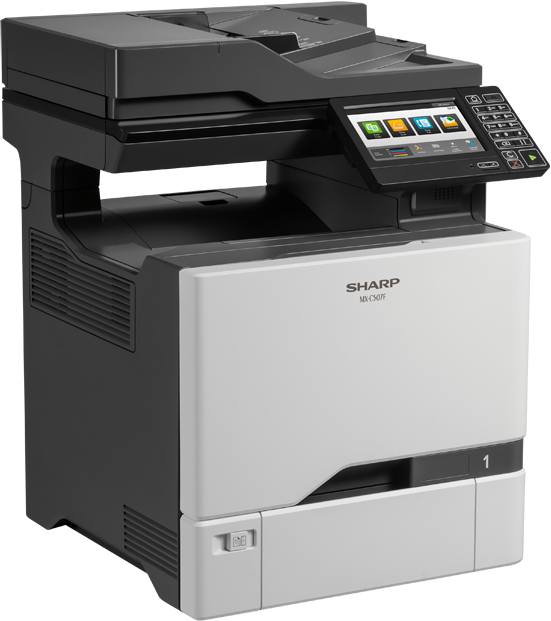

MX-C507F-slant-02
MX-C507F-panelup-02

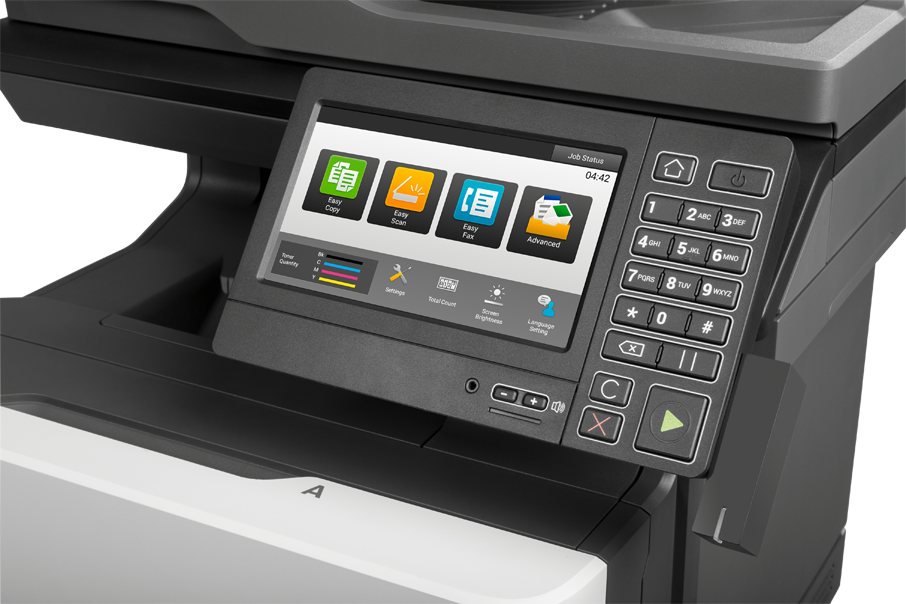

MX-C507F-panelup

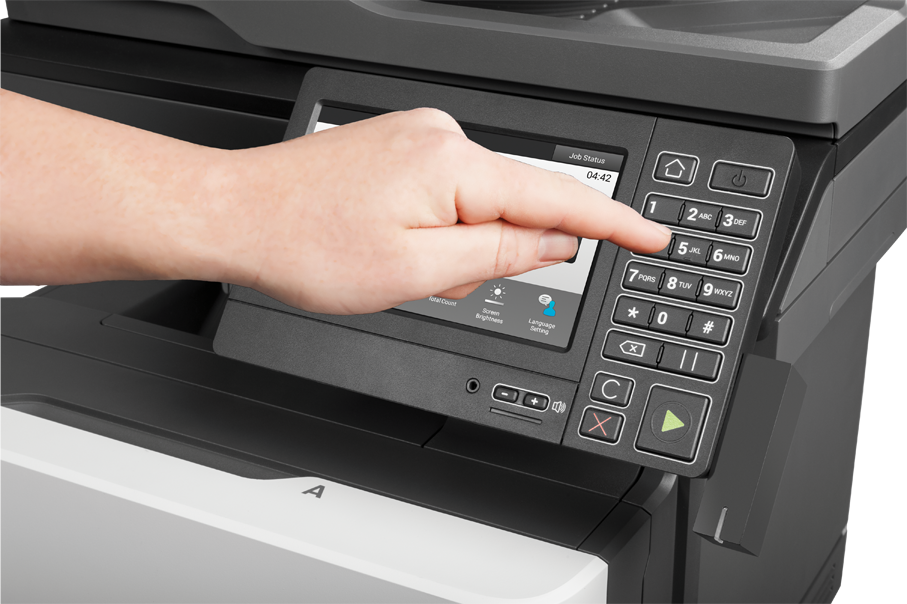

MX-C507F-panel-hand-01

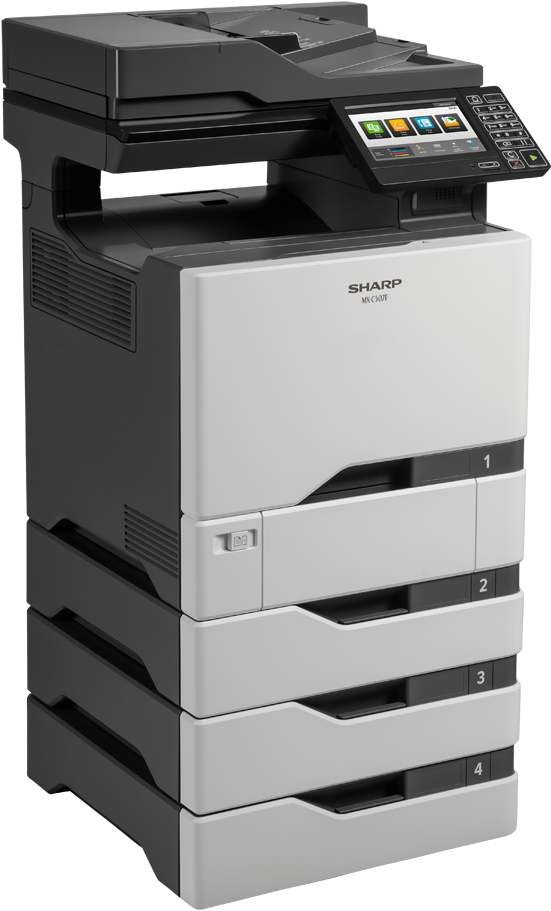

MX-C507F-full-slant-02

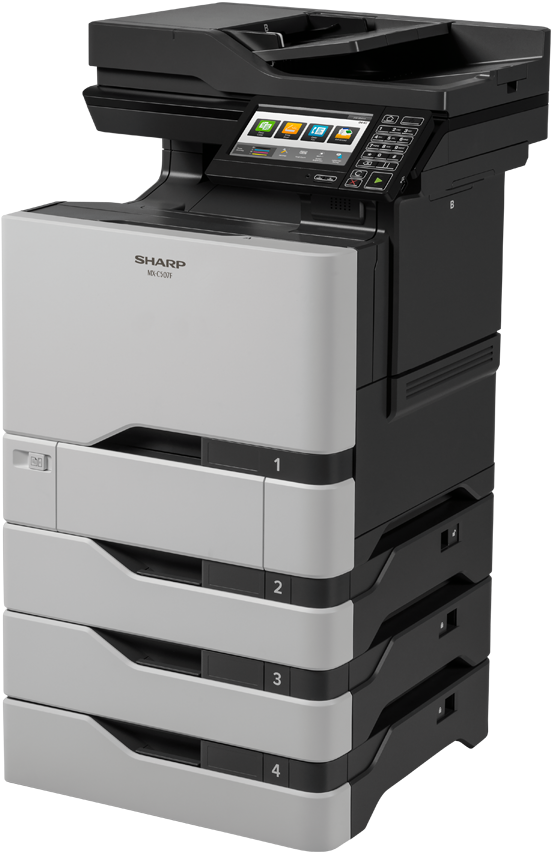

MX-C507F-full-slant-01

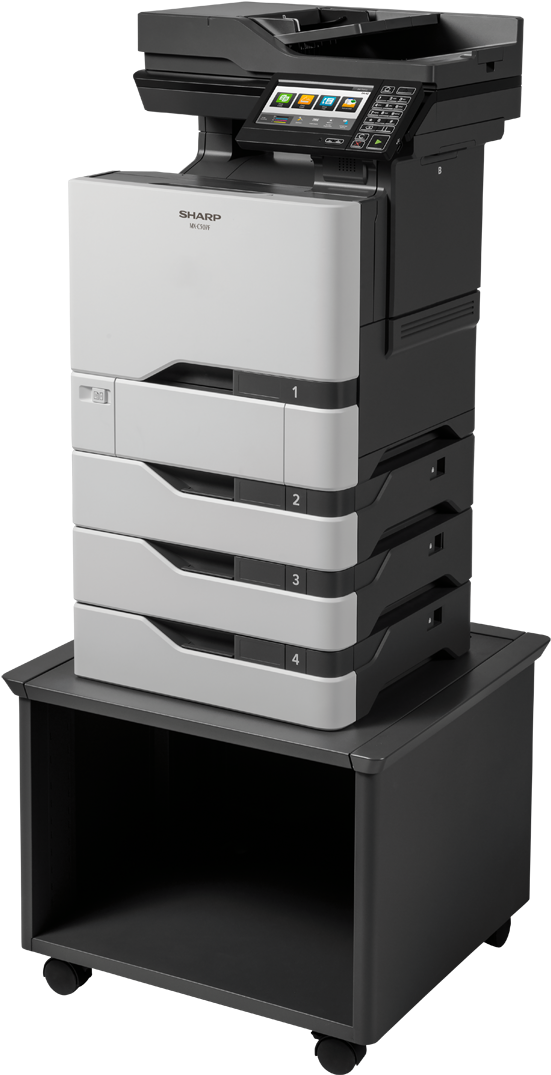

MX-C507F-full-cabinet-slant-01

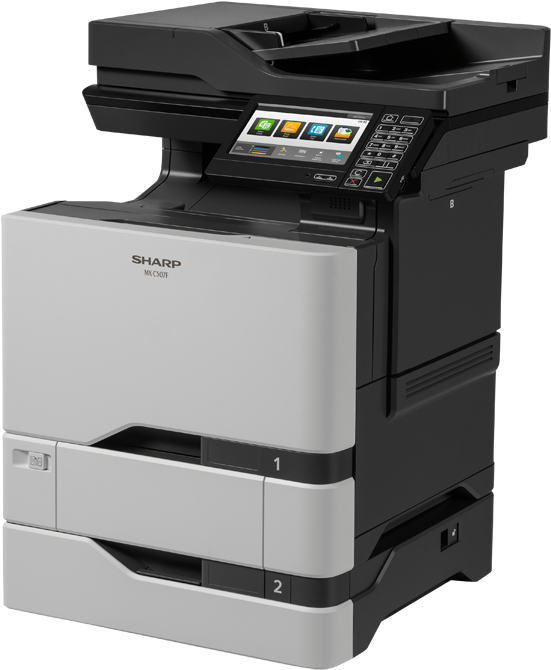

MX-C507F-CS17-slant-01

MXC507F

The MX-C507F is a 4-in-1 A4 colour MFP that offers a host of productivity features that suits the needs of a small workgroup and medium or large offices. Offering print speeds of up to 47ppm and scan speeds of up to 56ipm, productivity stays high and ensures your data is printed or captured in no time at all and available to you to distribute via your network, cloud or applications.

"*" indicates required fields

Step 1 of 2

Name
  • Print, Copy, Scan, Fax, File
  • Pages per minute: 47 B/W, 47 Colour
  • Paper capacity: Std 650 Max 2300 sheets

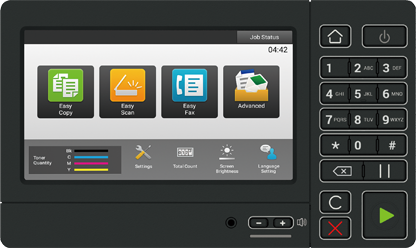

  • 7” colour LCD touchscreen with Easy UI mode and intuitive operation
  • Advanced fast scanning technology, connects to your digital systems with scan speeds of 56ipm
  • Easy access to public cloud services
  • Sensitive data stays secure with user authentication, encryption, port and connection filtering to limit access
  • Energy management features that reduce power consumption

General

Model MX-C507F/C407F MX-C507P
Type Desktop
Engine speed A4*1 Max. 47/38 ppm Max. 47 ppm
8 1/2″ x 11″*1 Max. 50/40 ppm Max. 50 ppm
Control panel display 7.0-inch colour LCD touchscreen 4.3-inch colour LCD touchscreen
Paper size Max. A4 (8 1/2″ x 14″), min. A6 (5 1/2″ x 8 1/2″)
Paper capacity
(75 g/m2)		 Standard 650 sheets
(550-sheet tray and 100-sheet multipurpose feeder)
Maximum 2,300 sheets
(650 sheets & optional 550-sheet tray x 3)
Paper weight Tray 60 g/m2 to 218 g/m2 (16 lbs bond to 80 lbs cover)
Multipurpose feeder 60 g/m2 to 218 g/m2 (16 lbs bond to 80 lbs cover)
First print time*2 Colour – 5.5 sec.
B/W – 5.0 sec.
Memory Standard MX-C507F: 2 GB    500 GB HDD*3
MX-C407F: 2 GB		 1 GB    500 GB HDD*3
Option MX-C507F: 2 GB
MX-C407F: 2 GB    500 GB HDD*3		 2 GB
Dimensions (W x D x H) 505 x 533 x 648 mm (19.9″ x 21″ x 25.5″) 475 x 499 x 417 mm (18.7″ x 19.5″ x 16.4″)
Weight (approx.) 44.8 kg (101 lbs) 36.5 kg (80.5 lbs)

Copier

Model MX-C507F/C407F MX-C507P
Original paper size Max. A4 (8 1/2″ x 14″) –
First copy time*4 Colour 7.0/8.0 sec. –
B/W 6.5/7.0 sec. –
Continuous copy Max. 9,999 copies –
Resolution Max. 600 x 600 dpi –
Zoom range 25% to 400% in 1% increments –
Preset copy ratios 6 ratios (2R/4E) –

Scanner

Model MX-C507F/C407F MX-C507P
Scan method Push scan (via control panel)
Pull scan (TWAIN-compliant application)		 –
Scan speed*5
(colour & B/W)		 A4 Max. 56 originals/min. –
8 1/2″ x 11″ Max. 60 originals/min. –
Resolution Push scan 75, 150, 200, 300, 400, 600 dpi –
Pull scan 75, 150, 200, 300, 400, 600 dpi –
File formats TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, XPS, compact PDF*6*7, JPEG*7, searchable PDF*8, DOCX*8, CSV*8, text (TXT)*8, rich text (RTF)*8 –
Scan destinations Scan to e-mail/FTP server/USB drive/network folder (SMB)/ HDD –

Printer

Model MX-C507F/C407F MX-C507P
Resolution 1,200 x 1,200 dpi, 2,400 (equivalent) x 600 dpi
Interface USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 a/ac/b/g/n)*9
Supported OS Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012 R2, Windows Server® 2016, Windows Server® 2019, Windows® 7, Windows® 8.1, Windows® 10
Mac OS 10.10, 10.11, 10.12, 10.13, 10.14, 10.15
Network protocols TCP/IP
Printing protocols LPD, Raw TCP (port 9100), enhanced IP (port 9400), secure IP (port 96xx), FTP, TFTP, IPP
PDL PCL 5c/PCL 6 emulation, PostScript® 3™ emulation
Available fonts 89 fonts for PCL, 158 fonts for PostScript 3 emulation

Facsimile

Model MX-C507F/C407F MX-C507P
Compression method MH/MR/MMR/JBIG/JBIG2/JPEG –
Communication protocol Super G3/G3 –
Transmission time Less than 3 seconds*10 –
Modem speed 33,600 bps to 2,400 bps with automatic fallback –
Transmission resolution B/W From Standard to Ultra Fine –
Colour From Fine to Super Fine –
Recording size A4 to A6 (8 1/2″ x 14″ to 5 1/2″ x 8 1/2″) –
Memory MX-C507F: 1 GB (built-in)
MX-C407F: 18 MB (built-in)*11		 –
