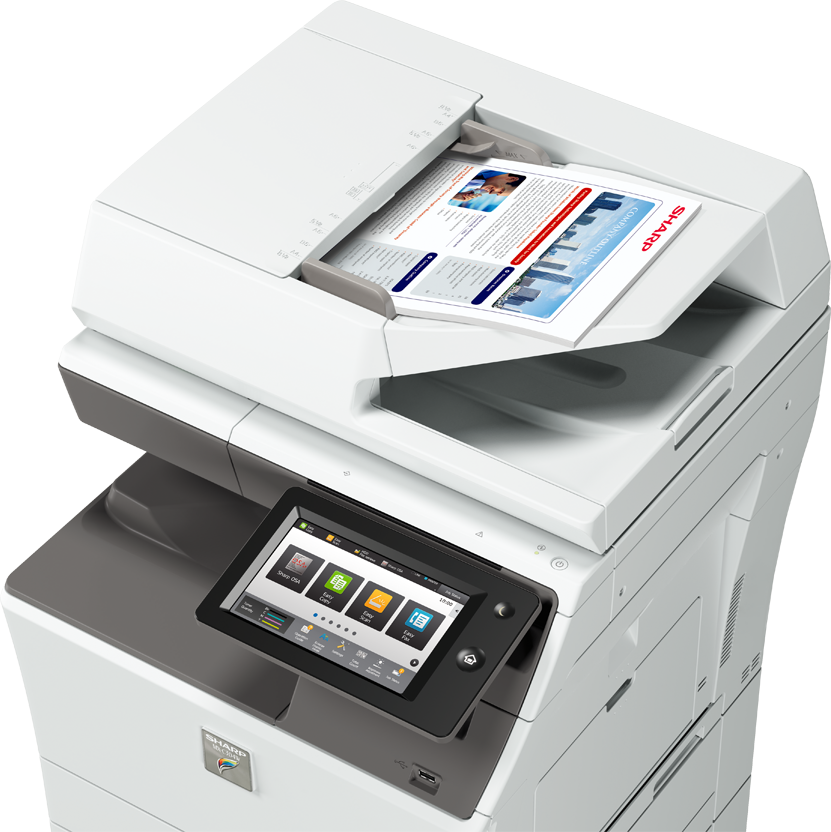

Neo2IT_DSPF_scanning
Neo2IT_capacity
Neo2IT_A6_Paper

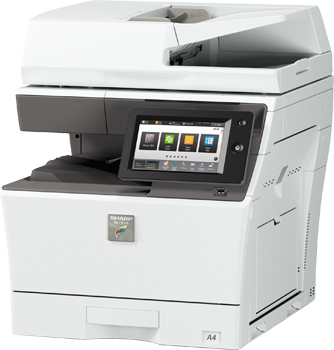

MX-C304W_slant
MX-C304W_recommend_beauty

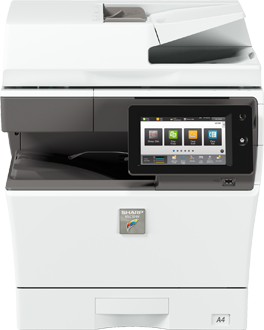

MX-C304W_front

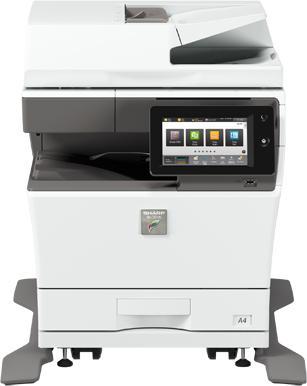

MX-C304W_DS23_front

MXC304W

Stylishly compact and designed for high performance, the MX-C304W Sharp photocopiers are sized and equipped to suit any business setting or application. This handy A4 solution delivers full-colour performance and four-function efficiency right from a desk or countertop—without taking up valuable floor space.

"*" indicates required fields

Step 1 of 2

Name
  • 7″ Colour Touchscreen
  • Built-in Wireless Connections
  • Sharpdesk Mobile
  • Sharp OSA
  • AirPrint
  • Copying and Network Printing
  • Superb Image Quality
  • Easy, High-Quality Copying
  • Proof Copying or Printing
  • Direct Printing
  • D Card Copy

Scanning and Faxing

  • Full Network Scanning
  • Quick Scanning
  • Skip Blank Page Function
  • Multiple Distribution of Scanned Files
  • Business Card Scanning
  • LDAP Support
  • High-Speed Faxing
  • PC-Fax/PC-Internet Fax
  • Internet Fax
  • Paperless Faxing with Inbound Routing

Document Management

  • Document Management on the Hard Disk
  • Easy Access to Stored Files
  • Sharpdesk for Total Document Management
  • Sharp OSA Network Scanner Tool
  • Easy Sharing of Application Files

Security

  • Secure Network Access
  • User Authentication
  • Encrypted PDF with Password Protection
  • Secure Sockets Layer
  • Scan to Me Function
  • Data Encryption and Overwriting
  • IPv6 and IPsec Support
  • Data Initialisation
  • Document Control Function (option)

User Friendliness

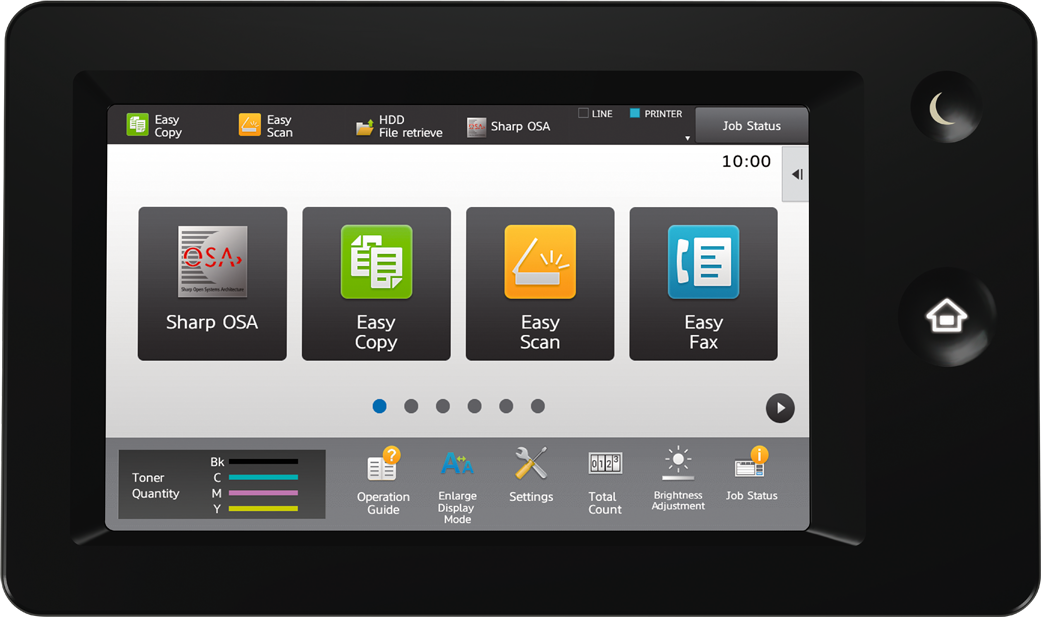

  • 7.0-Inch Colour Touchscreen LCD

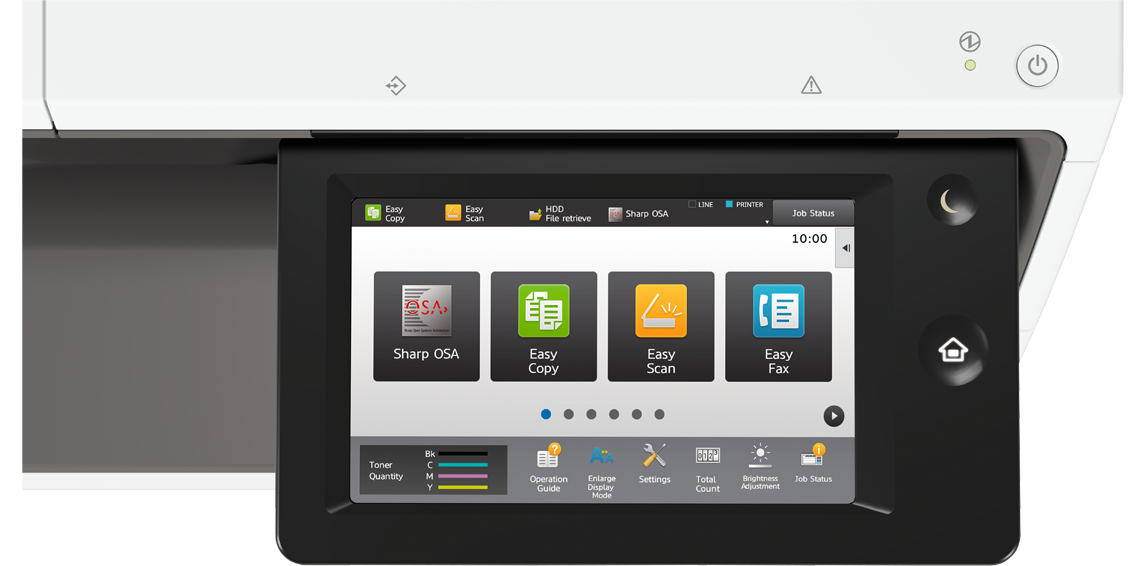

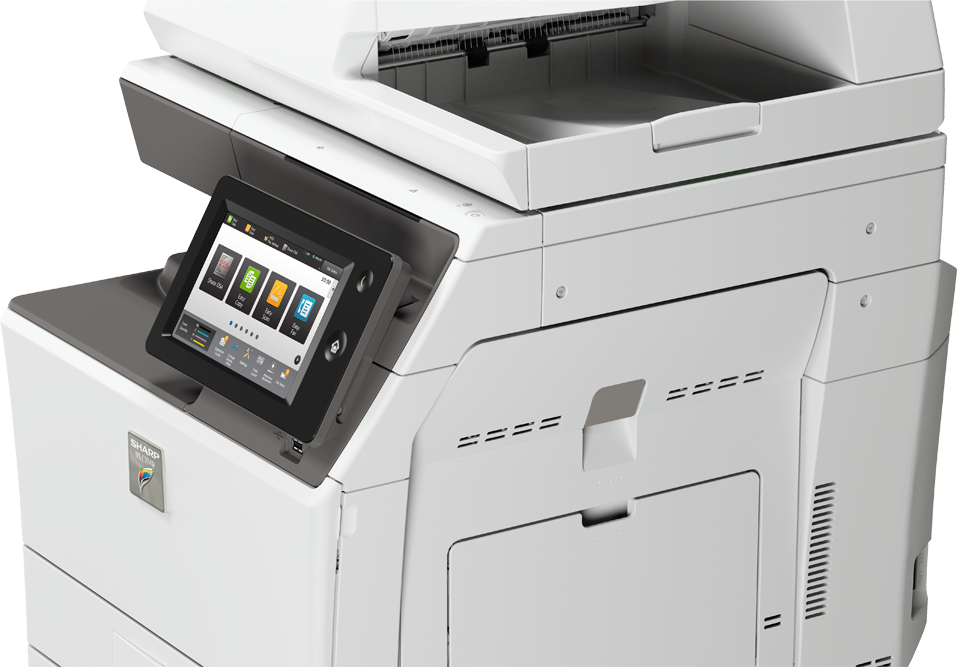

  • Tiltable Control Panel
  • Job Status Screen
  • Thumbnail Display and Previews

General

Model MX-C304W/C303W MX-C304/C303
Type Desktop
Engine speed A4 (8 1/2″ x 11″)*1: Max. 30 ppm
Control panel display 7-inch colour LCD touchscreen

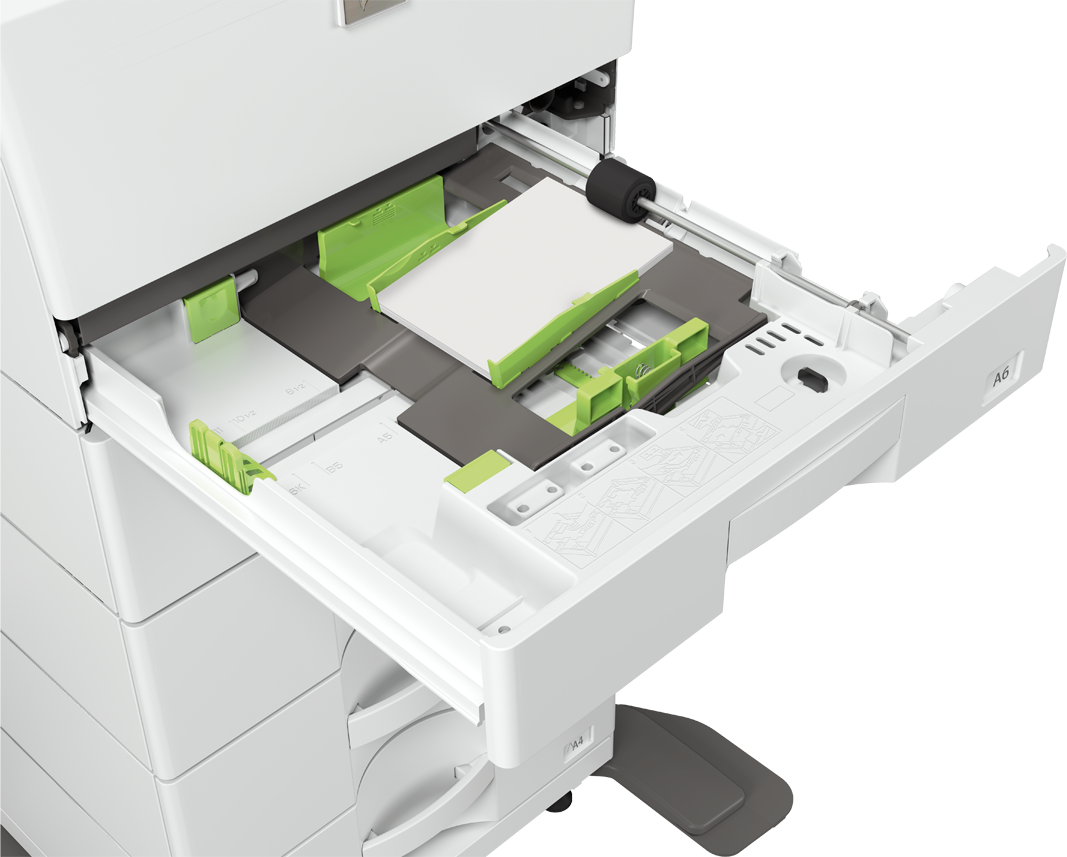

Paper size Max. A4 (8 1/2″ x 14″), min. A6 (5 1/2″ x 8 1/2″)

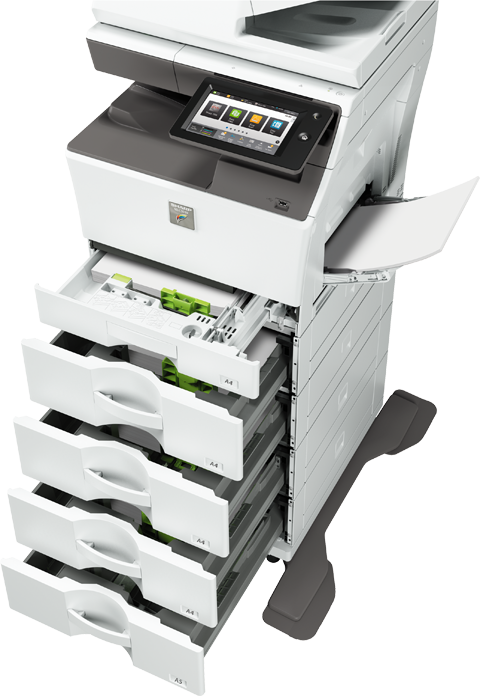

Paper capacity
(80 g/m2)		 Standard 300 sheets
(250-sheet tray and 50-sheet multi bypass tray)

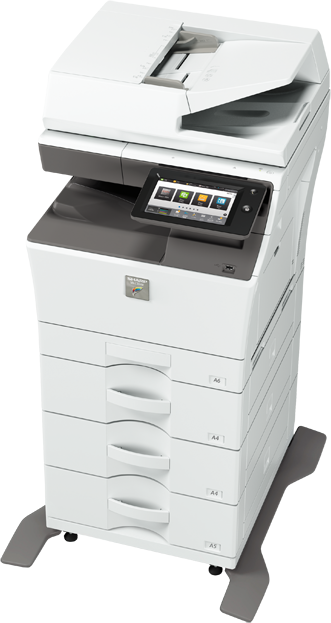

Maximum 2,700 sheets
(300 sheets & optional 600-sheet tray x 4)
Paper weight Tray 1 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond)
Trays 2–5 (MX-CS14 N) 55 g/m2 to 220 g/m2 (13 lbs bond to 80 lbs cover)
Multi bypass tray 55 g/m2 to 220 g/m2 (13 lbs bond to 80 lbs cover)
Warm-up time*2 47 sec.*3
Memory 5 GB (copy/print shared)    500 GB HDD*4
Power requirements Rated local AC voltage ±10%, 50/60 Hz
Power consumption Max. 1.84 kW (220 V to 240 V), max. 1.44 kW (110 V to 127 V)
Dimensions (W x D x H)*5 MX-C304W: 491 x 568*6 x 565 mm
(19 11/32″ x 22 3/8″ x 22 1/4″)
MX-C303W: 491 x 568*6 x 516 mm
(19 11/32″ x 22 3/8″ x 20 21/64″)		 MX-C304: 491 x 568*6 x 565 mm
(19 11/32″ x 22 3/8″ x 22 1/4″)
MX-C303: 491 x 568*6 x 516 mm
(19 11/32″ x 22 3/8″ x 20 21/64″)
Weight (approx.) MX-C304W: 38 kg (83.8 lbs)
MX-C303W: 35 kg (77.2 lbs)		 MX-C304: 38 kg (83.8 lbs)
MX-C303: 35 kg (77.2 lbs)

Copier

Model MX-C304W/C303W MX-C304/C303
Original paper size Max. A4 (8 1/2″ x 14″)
First copy time*7 Colour MX-C304W: 6.7 sec.
MX-C303W: 7.4 sec.		 MX-C304: 6.7 sec.
MX-C303: 7.4 sec.
B/W MX-C304W: 5.5 sec.
MX-C303W: 6.3 sec.		 MX-C304: 5.5 sec.
MX-C303: 6.3 sec.
Continuous copy Max. 9,999 copies
Resolution Scan 600 x 600 dpi, 600 x 400 dpi
Print 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode)
Gradation Equivalent to 256 levels
Zoom range 25% to 400% (25% to 200% using DSPF/RSPF) in 1% increments
Preset copy ratios Metric: 10 ratios (5R/5E), inch: 7 ratios (4R/3E)

Scanner

Model MX-C304W/C303W MX-C304/C303
Scan method Push scan (via control panel)
Pull scan (TWAIN-compliant application)
Scan speed*8
(colour & B/W)		 One-sided MX-C304W: Max. 70 originals/min.
MX-C303W: Max. 40 originals/min.		 MX-C304: Max. 70 originals/min.
MX-C303: Max. 40 originals/min.
Two-sided MX-C304W: Max. 110 originals/min. MX-C304: Max. 110 originals/min.
Resolution Push scan 100, 150, 200, 300, 400, 600 dpi
Pull scan 75, 100, 150, 200, 300, 400, 600 dpi
50 dpi to 9,600 dpi via user setting*9
File formats TIFF, PDF, PDF/A-1a*10, PDF/A-1b, encrypted PDF, compact PDF*11 *12, JPEG*11, XPS, searchable PDF*10, OOXML (docx, xlsx, pptx)*10, text (TXT [UTF-8])*10, rich text (RTF)*10
Scan destinations Scan to e-mail/desktop*13/FTP server/network folder (SMB)/USB drive/HDD

Document Filing

Model MX-C304W/C303W MX-C304/C303
Document filing capacity*14 Main and custom folders: 20,000 pages or 3,000 files
Quick file folder: 10,000 pages or 1,000 files
Stored jobs*15 Copy, print, scan, fax Copy, print, scan
Storage folders Quick file folder, main folder, custom folder (max. 1,000 folders)

Printer

Model MX-C304W/C303W MX-C304/C303
Resolution 600 x 600 dpi, 9,600 (equivalent) x 600 dpi
Interface USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 b/g/n) USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T
Supported OS Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows Server® 2019, Windows® 7, Windows® 8.1, Windows® 10,
Mac OS 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15
Network protocols TCP/IP
Printing protocols LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD
PDL PCL 6 emulation, Adobe® PostScript® 3™
Available fonts 80 fonts for PCL, 139 fonts for Adobe® PostScript® 3™

Facsimile

Model MX-C304W/C303W MX-C304/C303
Compression method MH/MR/MMR/JBIG –
Communication protocol Super G3/G3 –
Transmission time Less than 3 seconds*16 –
Modem speed 33,600 bps to 2,400 bps with automatic fallback –
Transmission resolution From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) –
Recording size A4 to A5 (8 1/2″ x 14″ to 5 1/2″ x 8 1/2″) –
Memory 1 GB (built-in) –
Greyscale levels Equivalent to 256 levels –
