15.4-Inch Colour LCD Touchscreen
A large, high-resolution touchscreen provides an easy-to-use graphical interface featuring a clean design, simplified Easy UI mode, and integrated operation guide. For easy viewing at the desired angle, the control panel can be tilted front to back and side to side, and the panel’s support arm can be rotated.
Fiery® Print Server
Paired with an industry-leading EFI™ Fiery print server, the MX7090/8090N becomes a powerful integrated solution for managing professional in-plant and busy on-demand printing environments. Two options are available to match your needs: the multifunctional MX-PE13 external server, or the more affordable basic MX-PE14 embedded server.

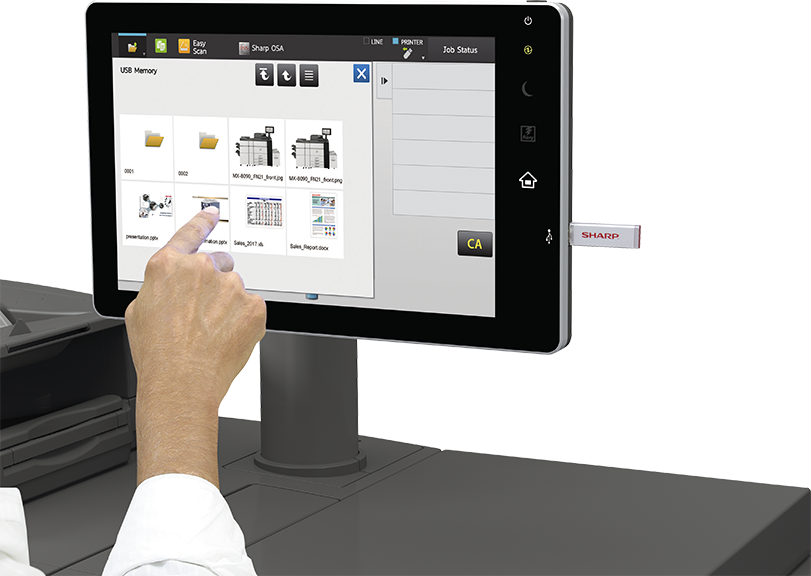

Direct Printing/Scanning
Insert a USB drive into the MX7090/8090N and a print/scan command screen will automatically pop up on the LCD. Right away you can print files from the USB drive—which are displayed as thumbnails—or you can scan documents directly to the USB drive.
Paper Setting Registration
The MX7090/8090N’s Paper Setting Registration function allows instant recall of pre-registered media profiles. It stores up to 1,000 media profiles that include front-to-back registration settings, data on fusing temperature, and data on the type and weight of paper used.
Link to Cloud Services*
An MX7090/8090N doesn’t just connect to your local server. It also connects with cloud services directly from the MFD’s control panel. You can upload scanned data to Google Drive, Box, OneDrive for business, or SharePoint Online—or print directly from any of them. *MXAMX2 is required.
Link with Mail Servers
Scanned data can be conveniently sent via your regular Gmail™ or Microsoft Exchange/Online account. Sending e-mail is as easy as choosing a recipient from your address book on the mail server.
| Type | Console | |
|---|---|---|
| Engine speed | A4 (8 1/2″ x 11″)*1 | Max. 80/70 ppm |
| A3 (11″ x 17″) | Max. 45/41 ppm | |
| SRA3 | Max. 43/39 ppm | |
| Control panel display | 15.4-inch colour LCD touchscreen | |
| Paper size | Max. SRA3/A3 wide (13″ x 19″), min. A5 (5 1/2″ x 8 1/2″)*2 | |
| Paper capacity (80 g/m2) |
Standard | 3,100*3 sheets (1,200-sheet tray, 800-sheet tray, 500-sheet tray x 2, and optional 100-sheet multi-bypass tray) |
| Maximum | 13,500 sheets (3,000 sheets and optional 2 x 2,500-sheet tray x 2 and 500-sheet multi-bypass tray) |
|
| Paper weight | Tray 1&2 | 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond) |
| Tray 3&4 | 60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover) | |
| Multi-bypass tray (MX-MF10) |
55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | |
| Multi-bypass tray (MX-MF11) |
55 g/m2 to 220 g/m2 (13 lbs bond to 80 lbs cover) | |
| Large capacity tray (MX-LC12, MX-LCX3 N) |
60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover) | |
| Large capacity trays (MX-LC13 N) |
55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | |
| Warm-up time*4 | 90 sec. | |
| Memory | 6 GB (copy/print shared) 1 TB HDD*5 | |
| Power requirements | AC 220 V to 240 V, 8 A, 50/60 Hz (10 A plug x 2) | |
| Power consumption | Max. 3.84 kW (220 V to 240 V) | |
| Dimensions (W x D x H)*6 | 982 x 768 x 1,530 mm (38 43/64″ x 30 1/4″ x 60 1/4″) | |
| Weight (approx.) | 224 kg (493.9 lbs) | |
| Original paper size | Max. A3 (11″ x 17″) | |
|---|---|---|
| First copy time*7 | Full colour: 5.1/5.6 sec. B/W: 3.7/4.0 sec. | |
| Continuous copy | Max. 9,999 copies | |
| Resolution | Scan (colour) | 600 x 600 dpi |
| Scan (B/W) | 600 x 600 dpi, 600 x 400 dpi | |
| Print (colour) | 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) |
|
| Print (B/W) | 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) |
|
| Gradation | Equivalent to 256 levels | |
| Zoom range | 25% to 400% (25% to 200% using DSPF) in 1% increments | |
| Preset copy ratios | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) | |
| Scan method | Push scan (via control panel) Pull scan (TWAIN-compliant application) |
|
|---|---|---|
| Scan speed*8 (colour & B/W) |
One-sided | Max. 100 originals/min. |
| Two-sided | Max. 200 originals/min. | |
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting*9 |
|
| File formats | TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, compact PDF*10, JPEG*10, XPS, searchable PDF, OOXML (docx, xlsx, pptx), text (TXT [UTF-8]), rich text (RTF) | |
| Scan destinations | Scan to e-mail/FTP server/network folder (SMB)/USB drive/HDD | |
| Document filing capacity*11 | Main and custom folders: 35,000 pages or 5,000 files |
|---|---|
| Quick file folder: 10,000 pages or 1,000 files | |
| Stored jobs | Copy, print, scan |
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) |
| Confidential storage | Password protection (for main and custom folders) |
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi |
|---|---|
| Interface | USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Supported OS | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022,Windows 7, Windows 8.1, Windows 10, Windows 11 Mac OS 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12 |
| Network protocols | TCP/IP |
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD |
| PDL | PCL 6 emulation, Adobe PostScript 3 |
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 |
| MX-PE13 | MX-PE14 | |
|---|---|---|
| Type | External server | Embedded server |
| Interface kit | MX-PX13 | MX-PX12 |
| System software | Fiery FS300 Pro | Fiery FS300 |
| Operating system | Windows 10 | Linux |
| CPU | Intel® Core™ i5-4570, 3.6 GHz | Intel Celeron® G1820, 2.7 GHz |
| Memory | 4 GB RAM, 1 TB HDD | 2 GB RAM, 500 GB HDD |
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi (PS, PCL) | |
| Supported OS | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows 7, Windows 8.1, Windows 10, Windows 11 Mac OS 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12 |
|
| Network protocols | TCP/IP, LDAP, iPrint thru LPR | |
| Interface | Gigabit Ethernet | |
| Printing protocols | LPD, PAP, SMB, port 9100, IPP 1.1, FTP printing, print via e-mail, WSD | |
| PDL | Adobe PostScript 3 | |
| Available fonts | 138 fonts for Adobe PostScript 3 | |
| Power requirements | AC 100 V to 240 V, 50/60 Hz | |
| Power consumption | Max. 0.35 kW | Max. 0.18 kW |
| Dimensions (W x D x H) | 235 x 464 x 528 mm (9 17/64″ x 18 9/32″ x 20 51/64″) |
90 x 272 x 297 mm (3 35/64″ x 10 23/32″ x 11 45/64″) |
| Weight (approx.) | 17 kg (37.5 lbs) | 6 kg (13.3 lbs) |
Not sure which machine is right for you? Our sales team has an in-depth understanding of the capabilities of our machines and can guide you in selecting the copier or printer that suits your business needs. Book an obligation-free consultation with us and let us walk you through the options.
