| Model | MX-8081 | MX-7081 | ||
|---|---|---|---|---|
| Type | Console | |||
| Engine speed | A4 (8 1/2″ x 11″)*1 | Colour max. 80 ppm B/W max. 80 |
Colour max. 70 ppm B/W max. 75 |
|
| A3 (11″ x 17″) | Max. 37 ppm | Max. 34 ppm | ||
| SRA3 | Max. 35 ppm | Max. 33 ppm | ||

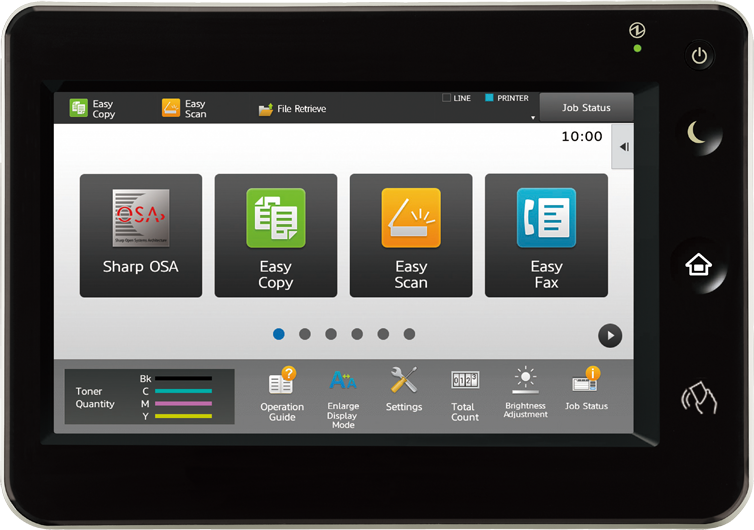

| Control panel display | 10.1-inch colour LCD touchscreen | |||
| Paper size | Max. SRA3/A3W (13″ x 19″), min. A5 (5 1/2″ x 8 1/2″)*2 | |||
| Paper capacity (80 g/m2) |
Standard | 3,100 sheets (1,200-sheet tray, 800-sheet tray, 500-sheet tray x 2, and 100-sheet multi bypass tray) |
||
| Maximum | 8,500 sheets (3,000 sheets & optional 2 x 2,500-sheet tray and 500-sheet multi bypass tray) |
|||
| Paper weight | Tray 1&2 | 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond) | ||
| Tray 3&4 | 60 g/m2 to 300 g/m2 (16 lbs bond to 110 lbs cover) | |||
| Multi bypass tray | Standard | 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | ||
| MX-MF11 | 55 g/m2 to 220 g/m2 (13 lbs bond to 80 lbs cover) | |||
| Large capacity tray | MX-LC12/ LCX3 N |
60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover) | ||
| MX-LC13 N | 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | |||
| Warm-up time*3 | 55 sec.*4 | |||
| Memory | 6 GB (copy/print shared) 1 TB HDD*5 | |||
| Power requirements | AC 220 V to 240 V, 8 A, 50/60 Hz (10 A plug x 2) | |||
| Power consumption (max.) | Max. 3.84 kW (220 V to 240 V) | |||
| Dimensions (W x D x H)*6 | 845 x 844 x 1,249 mm (33 9/32″ x 33 15/64″ x 49 3/16″) | |||
| Weight (approx.) | 209 kg (460.8 lbs) | |||
| Model | MX-8081 | MX-7081 | |
|---|---|---|---|
| Original paper size | Max. A3 (11″ x 17″) | ||
| First copy time*7 | Full colour: 5.1 sec. B/W: 3.7 sec. | Full colour: 5.6 sec. B/W: 4.0 sec. | |
| Continuous copy | Max. 9,999 copies | ||
| Resolution | Scan (colour) | 600 x 600 dpi | |
| Scan (B/W) | 600 x 600 dpi, 600 x 400 dpi | ||
| Print (colour) | 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) | ||
| Print (B/W) | 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) |
||
| Gradation | Equivalent to 256 levels | ||
| Zoom range | 25% to 400% (25% to 200% using DSPF) in 1% increments | ||
| Preset copy ratios | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) | ||
| Model | MX-8081 | MX-7081 | |
|---|---|---|---|
| Scan method | Push scan (via control panel) Pull scan (TWAIN-compliant application) |
||
| Scan speed*8 | colour & B/W | One-sided: Max. 120 originals/min. Two-sided: Max. 240 originals/min. |
|
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi | |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting*9 |
||
| File formats | TIFF, PDF, PDF/A-1a, PDF/A-1b, encrypted PDF, XPS, compact PDF*10, JPEG*10, searchable PDF, OOXML(pptx, xlsx, docx), text (TXT [UTF-8]), rich text (RTF) | ||
| Scan destinations | Scan to e-mail/desktop*11/FTP server/network folder (SMB)/USB drive/local drive | ||
| Model | MX-8081 | MX-7081 |
|---|---|---|
| Document filing capacity*12 | Main and custom folders: 35,000 pages or 5,000 files | |
| Quick file folder: 10,000 pages or 1,000 files | ||
| Stored jobs*13 | Copy, print, scan, fax | |
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) | |
| Model | MX-8081 | MX-7081 |
|---|---|---|
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi | |
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 b/g/n)*14 | |
| Supported OS | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, Windows 8.1, Windows 10, Windows 11 Mac OS 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12 |
|
| Network protocols | TCP/IP | |
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD | |
| PDL | PCL 6 emulation, Adobe® PostScript® 3™ | |
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 | |
| Model | MX-8081 | MX-7081 |
|---|---|---|
| Type | Embedded server | |
| System software | Fiery FS400 | |
| Operating system | Linux | |
| CPU | Intel® Pentium® G4400, 3.3 GHz | |
| Memory | 4 GB RAM 500 GB HDD | |
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi (PS, PCL) | |
| Supported OS | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019,Windows Server 2022, Windows 8.1, Windows 10, Windows 11 Mac OS 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12 |
|
| Network protocols | TCP/IP, LDAP, iPrint thru LPR | |
| Interface | Gigabit Ethernet | |
| Printing protocols | LPD, PAP, SMB, port 9100, IPP 1.1, FTP printing, e-mail print, WSD | |
| PDL | Adobe® PostScript® 3™ | |
| Available fonts | 138 fonts for Adobe PostScript 3 | |
| Power requirements | AC 100 V to 240 V, 50/60 HZ | |
| Power consumption | Max. 0.15 kW | |
| Dimensions (W x D x H) | 271.5 x 296.9 x 89.4 mm (10 45/64″ x 11 45/64″ x 3 17/32″) | |
| Weight (approx.) | 5.6 kg (12.3 lbs) | |
| Model | MX-8081 | MX-7081 |
|---|---|---|
| Compression method | MH/MR/MMR/JBIG | |
| Communication protocol | Super G3/G3 | |
| Transmission time | Less than 3 seconds*15 | |
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback | |
| Transmission resolution | From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) | |
| Recording size | A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″) | |
| Memory | 1 GB (built-in) | |
| Greyscale levels | Equivalent to 256 levels | |
