Reliable productivity from start to finish

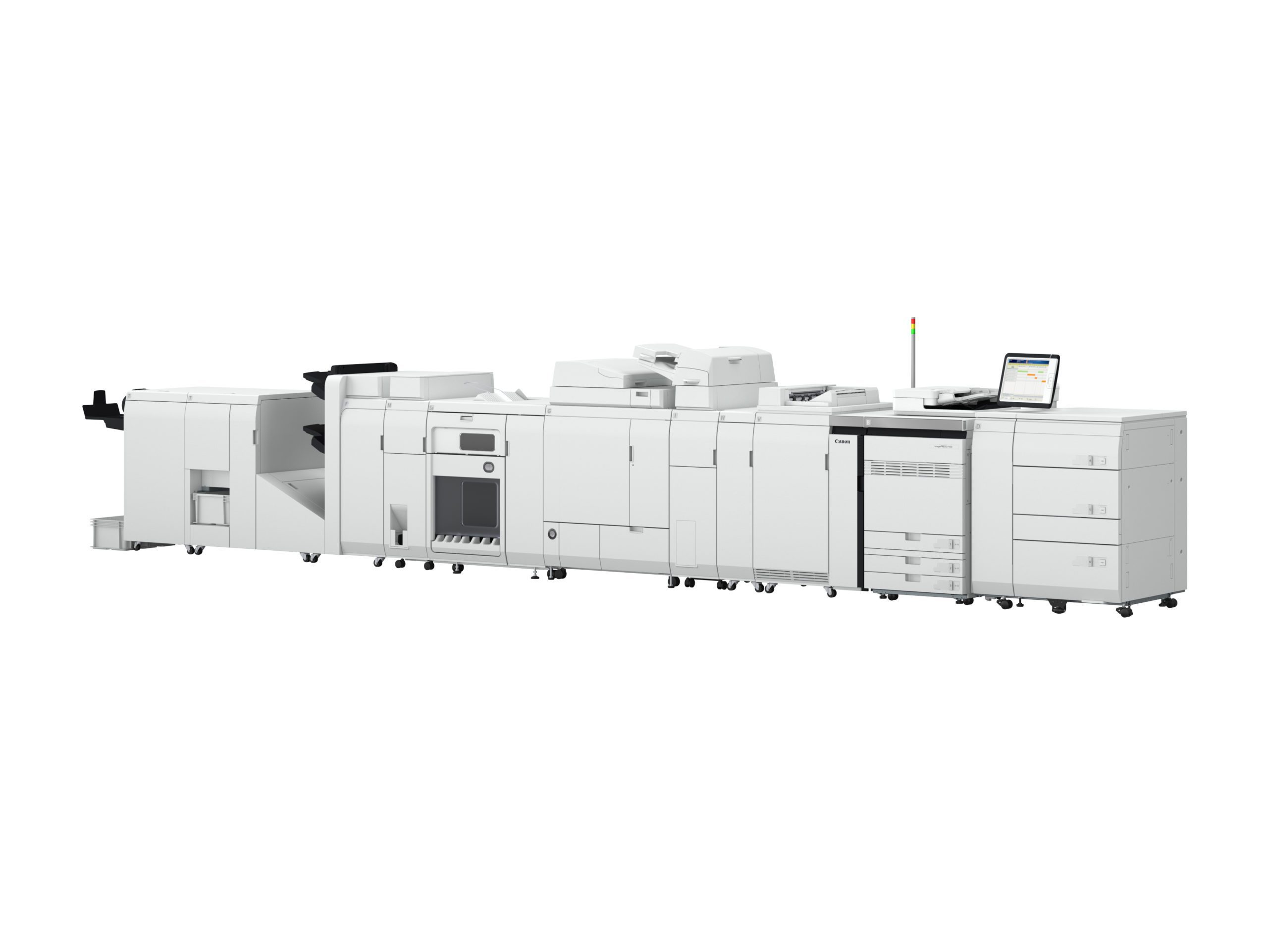

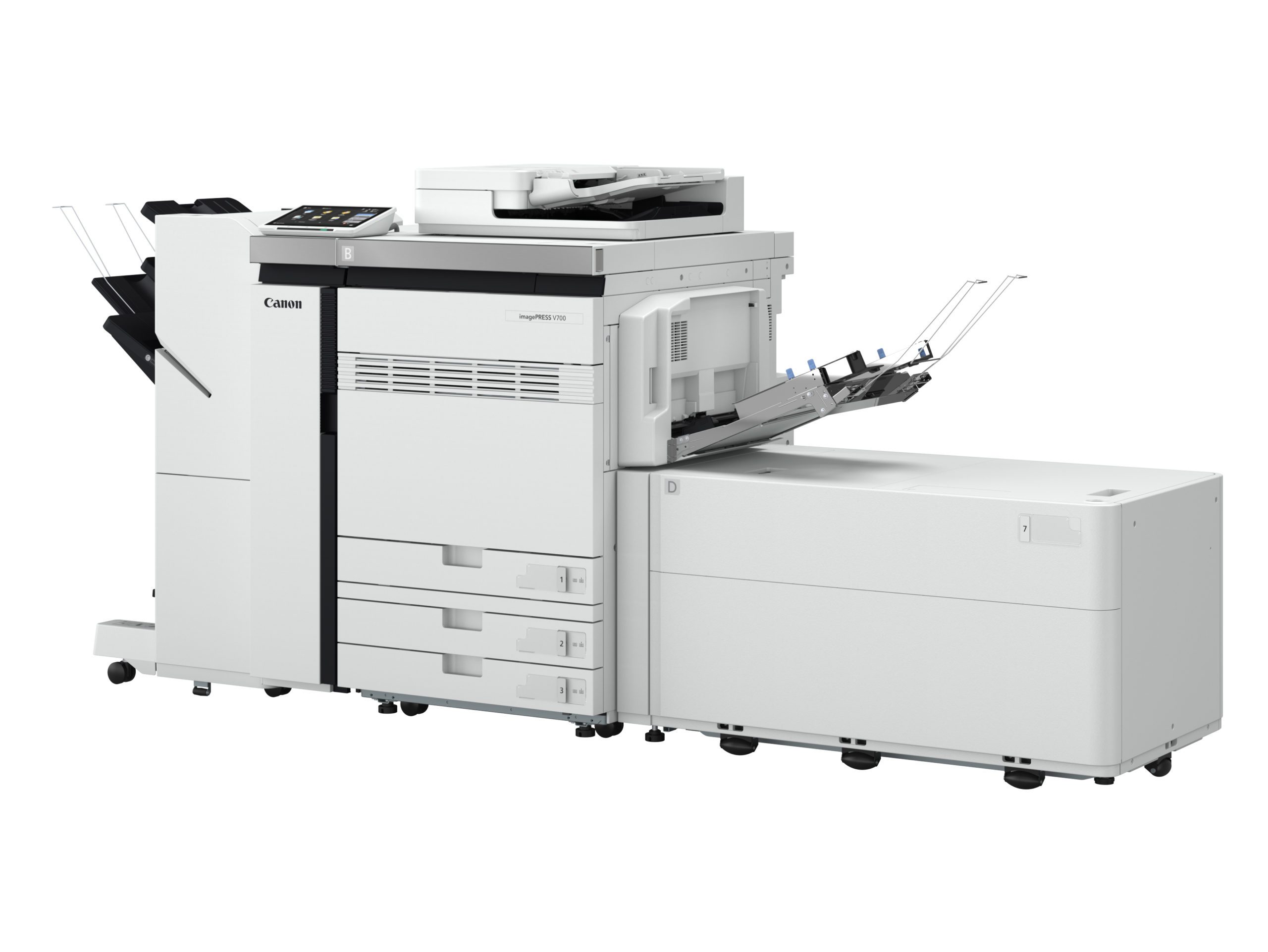

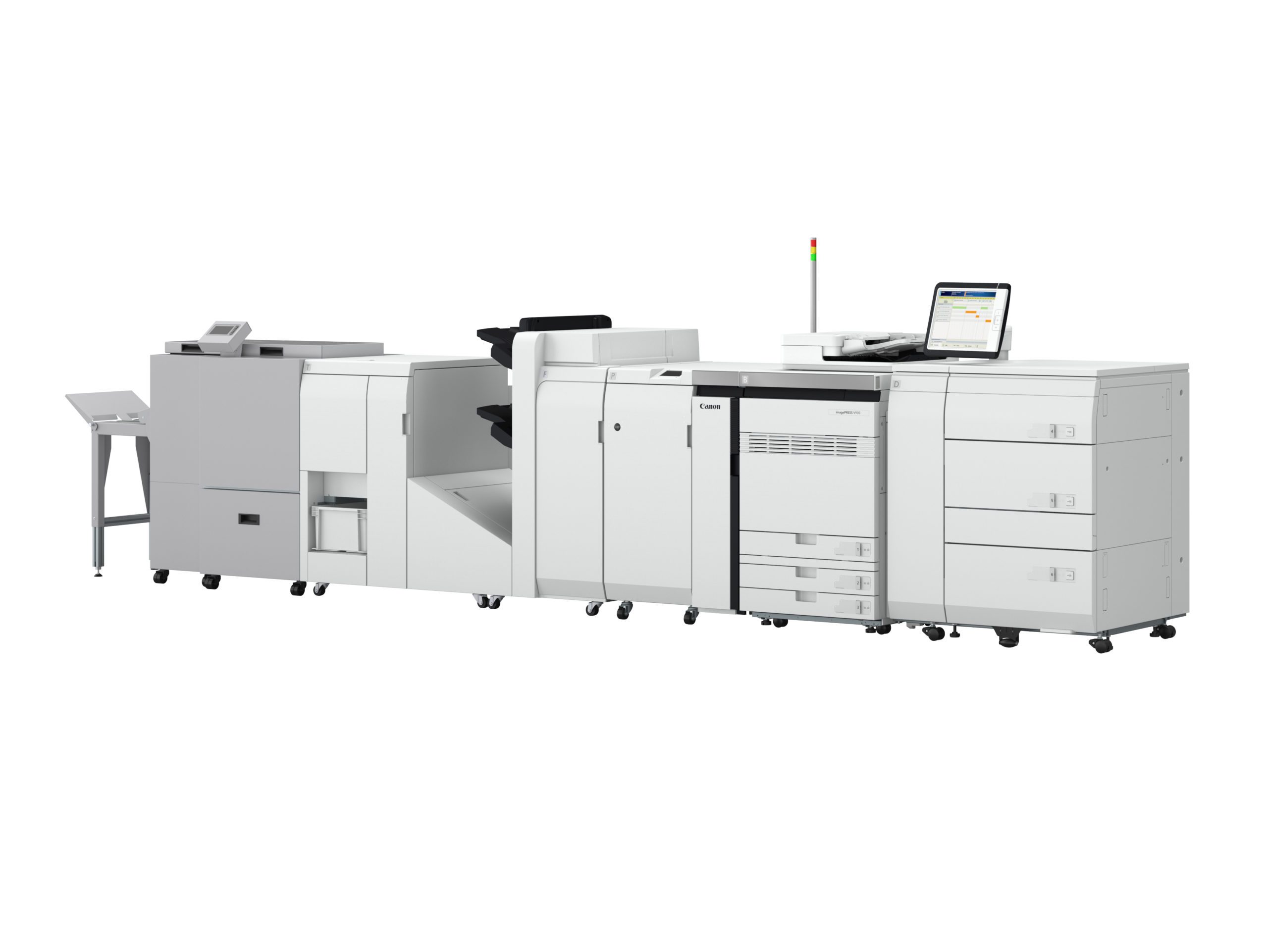

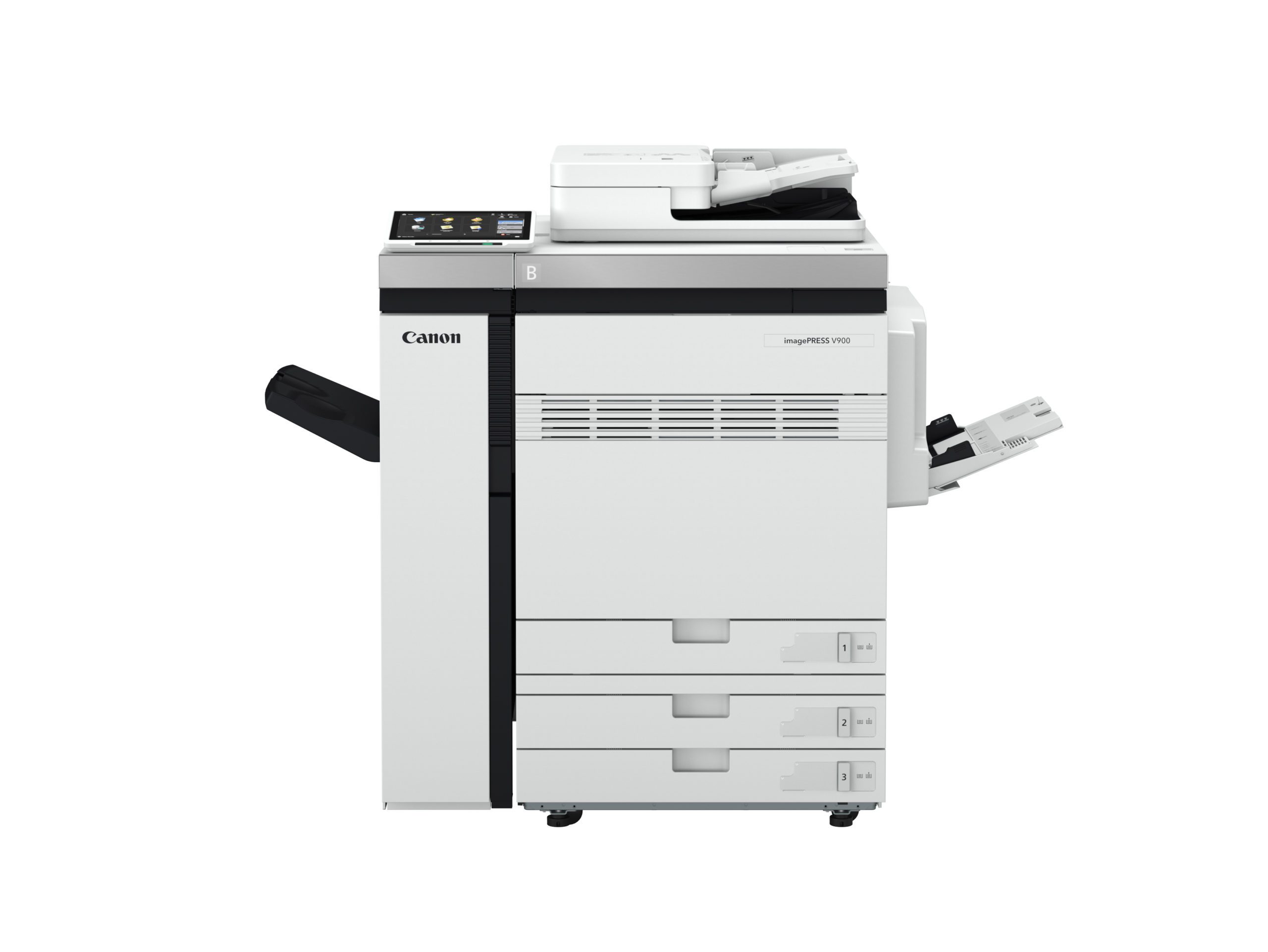

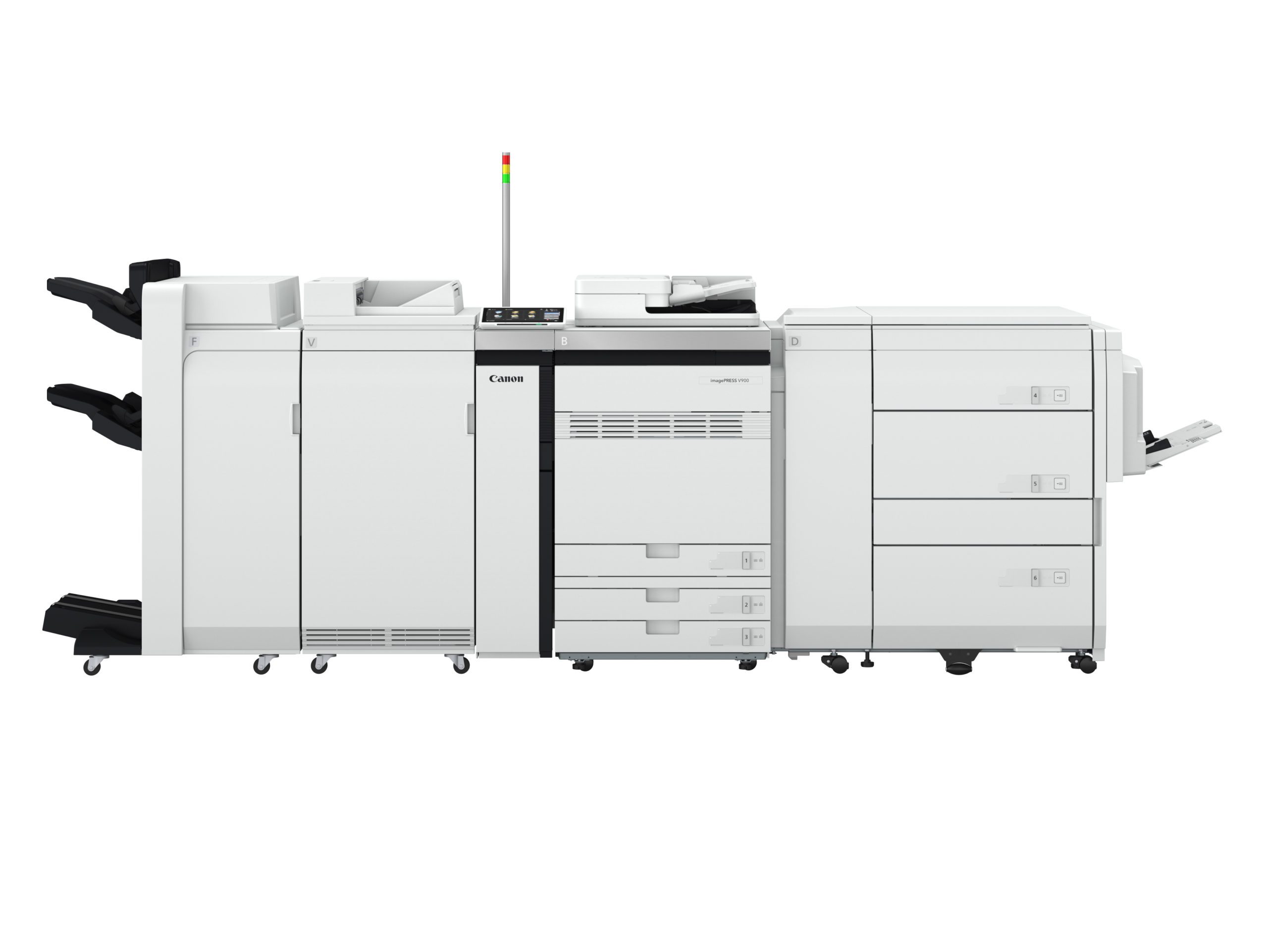

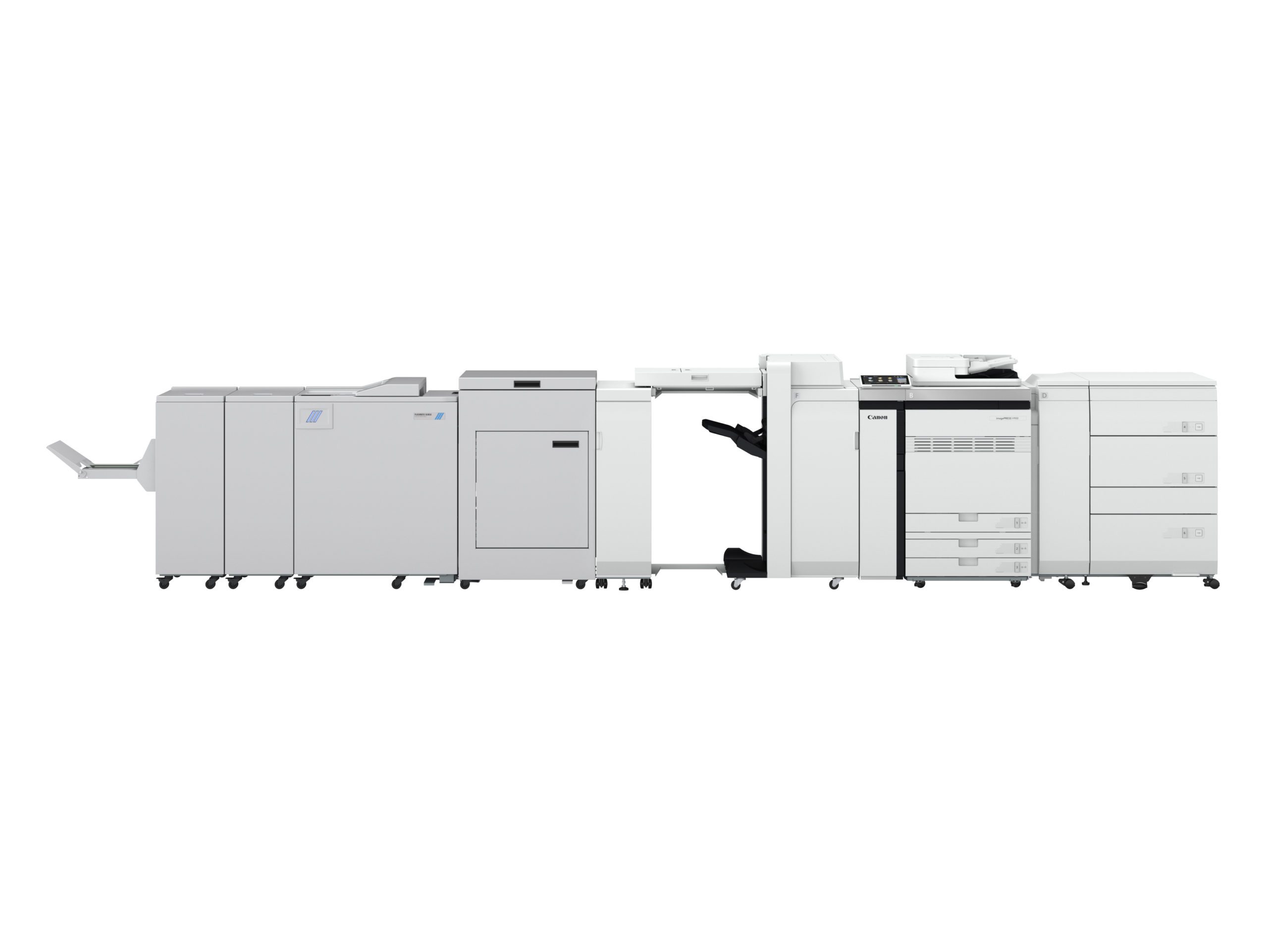

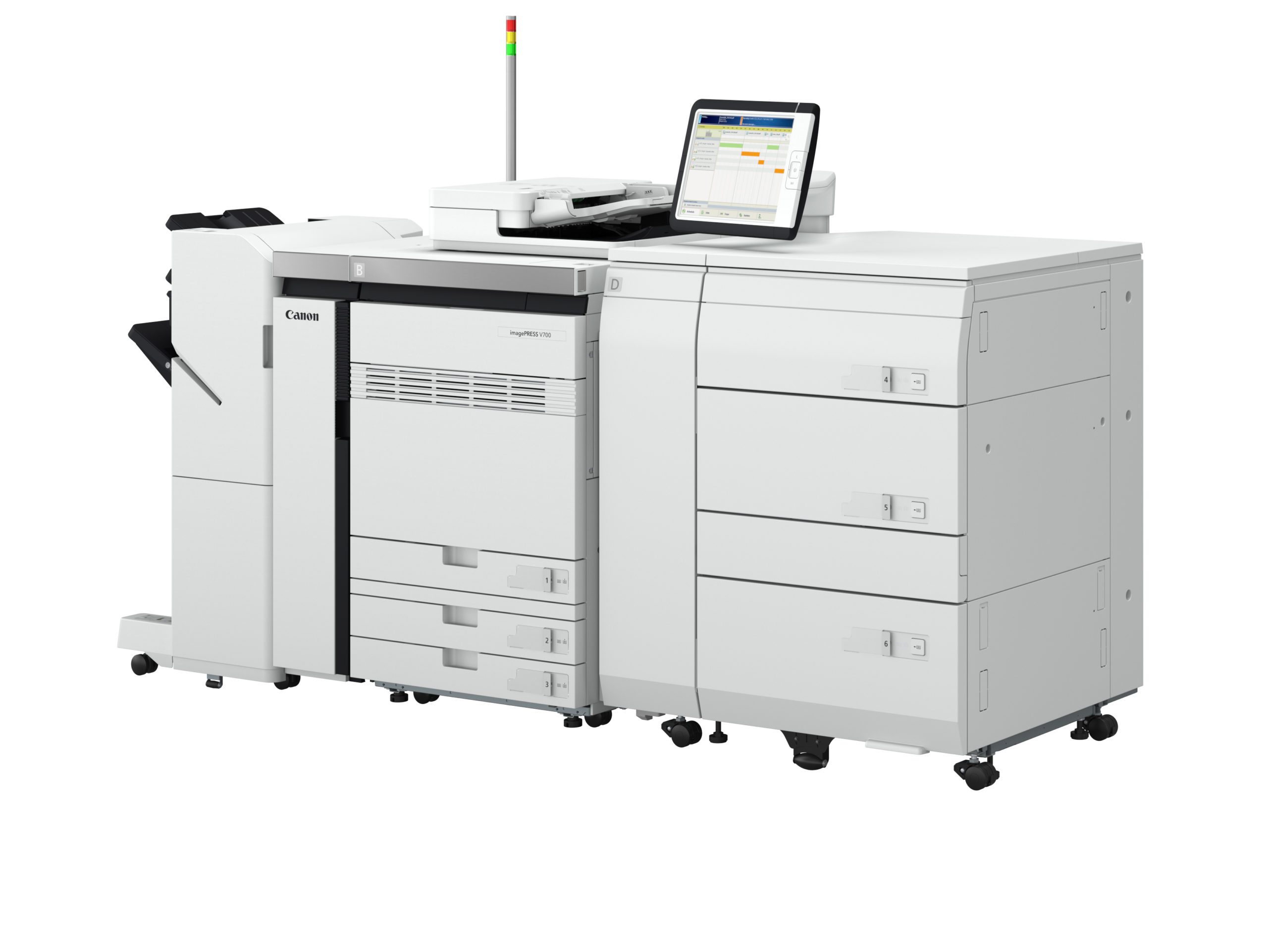

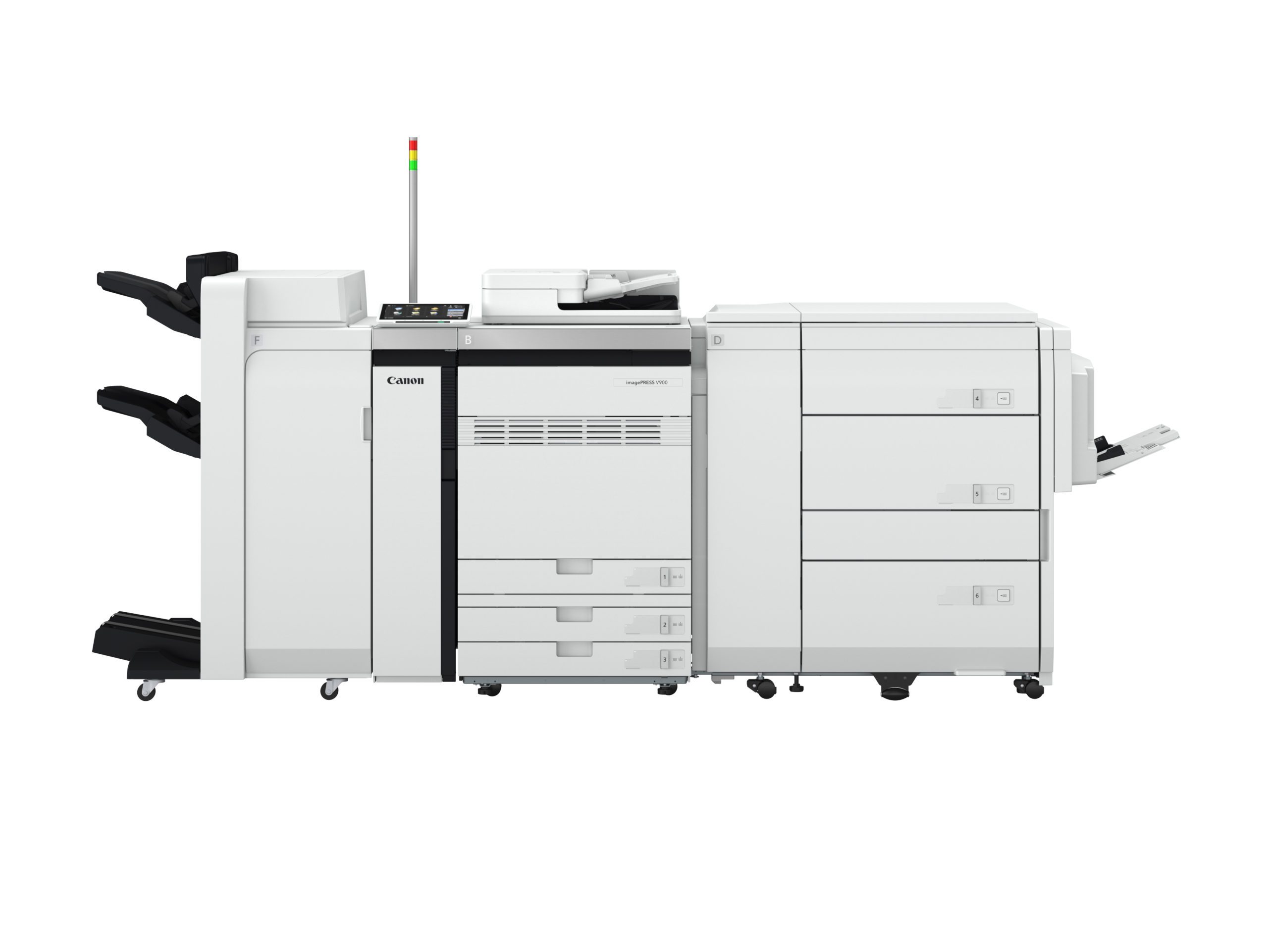

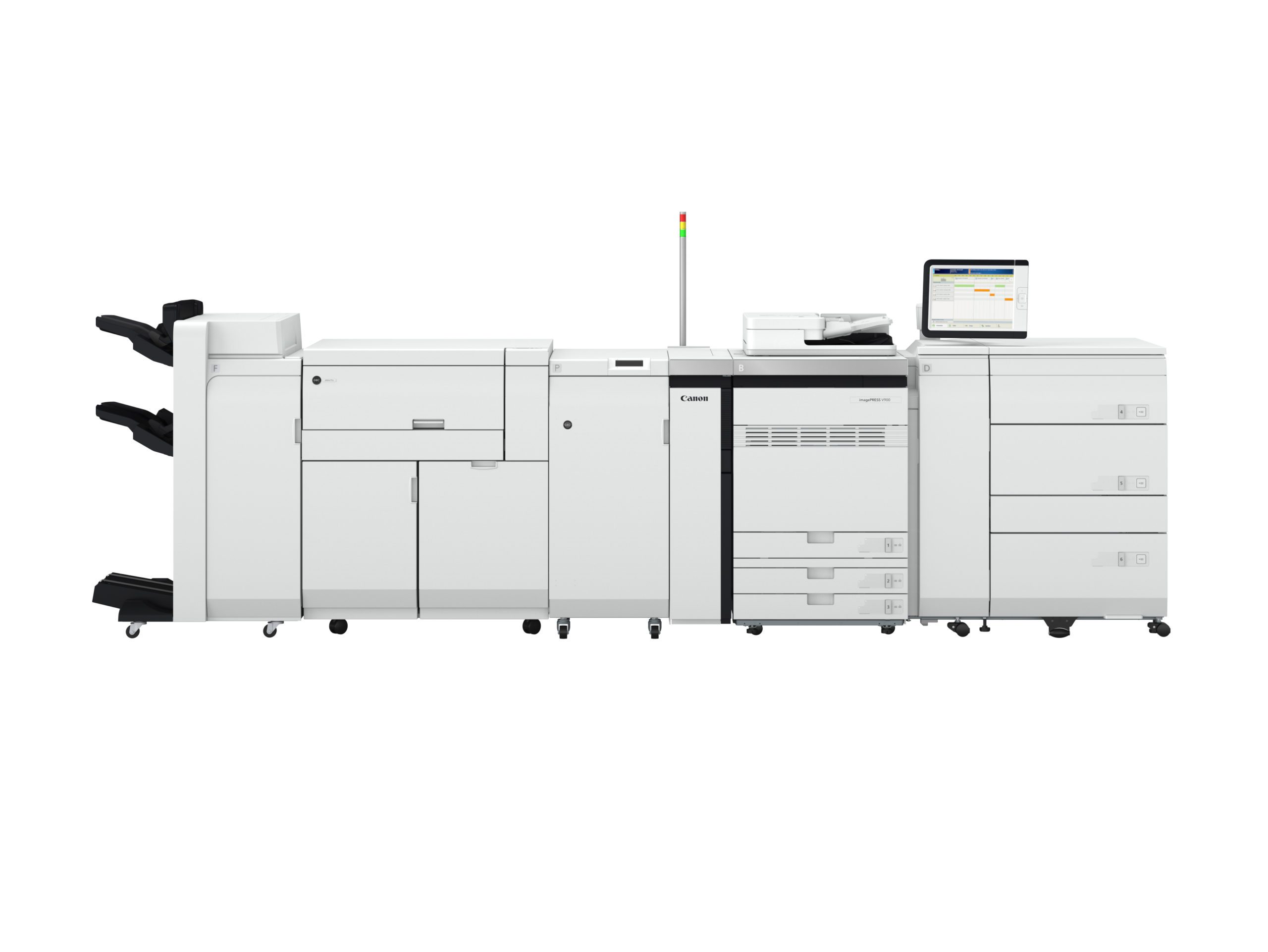

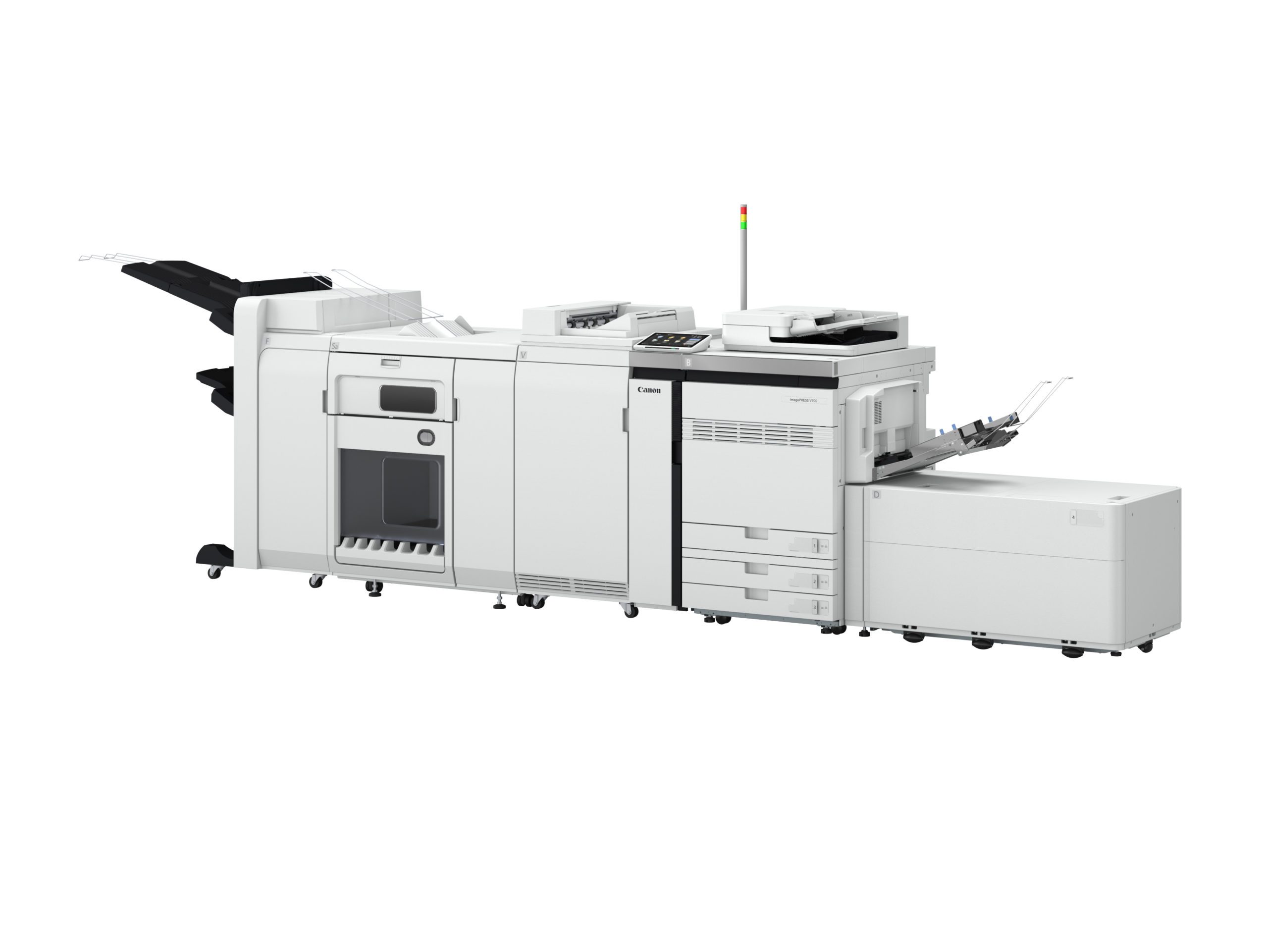

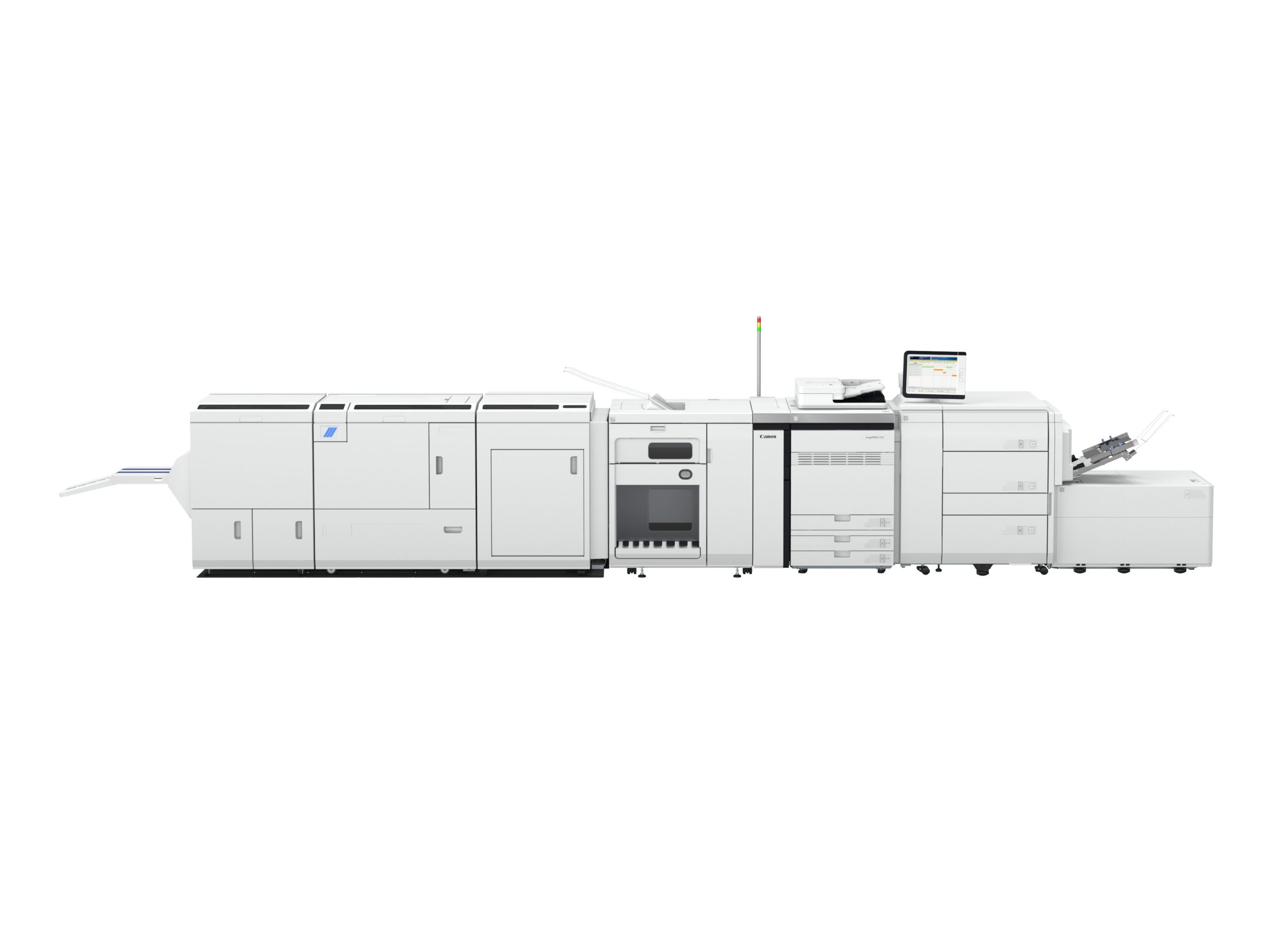

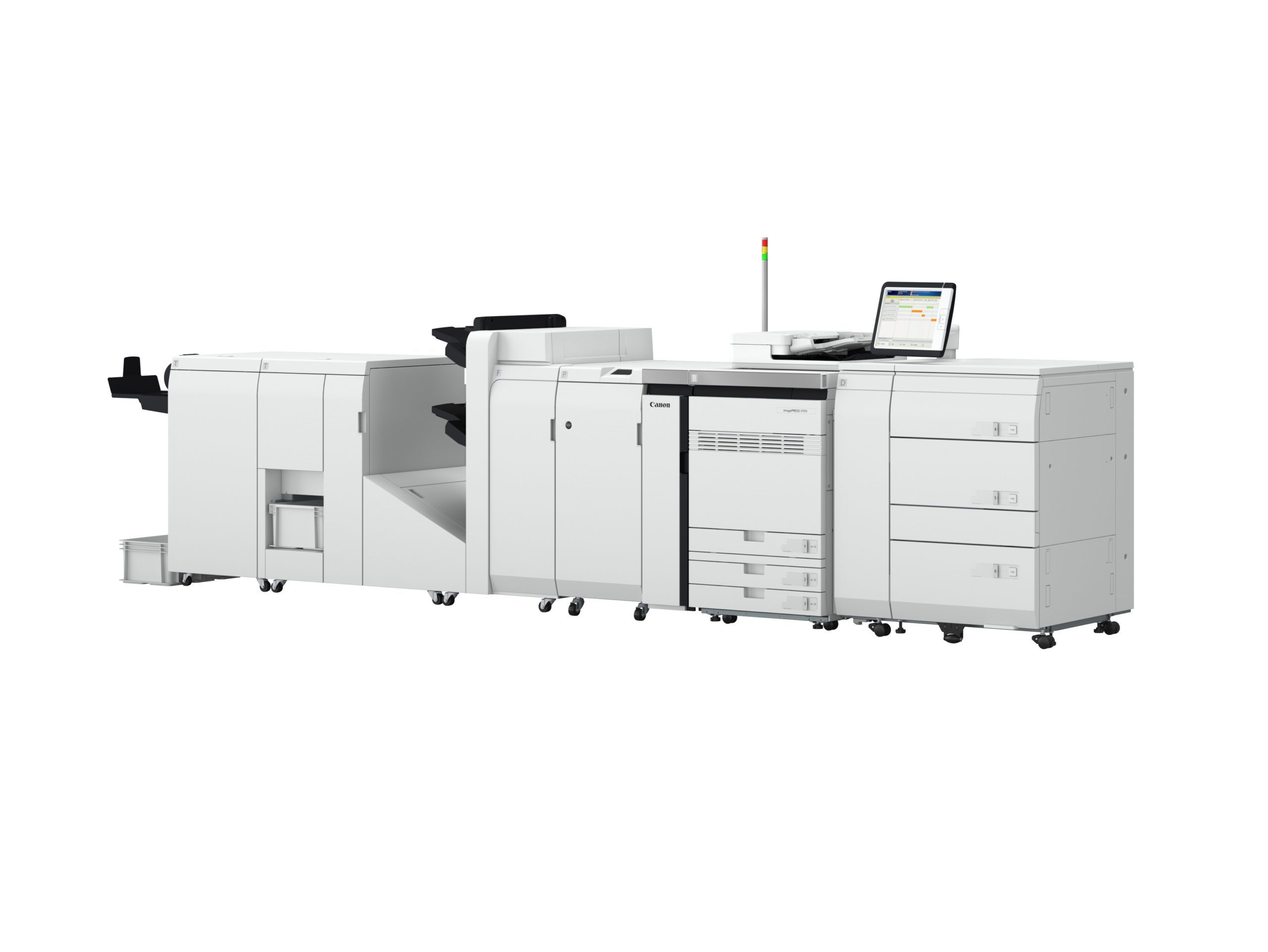

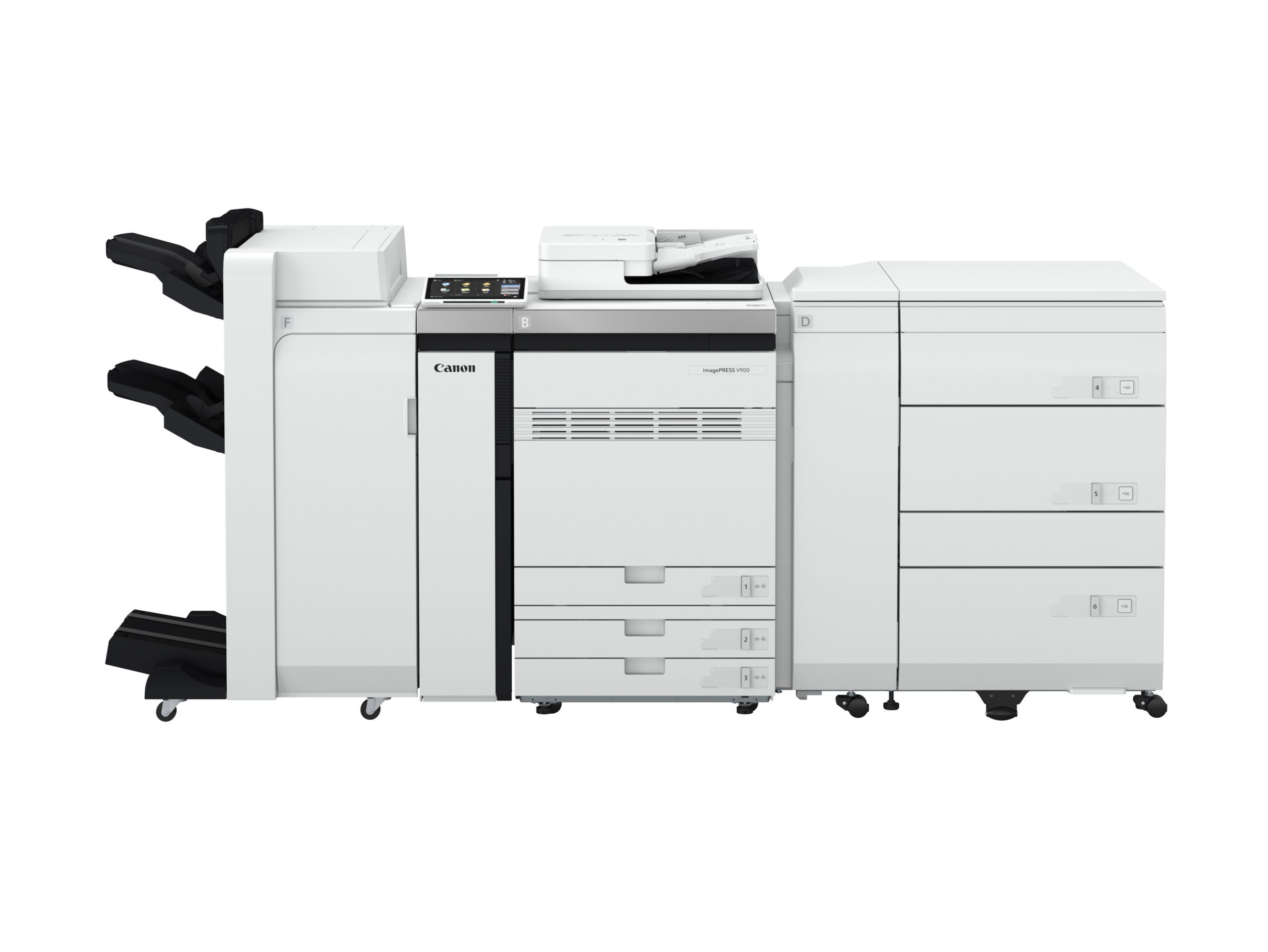

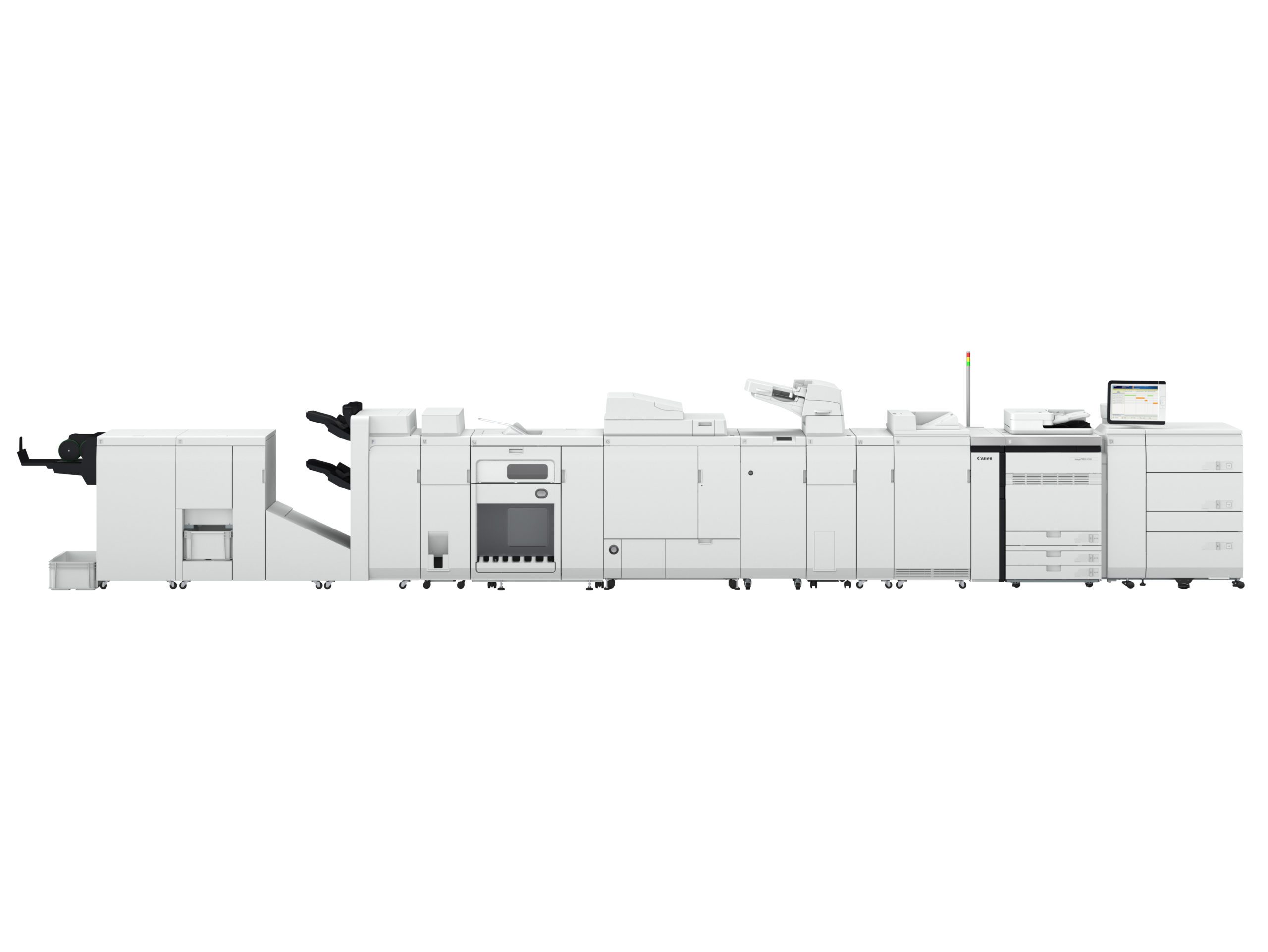

Poor productivity can cost you jobs and potentially customers. With a monthly duty cycle of 500,000 A4 pages, the imagePRESS V900 series comes in three versions, the V900, V800 and V700, which print at respective maximum speeds of 90ppm, 80ppm and 70ppm configuration.
Productivity is enhanced thanks to
Taking the pain out of quality control
Quality is critical, but so is time, so the less time the operator spends checking that the sheets are to the specification, the better. While high print quality is a given for the imagePRESS V900 series, you can also expect that quality will be maintained from the first to the last sheet of every job, whatever the run length. Feel confident that it will hit the mark without the need for constant supervision from a skilled operator. Standard features in the V900 and optional technology ensure this happens.
| Machine Type | Digital colour cut-sheet press |
| Core Functions | Print, Copy, Scan, Send, Store |
| Processor Speed | 1.8 GHz Dual Core |
| Control Panel | 10.1 inch WSVGA |
| Memory | 6 GB |
| Storage | SSD 512 GB |
| Interface Connection | Standard: 1000Base-T/100Base-TX/10Base-T |
| Paper Input (Standard) | Standard: 1,650 sheets 550-sheet Paper Cassette x 3 |
| Paper Supply Capacity (A4, 80 gsm) | 10,400 sheets |
| Finishing Capabilities | Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch (multiple patterns), Document Insertion, Fold (C-, Z-, Half, Double parallel, Accordion-Z fold), Trimming |
| Supported Media Types | Thin (52-63 gsm), Plain (64-105 gsm), Recycled, Color, Thick (106-350 gsm), Coated (70-350 gsm), Embossed, Bond, Transparency, Label, Pre Punched, Letterhead, Index, Transparent film, Translucent film, Envelope, Synthetic, Magnetic |
| Supported Media Sizes | A3S, B4S, A4L, A4S, B5S, B5L, A5S, A5L, A6S, SRA3S, 11”x17”S, LGLS, LTRL, LTRS, EXE_L, STMTS, 12”x18”S, 13”x19”S, 8KS, 16KL, 16KS, Envelope, Custom size (Cross track: 100~330.2 mm, In track: 148~487.7 mm). Free size (Cross track 100.0~330.2 mm, In track: 182.0~487.7 mm): 1300 mm |
| Supported Media Weights | 52-350 gsm |
| Dimensions (W x D x H) | 1,327 mm x 872 mm x 1,185 mm |
| Weight | Approx. 284 kg |
| Printing Method | Colour Laser Beam Printing |
| Print Speed | V900: 90 ppm V800: 80 ppm V700: 70 ppm |
| Print Resolution (dpi) | 2,400 x 2,400 dpi |
| Page Description Languages | PS3, PCL6, UFRII |
| Copy Speed | V900: 90 ppm V800: 80 ppm V700: 70 ppm |
| First-Copy-Out Time | BW 7.4 seconds or less CL 8.2 seconds or less |
| Copy Resolution (dpi) | 600 dpi x 600 dpi, 600 dpi x 300 dpi, 300 dpi x 300 dpi |
| Multiple Copies | Up to 9,999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | 25% – 400% (1% Increments) |
| Preset Reductions | 25%, 50%, 70% |
| Preset Enlargements | 141.4%, 200%, 400% |
| Basic Copy Features | Preset R/E Ratios by Area, Paper Setting, Previous Setting, Favourite Setting, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel |
| Special Copy Features | Book to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Print on Tab, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Detect Feeder Multi Sheet Feed, Free Size Original |

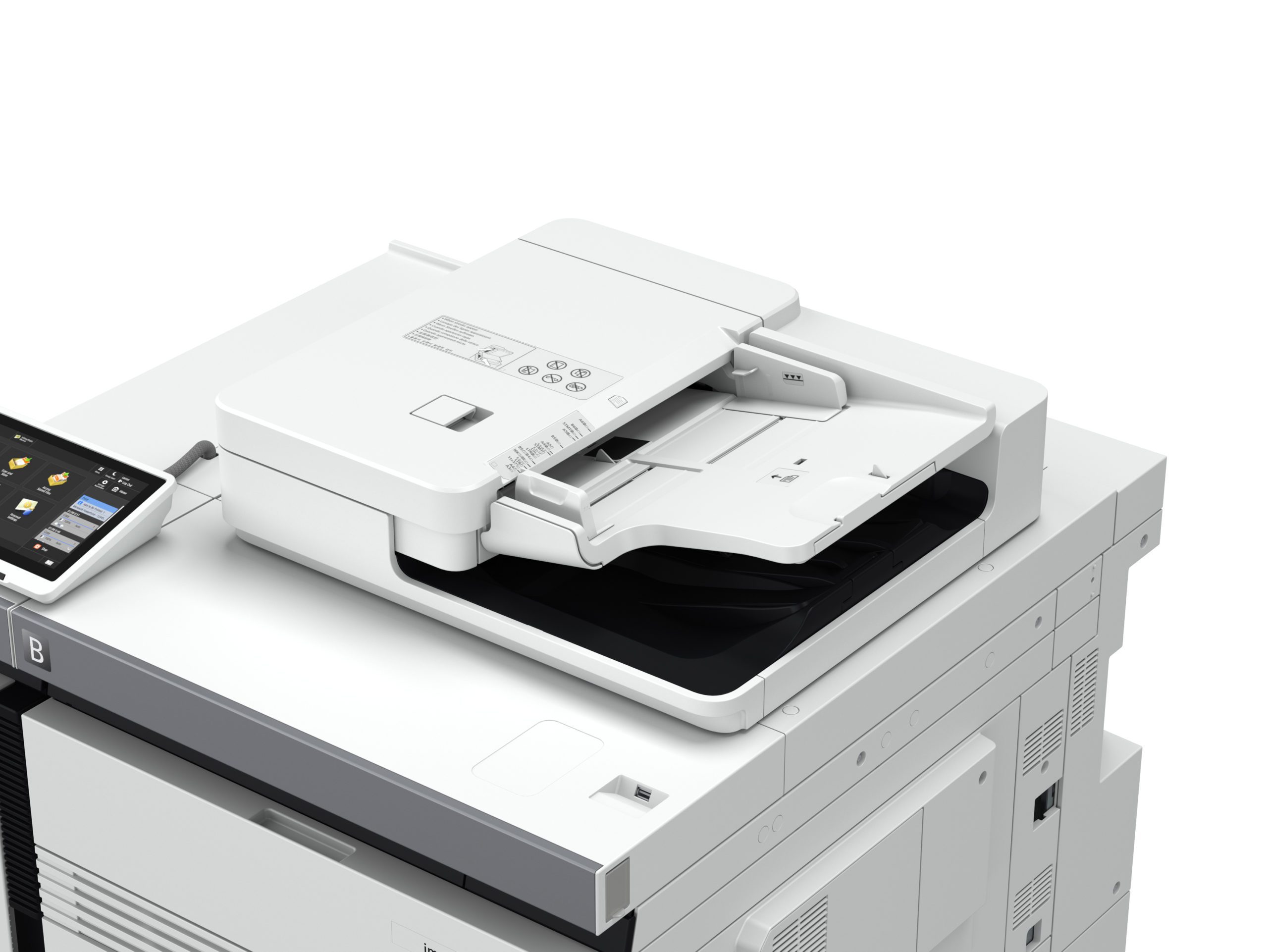

| Type | Colour Platen and Single-pass Duplexing Automatic Document Feeder |
| Document Feeder Paper Capacity (80 gsm) | 200 sheets |
| Acceptable Originals/Weights | Sheet, Book, 3-Dimensional objects |
| Supported Media Sizes | Document Feeder media weight: 38-220 gsm (A/B) 5,6,7 50-220 gsm (inch) 8,9 38-220 gsm (A/B) 10,11,12 50-220 gsm (inch) 13,14 |
| Scan Speed | BW: 270 ipm (A4/LTR) CL: 270 ipm (A4/LTR) |
| Optional/Standard | Optional |

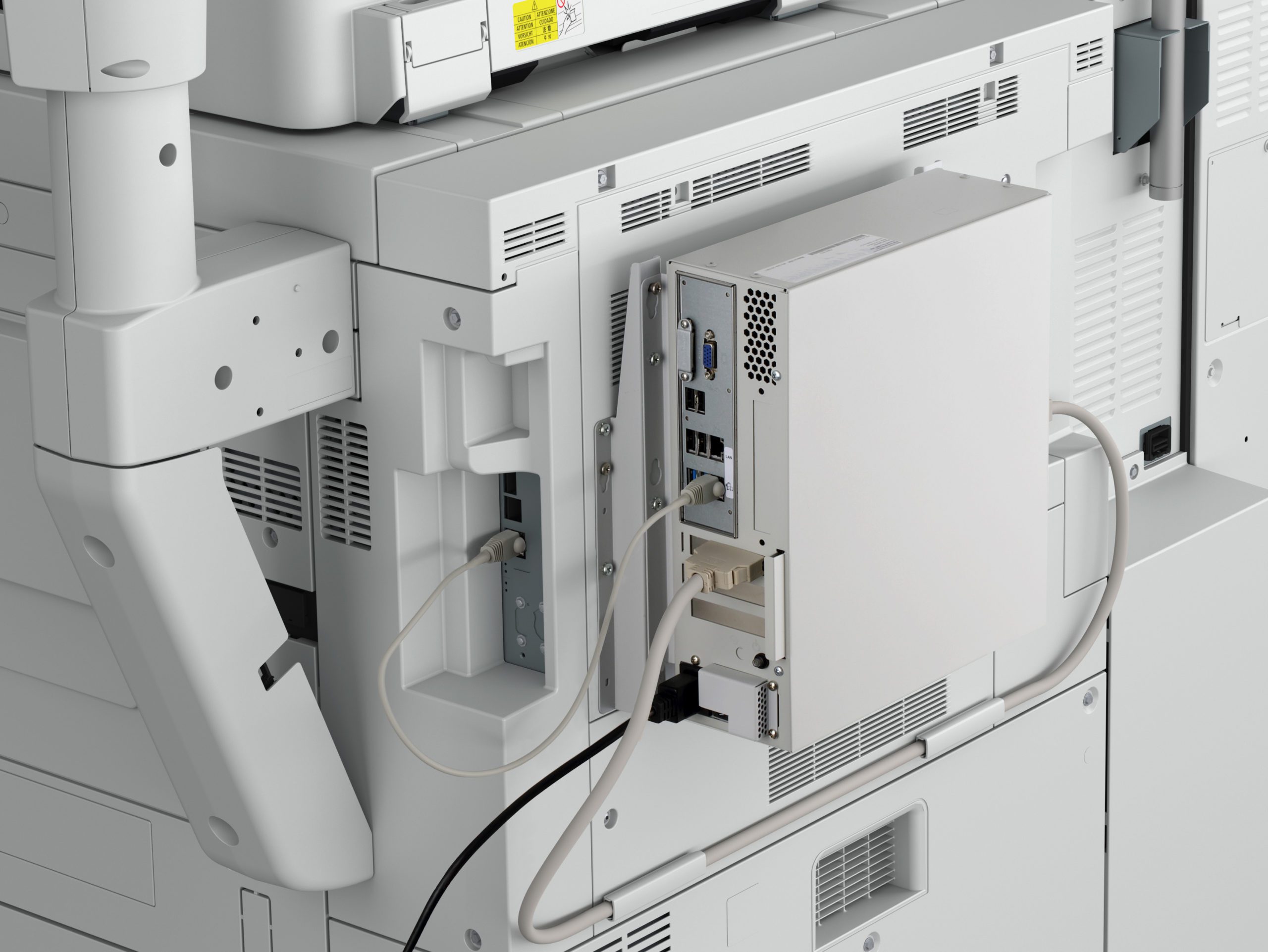

| Name | imagePRESS Server N500/P400 |
| Print Resolution (dpi) | 1200 x 1200, 600 x 600 |
| Page Description Language(s) | PS3, PCL6 |
| Memory | 8 GB |
| Hard Disk Drive | N500: HDD 1 TB SSD 240 GB P400: HDD 500 GB |
| Processor Speed | N500: Intel Core i5 8500 P400: Intel Pentium Gold G5400 |
| System | N500: FS500 Pro P400: FS500 |
| Fonts | PS: 138 PCL: 80 |
| Supported Operating Systems | Windows 8.1 32/64 Windows 10 32/64 Windows 11 64 Windows Server 2012 64 Windows Server 2012 R2 64 Windows Server 2016 64 Windows Server 2019 64 Windows Server 2022 64 MacOS Mojave (10.14.x) |
| Interface | N500: 2 x Ethernet (1000Base-T/100Base-TX/10 Base-T), USB3.2 x 5, USB2.0 x 2 P400: 2 x Ethernet (1000Base-T/100Base-TX/10 Base-T), USB3.0 x 2 |
| Network Protocols | TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port 9100, SNTP, 802.1X, DHCP, DNS, NTP) |
| Direct Print | PDF2.0, EPS, TIFF, JDF1.8/JMF |
| VDP | N500: PPML3.0, PDF/VT-1, PDF/VT2, VPS, FreeForm, FreeForm Plus P400: PDF/VT-1 (Requires Fiery JobExpert and PDF Processing Kit), FreeForm, FreeForm Plus |
| Fiery Print Controller Standard Features | Fiery Command WorkStation 6 / Paper Catalog / Fiery Remote Scan / Fiery Hot Folders & Virtual Printers |
| Fiery Print Controller Options | P400 & N500: Fiery Impose / Fiery Compose / Fiery Impose & Compose N500: Removable HDD Kit |
| HW Platform | N500: NX Pro P400: E500 |
| Optional/Standard | Optional |
| Name | PRISMAsync for iPR V900 series |
| Print Resolution (dpi) | 1200 x 1200, 600 x 600 |
| Page Description Language(s) | Postscript L3, PDF 2.0, APPE V5.7, PPML, IPDS (IS/3 standard compliant), PCL/PJL (transaction printing) |
| System | Windows Server 2012 R2, 8.1 (32/64bit) and 10, Server 2016 & 2019 MacOS 10.15 (64 bit), MacOS 11 (64 bit, Big Sur, Intel) |
| Fonts | 139 Type 1 fonts for Roman languages; User import of PS fonts via Settings Editor; Optional Adobe Asian fonts: Japanese: 5 fonts Chinese: 2 fonts for simplified Chinese, 1 font for traditional Chinese; Korean: 1 font for Korean |
| Supported Operating Systems | Windows 8.1 32/64 Windows 10 32/64 Windows 11 64 Windows Server 2012 64 Windows Server 2012 R2 64 Windows Server 2016 64 Windows Server 2019 64 Windows Server 2022 64 macOS Mojave (10.14.x) |
| Interface | Ethernet 10/100/1000 BaseT x 2 USB3.0 x8 |
| Network Protocols | TCP/IP, IPv6 Support, IPSec, NetBEUI/SMB (hotfolders, scan-to-file), secure IPP, SNMP V3, Job MIB, HTTP, HTTPS, Socket printing (port9100), LPR/LPD, JDF/JMF, LDAP, WebDav |
| Direct Print | PDF, JDF |
| VDP | PDF/VT-1, PPML |
| PRISMAsync Controller Standard Features | PS/PDF, Scheduler, Multiple Queues/hotfolders, Streaming, Accounting, Scanning, PPML, Remote Manager, Remote Service, Integrity checker, Windows 10 LTSC |
| PRISMAsync Controller Options | E-shredding, Advanced Color Management, Advanced Impose, DocBox, Page Programming, DP Link, PCL6 TP, IPDS, PDF for IPDS |
| Copy Tray | Paper Capacity: 1-side: 250 sheets (80 g/m²) 2-side: 100 sheets (80 g/m²) |
| Staple Finisher | Staple Finisher AG1 Upper Tray (A) Capacity: A4/A4R/A5R/A3/SRA3/13”x19” 1,000 sheets (52-300 gsm) / 200 sheets (301-350 gsm) Long sheet (Over 487.7 mm up to 762 mm length) 100 sheets (52-79 gsm) / 50 sheets (80-150 gsm) / 25 sheets (151-300 gsm) / 20 sheets (301-350 gsm) Lower Tray (B) Capacity: Paper Weight: 52 to 350 gsm |
| Booklet Finisher | Booklet Finisher AG1 Tray Capacity / Paper Weight / Staple Position / Staple Capacity: same as Staple Finisher-YN2A Booklet stitch paper size: A3, A4R, SRA3, 13”x19”, Free size (210 x 279.4 mm to 330.2 x 487.7 mm) Booklet stitch paper weight: Body sheet 52-220 gsm, Cover sheet 64-300 gsm Booklet stitch staple capacity: 25 sheets (52-80 gsm, include cover) Dimensions (W x D x H): 800 mm x 792 mm x 1,239 mm (with Long Sheet Tray : 1,136 mm x 792 mm x 1,239 mm) Weight: Approx. 180 kg Weight: Approx. 110 kg |
| Hole Puncher | (Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1)
Two or Four Holes |
| Inner 2/4 Hole Puncher | (Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1)
Two or Four Holes |
| Inner 4 Hole Puncher | (Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1)
Two or Four Holes |
| 2/4 Hole Puncher Unit | (Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1)
Two or Four Holes |
| 4 Hole Puncher Unit | (Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1)
Two or Four Holes |
| Staple Cartridge | STAPLE-N1 – for Stapling (3 x 5,000 pcs) (for Staple Finisher-AG1 and Booklet Finisher-AG1) STAPLE-P1 – for Saddle Stitching (2 x 5,000 pcs) (for Booklet Finisher-AG1) STAPLE CARTRIDGE-X1 – For Stapling (3 x 5,000 pcs) (Staple Finisher-AC1/2 and Booklet Finisher-AC1/2) |
| Toner Cartridge/s | TONER T01 BK/C/M/Y |
