Compact footprint

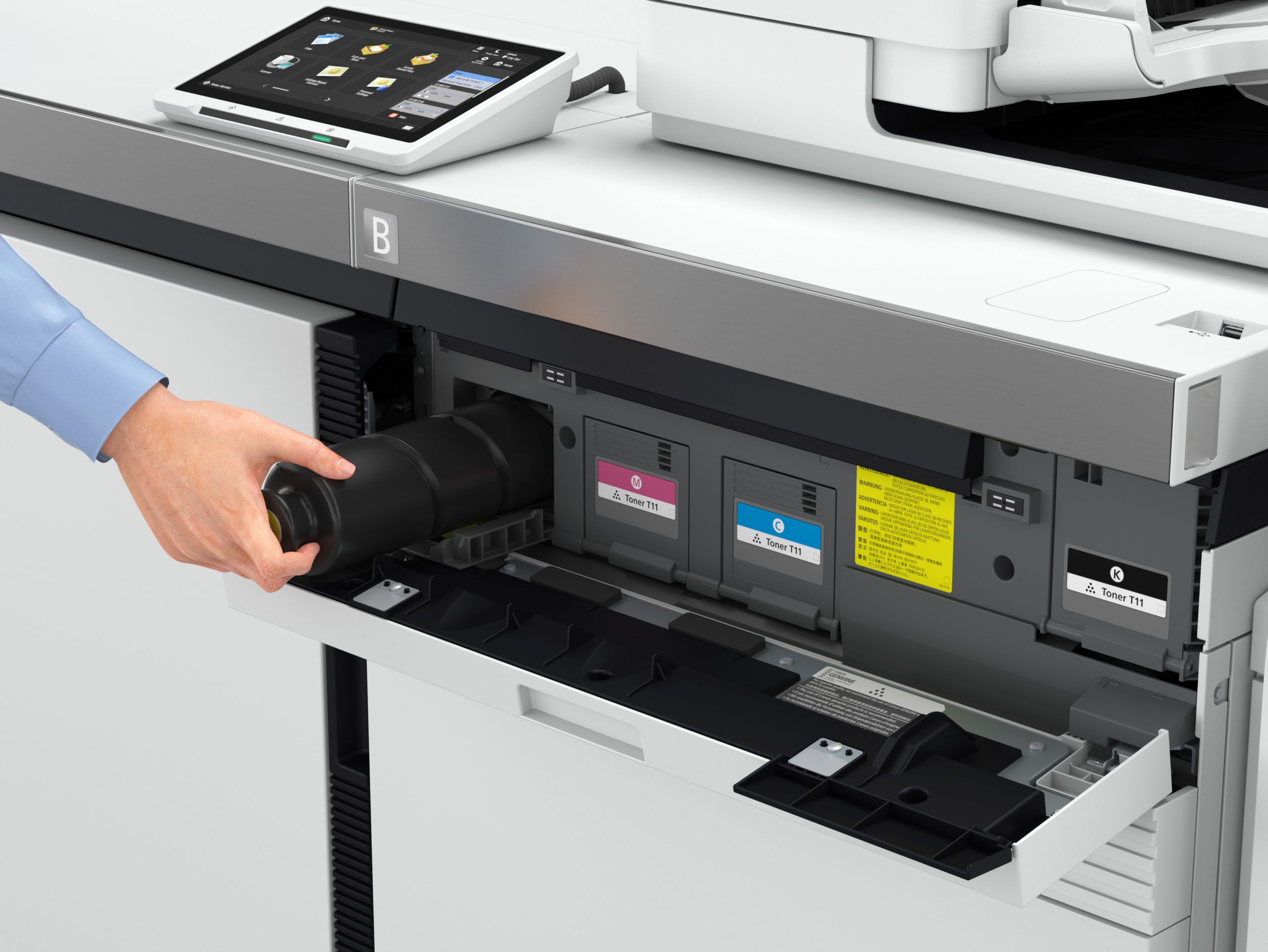

Forget about slowing down when you change media. The imagePRESS V1000’s new POD- SURF fixing technology lets you switch between heavy and light media within one job, and still print at the maximum speed of 100ppm. Consumables — media, toner and toner waste — can all be changed without stopping the printer. Automatic alerts tell
you when they’re running low, avoiding unscheduled stops or slowdowns. And you can get device status information in real time from any location.
Quality you can depend on
With 2,400 x 2,400dpi resolution, a default offset-like 190lpi screen pattern — among other choices — and translucent
Consistently Vivid (CV) toner, premium image reproduction comes as standard on every imagePRESS. The imagePRESS V1000 adds new transfer technology and a new fixing system for pristine, flat sheets. The cooling unit — now a built-in feature on this new model — ensures no warping, sticking or bricking.
Compact footprint

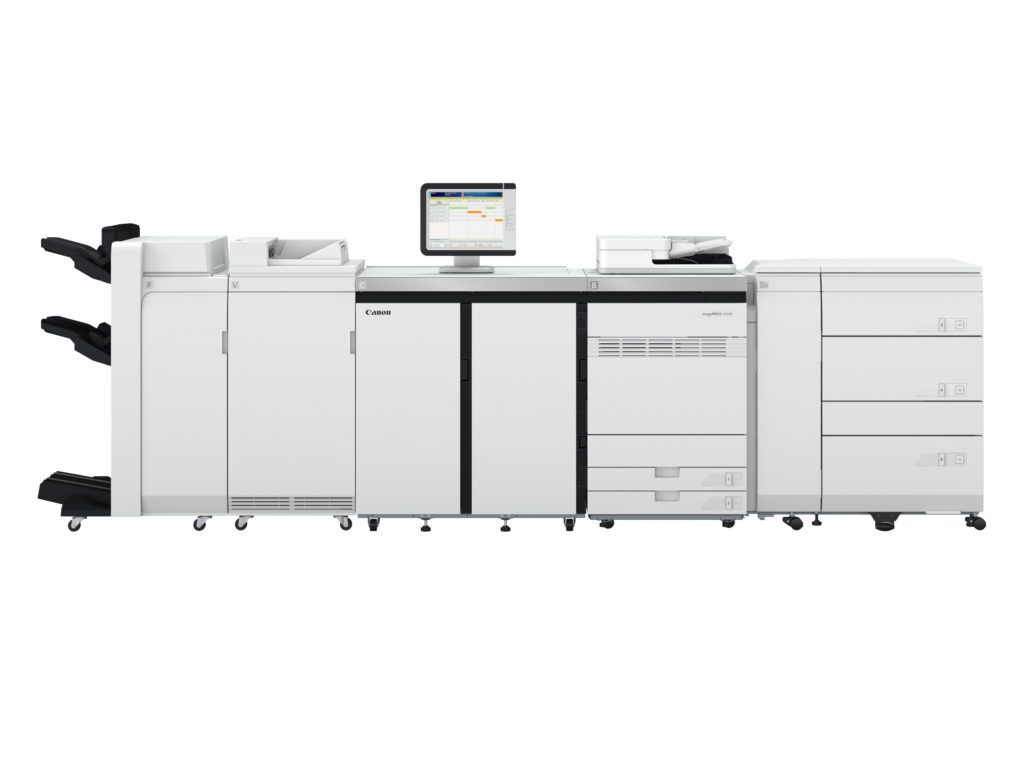

The imagePRESS V1000’s best-in-class footprint — typically under 3m2* — squeezes maximum productivity and utilisation from every square metre of your print room.
*Standard configuration with Multi-Drawer Paper Deck and Booklet Finisher
New technology for high-quality image transfer
A truly innovative new take on sheet transfer technology creates the optimal transport path for every sheet, thin or thick, by making the positions of the secondary transfer roller and back-up sheet variable, depending on the weight of the media. Because the secondary inside roller moves and changes position, this makes it easier for the media to peel off from the image transfer belt.
New integrated cooling unit
An innovative new built-in cooling system cools the heated media immediately after fixing by up to 25%. Efficiently removing heat from the media maintains high production speeds and minimises waste. Sheets won’t warp or stick to each other, or brick if you must leave the job standing. The result is pristine, flat sheets for optimum quality and no loss of productivity.
| Machine Type | Digital colour cut-sheet press |
| Core Functions | Print, Copy, Scan, Send, Store |
| Processor Speed | 1.8 GHz, 1.3 GHz Dual |
| Control Panel | 10.1 inch |
| Memory | 6 GB |
| Interface Connection | NETWORK |
| Network Protocols | Standard: 1000Base-T/100Base-TX/10Base-T |
| Paper Input (Standard) | Standard: 1,100 sheets 550-sheet Paper Cassette x 2 Maximum: 11,100 sheets Engine 550 x 2, Multi-drawer Deck (1,500 + 1,500 + 2000) x 2 |
| Paper Supply Capacity (A4, 80 gsm) | 11,100 sheets |
| Finishing Capabilities | Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch (multiple patterns), Document Insertion, Fold (C-, Z-, Half, Double parallel, Accordion-Z fold), Trimming |
| Supported Media Types | Thin (52-63 gsm), Plain (64-105 gsm), Recycled, Colour, Thick (106-400 gsm), Coated (70-400 gsm), Embossed, Bond, Transparency, Label, Pre Punched, Letterhead, Index, Transparent film, Translucent film, Envelope, Synthetic, Magnetic |

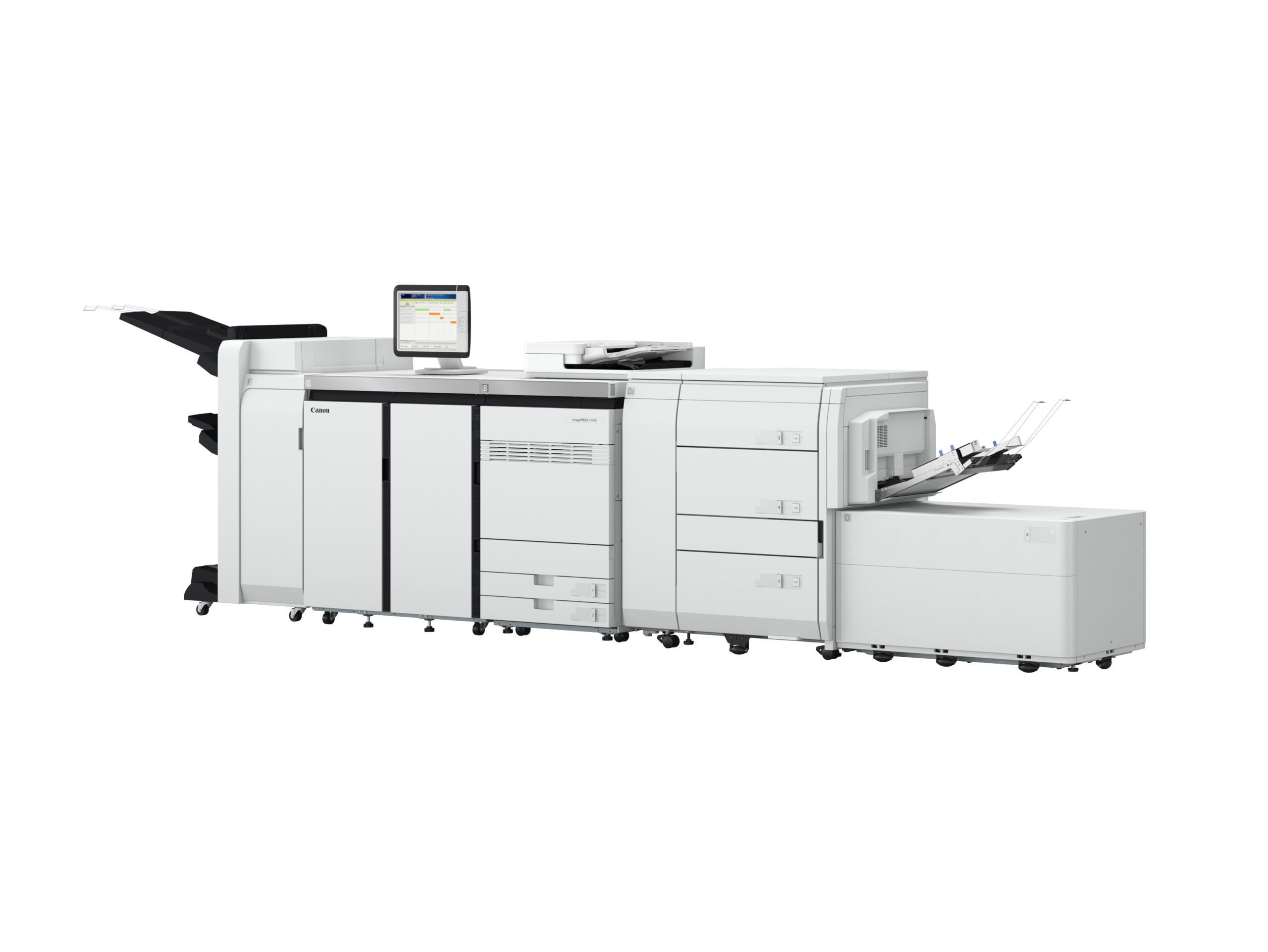

| Supported Media Sizes | A3S, B4S, A4L, A4S, B5S, B5L, A5S, A5L, A6S, SRA3S, 11”x17”S, LGLS, LTRL, LTRS, EXE_L, STMTS, 12”x18”S, 13”x19”S, 8KS, 16KL, 16KS, Envelope, Custom size (Cross track: 100~330.2 mm, In track: 148~487.7 mm), Long Sheet (210.0×487.8-330.2×1, 300.0 mm) |
| Supported Media Weights | 52-400 gsm |
| Dimensions (W x D x H) | 1,583 x 872 x 1,040 mm |
| Printing Method | Colour Laser Beam Printing |
| Print Speed | 100 ppm |
| Print Resolution (dpi) | 2,400 x 2,400 dpi |
| Copy Speed | 100 ppm |
| First-Copy-Out Time | 20 seconds or less |
| Copy Resolution (dpi) | 600 dpi x 600 dpi, 600 dpi x 300 dpi, 300 dpi x 300 dpi |
| Multiple Copies | Up to 9,999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | 25% – 400% (1% Increments) |
| Preset Reductions | 25%, 50%, 70% |
| Preset Enlargements | 141.4%, 200%, 400% |
| Basic Copy Features | Preset R/E Ratios by Area, Paper Setting, Previous Setting, Favourite Setting, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel |
| Special Copy Features | Book to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Print on Tab, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Detect Feeder Multi Sheet Feed, Free Size Original |

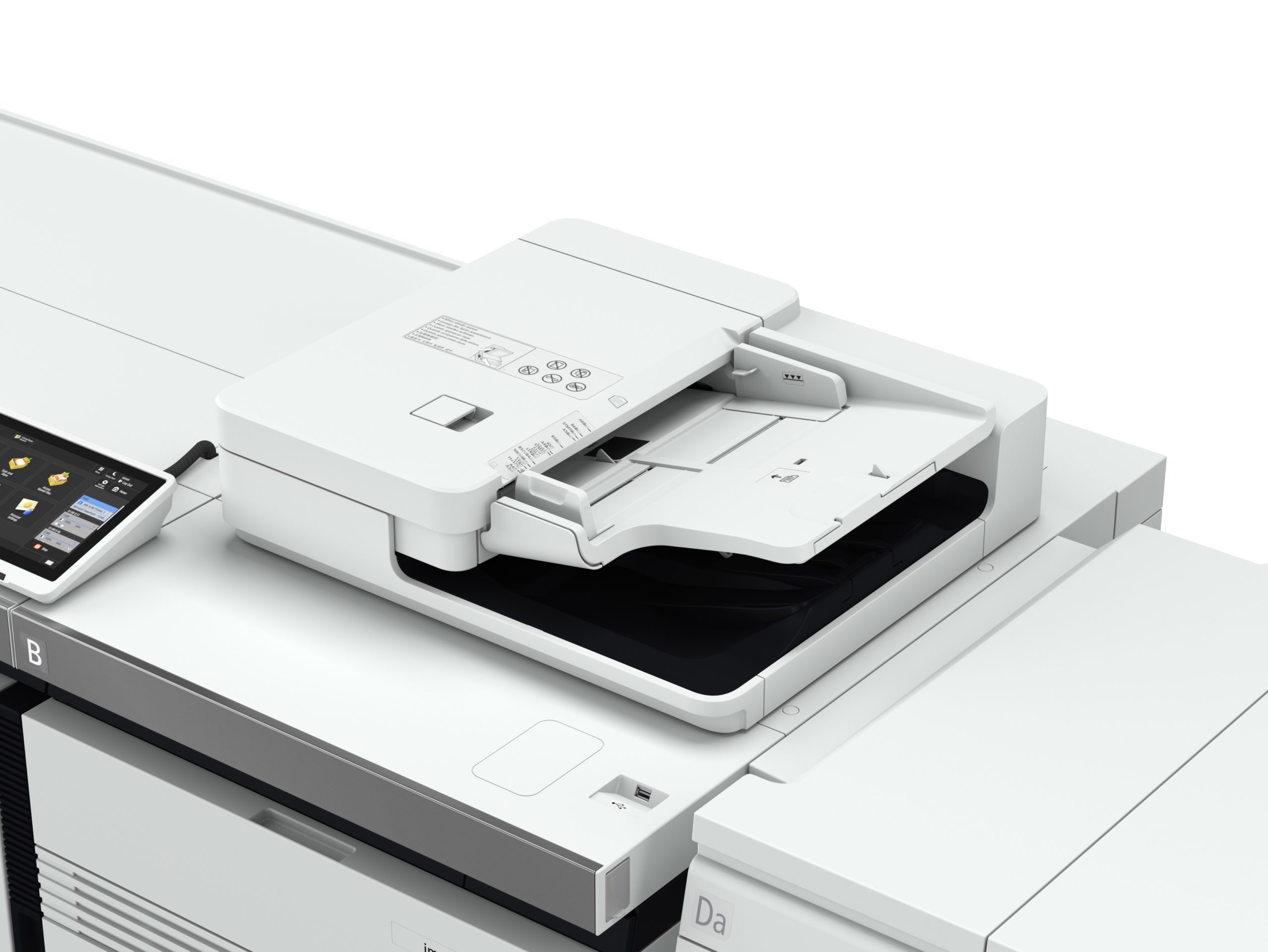

| Type | Colour Platen and Single-pass Duplexing Automatic Document Feeder [2-sided to 2-sided (Automatic)] |
| Scan Resolution (dpi) | 600 dpi x 600 dpi, 600 dpi x 300 dpi, 300 dpi x 300 dpi |
| Document Feeder Paper Capacity (80 gsm) | 200 sheets |
| Acceptable Originals/Weights | 38-220 gsm |
| Supported Media Sizes | A3S, A4L, A4S, A5L, A5S, A6S, B4S, B5L, B5S, B6S, 11”x17”S, LGLS, LTRL, LTRS, STMTL, STMTS, 8KS, 16KL |
| Scan Speed | BW: 270 ipm (A4/LTR) CL: 270 ipm (A4/LTR) |
| Optional/Standard | Optional |
| Name | imagePRESS Server D3000 |
| Print Resolution (dpi) | 1200 x 1200, 600 x 600 |
| Page Description Language(s) | PS3, PCL6 |
| Memory | 16 GB |
| Hard Disk Drive | 240 GB (2.5″ SSD), 1×1 TB (2.5″ HDD) |
| Processor Speed | Core i7-8700, Coffee lake, 4.6 GHz, 6 Core |
| System | FS500Pro |
| Fonts | 138 PS fonts |
| Supported Operating Systems | Windows 7 32 and 64 bit / Windows 8.1 32 and 64 bit / Windows10 32 and 64 bit / Windows11 / Windows Server 2008 R2 64bit only / Windows 2012 64bit only / Windows 2012 R2 64 bit only / Windows Server 2016 64bit / Windows Server 2019 64bit / Windows Server 2022 64bit / MAC OS (10.14, 10.15, 11, 12) |
| Interface | 2 x Ethernet (1000Base-T/100Base-TX/10 Base-T), USB3.2 x 5, USB2.0 x 2 |
| Network Protocols | TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port 9100, SNTP, 802.1X, DHCP, DNS, NTP) |
| Direct Print | PDF2.0, EPS, TIFF, JDF1.8/JMF |
| VDP | PPML3.0, PDF/VT-1, PDF/VT1,VPS, FreeForm Plus |
| Fiery Print Controller Standard Features | Fiery Command WorkStation 6 / Paper Catalog / Fiery Spot-On / Fiery Remote Scan / Fiery Hot Folders & Virtual Printers |
| Fiery Print Controller Options | Fiery Impose / Fiery Compose / Fiery Impose and Compose / Fiery Graphic Arts Package / Removable HDD Kit |
| HW Platform | NX Pro |
| Dimensions (W x D x H) | 235 mm x 464 mm x 527 mm |
| Weight | 17 kg |
| Toner Cartridge | Toner T11 BK/C/M/Y |
| Staple Cartridge | STAPLE-N1 – for Stapling (3 x 5,000 pcs) (for Staple Finisher-AF1 and Booklet Finisher-AF1) STAPLE-P1 – for Saddle Stitching (2 x 5,000 pcs) (for Booklet Finisher-AF1) |
