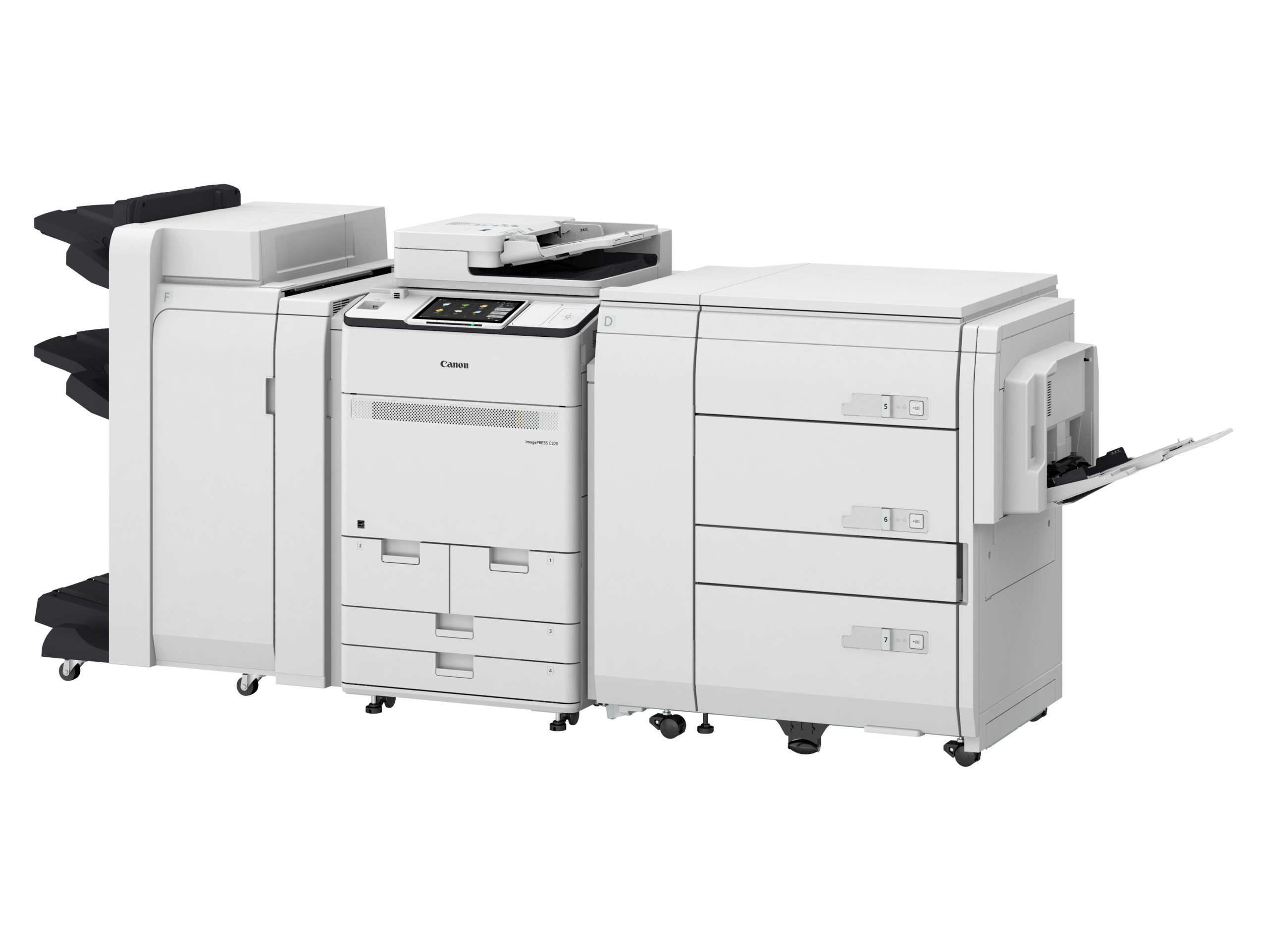

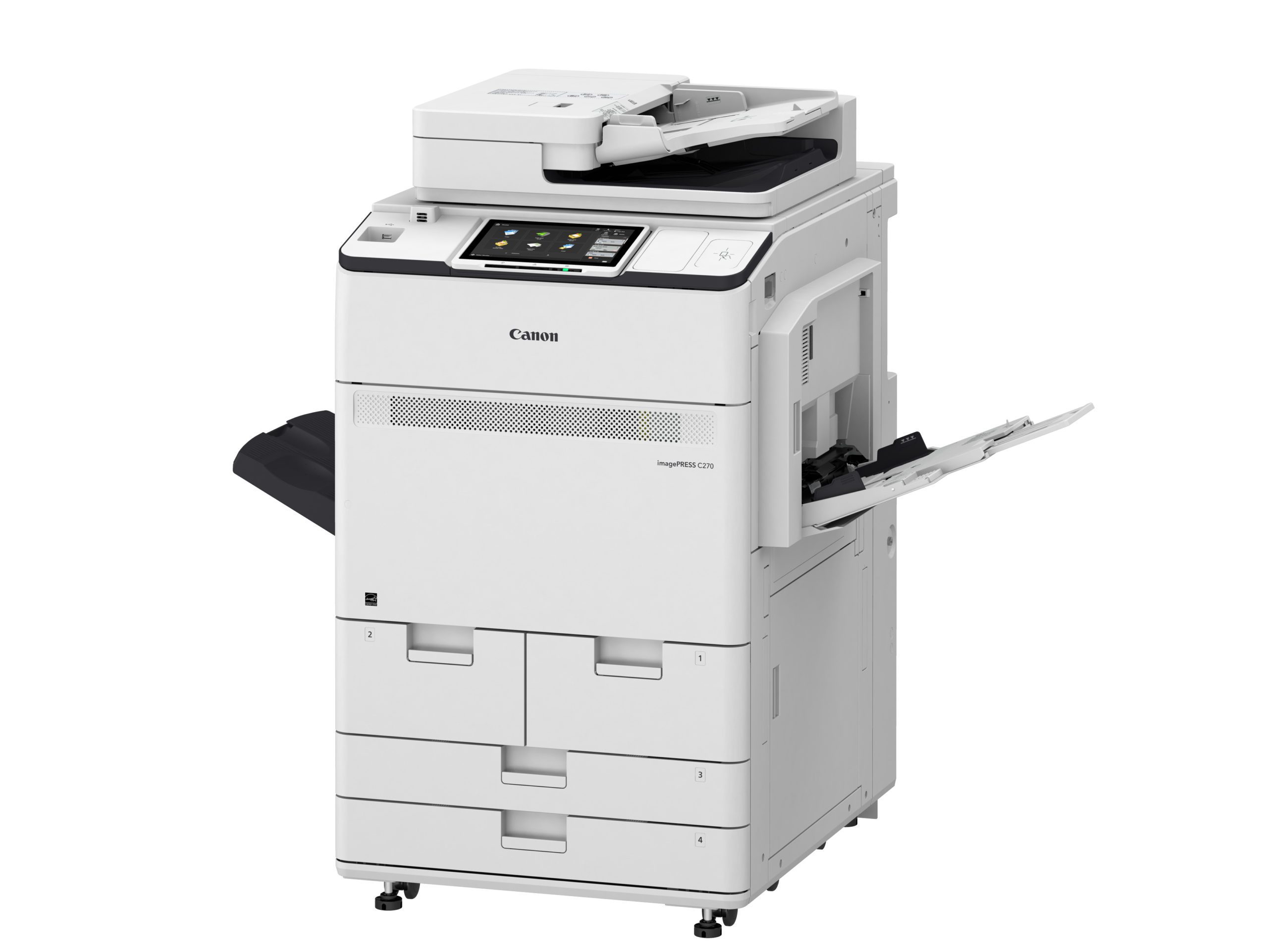

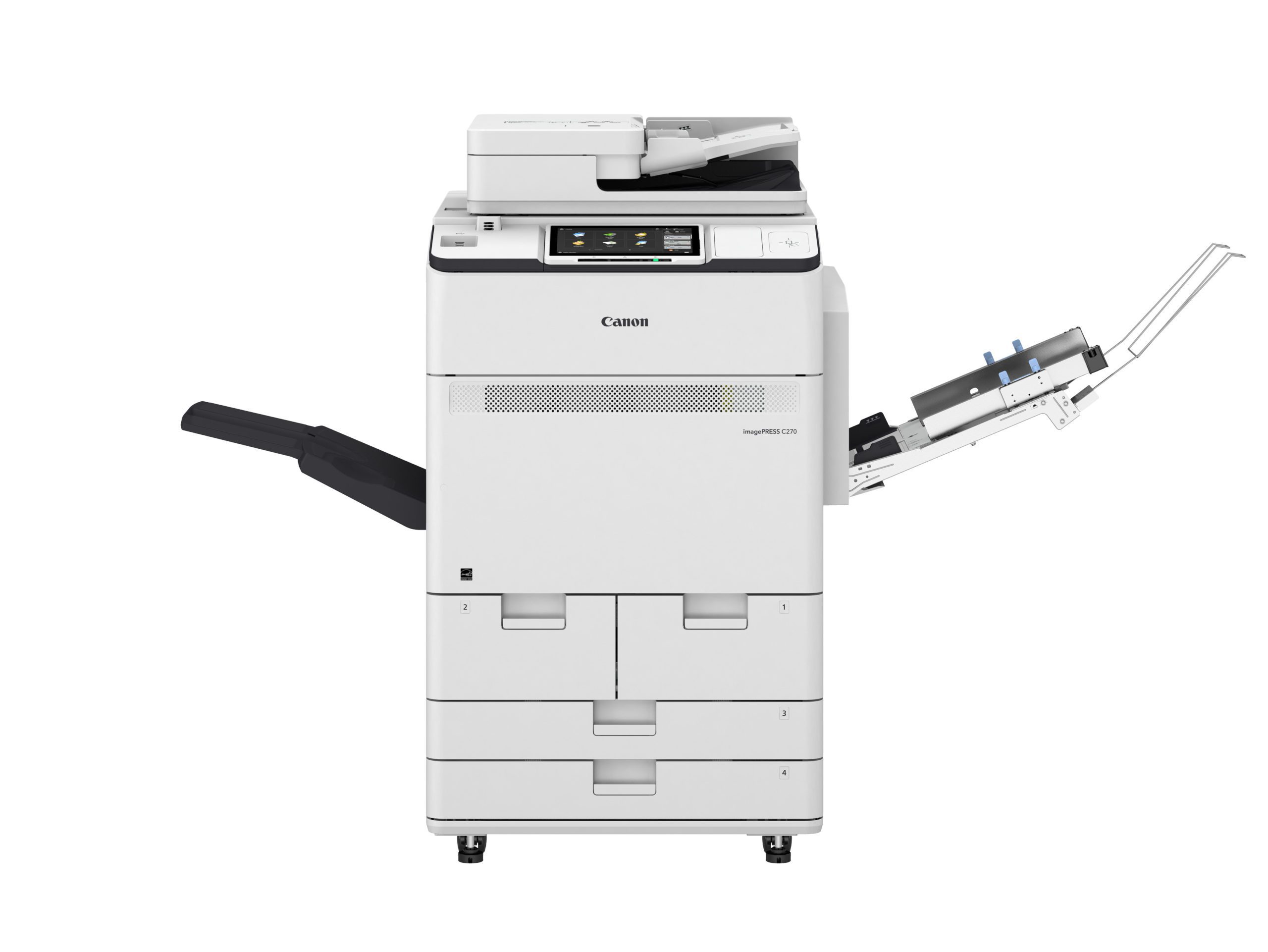

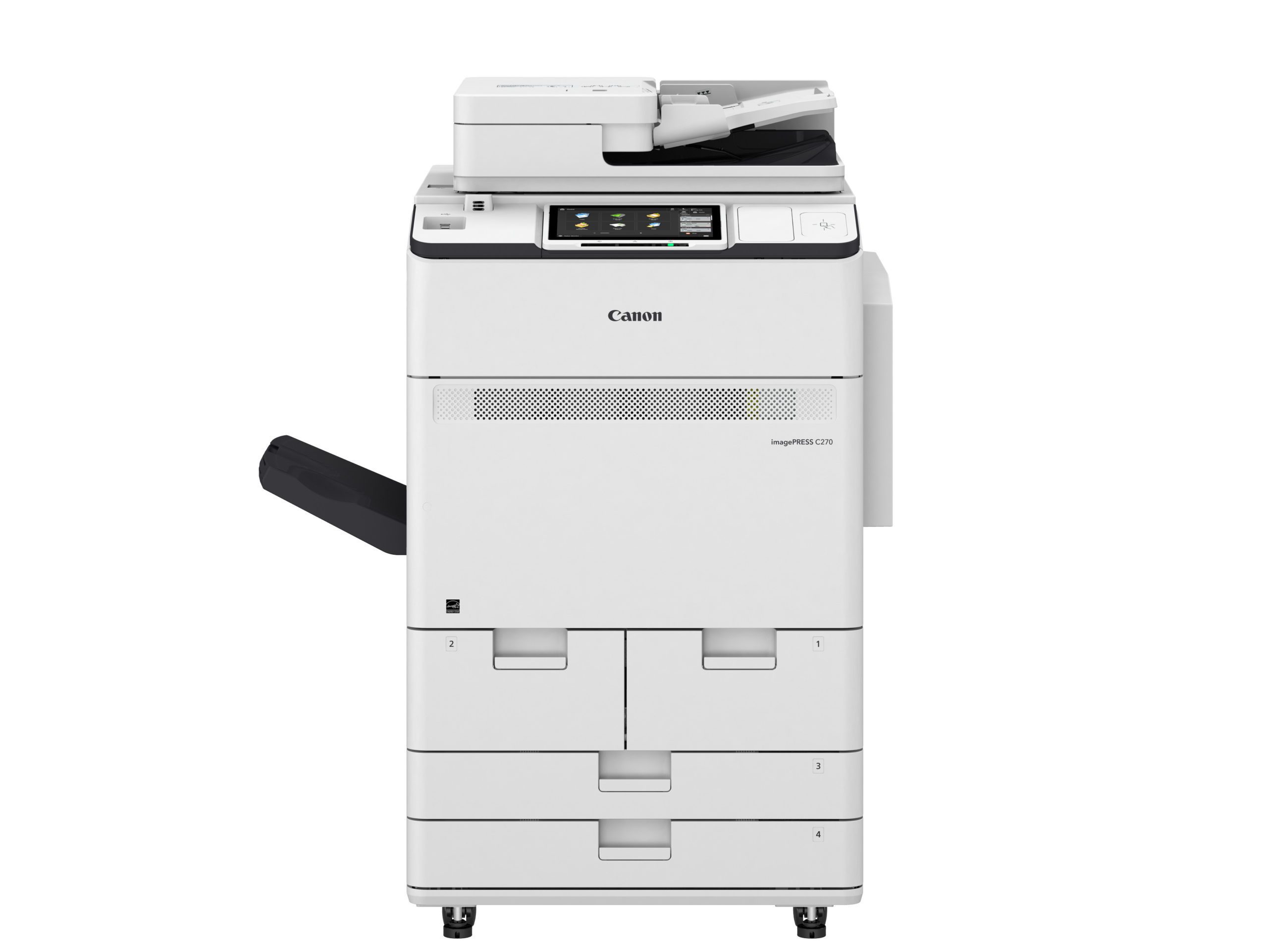

The imagePRESS C270 Series is the smart solution for all your business needs, packed with features to ensure efficient production. It takes the hard work out of your printing, so you can focus on driving business growth.
Security
You need your business data to be secure. Thanks to uniFLOW Online Express as standard, the imagePRESS C270 Series gives you an all-in-one, ready-to-use online print management service. It works seamlessly with your existing processes, brings print related costs under control, provides enhanced document security – to safeguard your data and protect your intellectual property – and increases employee productivity. Enhanced Verify System at Startup, with the addition of a new Auto Recovery feature with the ability to rewrite to default firmware if BIOS is attacked or compromised, helping to reduce the need for an additional service call.
User productivity
uniFLOW Online** boosts productivity by creating tailored workflows to capture, share and store digital documents. You can accurately track expenses and set rules, auto-delete unreleased jobs and only print the collateral you need. Produce the exact number of copies you want, when you want them. With on-demand printing, there’s no waste and no inventory to store. You can run dynamic campaigns updating messages, incentives and calls to action as you go. With the imagePRESS C270 Series, you have a reliable technology solution that won’t let you down, and eMaintenance services to access fast, proactive support when you need it.
Device and fleet management
uniFLOW Online** captures, archives and shares information, so you can centralise control of all document workflows and make collaboration easier. Automatic updates of the online software give you flexibility and frees up your time to focus on other business growth opportunities. Remote diagnostics and support help to lower your costs by reducing downtime and manual processes. Data Backup provides a simple automated process of backing up device settings.

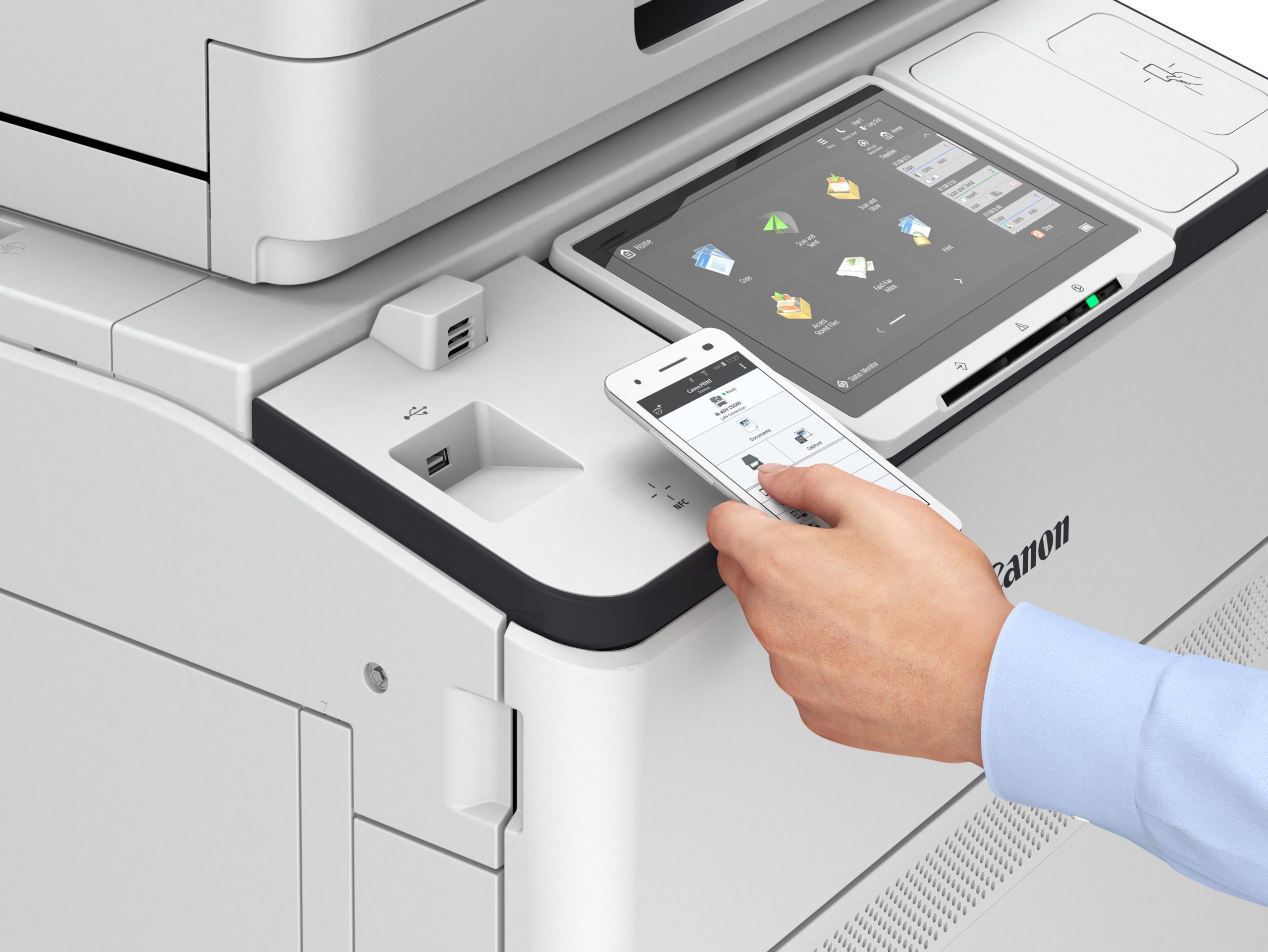

Mobility
Many options to print and scan from anywhere to any Canon device and offer secure ad hoc mobile printing for your guests, including:
• Canon PRINT Business app*
• uniFLOW Online**
• Mopria Print Service
• The direct connection feature on the device
Cost management
Our cloud based solution means you can easily track and control usage and application resources. It has a low start-up cost and simple functions. You can manage print costs, help alter wasteful actions and limit or restrict access.
Sustainability
Efficient energy use, a proofing option to reduce waste, sleep mode when the printer is not in use and an intelligent motion sensor make the imagePRESS C270 Series a sustainable choice.
| Machine Type | A3 Colour Laser Multifunctional |
| Core Functions | Print, Copy, Scan, Send, Store and Optional Fax |
| Processor | 1.8 GHz Dual Core Processor |
| Control Panel | Standard: 25.6 cm (10.1 inch) TFT LCD WSVGA Colour Touch panel |
| Memory | Standard: 5 GB RAM Main CPU Side: 2 GB Image Processing CPU Side: 2 GB + 1 GB (Reserved for Imaging Processing) |
| Hard Disk Drive | Standard: SSD 256 GB GB Optional: SSD 1 TB |
| Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Optional: NFC, Bluetooth Low EnergyOTHERS Standard: USB 2.0 (Host) x2, USB 3.0 (Host) x1, USB 2.0 (Device) x1 Optional: Serial Interface, Copy Control Interface |
| Network Protocols | TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP) |

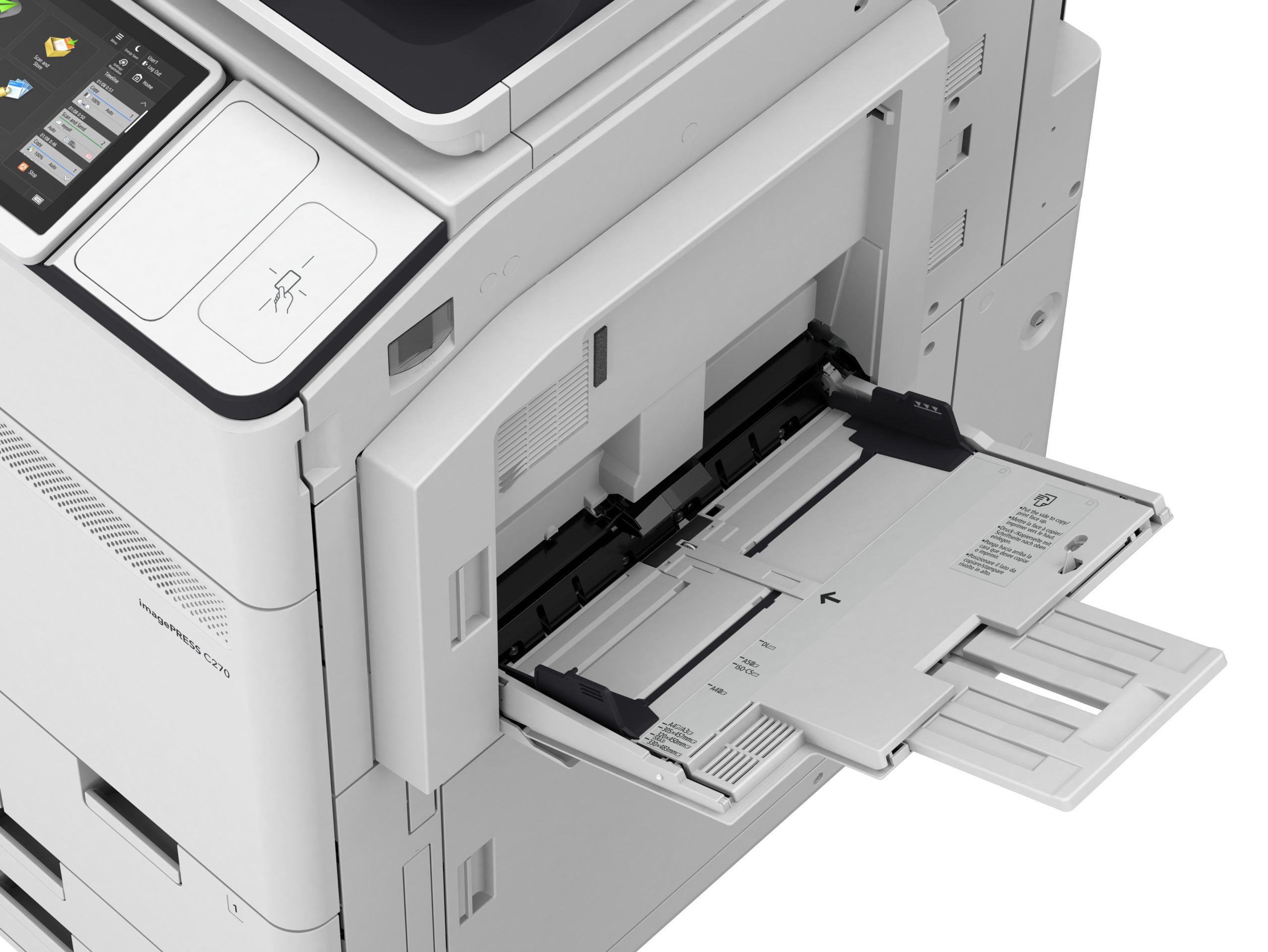

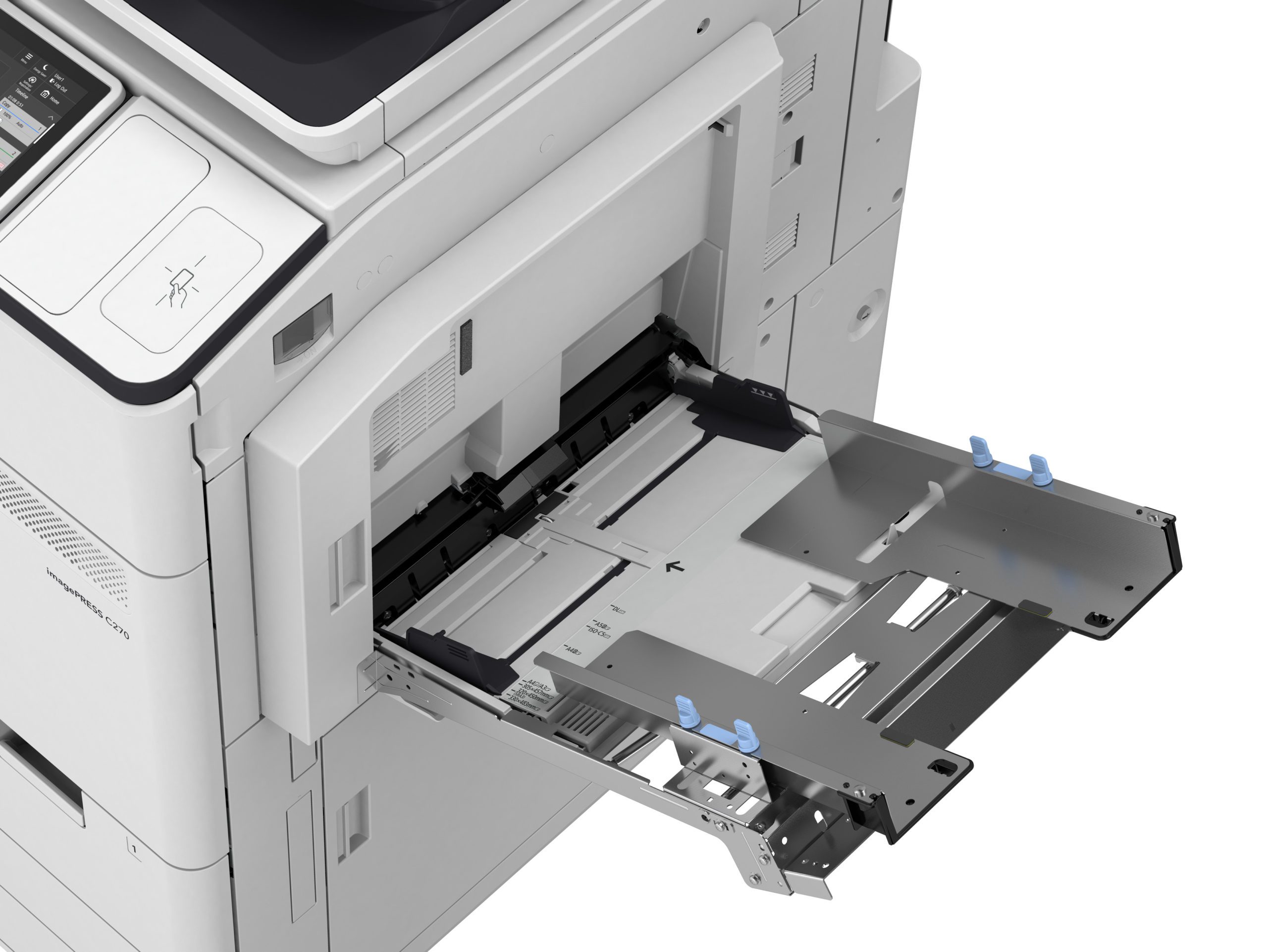

| Paper Supply Capacity (A4, 80 gsm) | Standard: 3,550 sheets 250-sheet Multi-Purpose tray 1,100-sheet Paper Deck x 2, 550-sheet Paper Cassette x 2, Maximum: 7,050 sheets (with POD Deck Lite-C1 or Paper Deck Unit-E1) |
| Paper Output Capacity (A4, 80 gsm) | 250 sheets (with Copy Tray-R2) Maximum: 3,500 sheets (with Staple Finisher-AC1 or Booklet Finisher-AC1) Maximum: 5,000 sheets (with Stapler Finisher-AG1 or Booklet Finisher-AG1) |
| Finishing Capabilities | With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming. |
| Supported-Media-Types | Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Coated, Textured, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope
Paper Decks (Right/Left): Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Bond, Pre-punched, Letterhead Paper Cassettes (Upper/Lower): Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Tab*1, Envelope*2 |
| Supported Media Sizes | Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 90.0 x 148.0 mm to 330.2 x 487.7 mm Long size: 210.0 x 487.8 mm to 330.2 x 1,300.0 mm*3 Free size: 100.0 x 148.0 mm to 330.2 x 487.7 mm Envelope: COM10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 90.0 x 148 mm to 330.2 x 487.7 mmPaper Decks (Right/Left): Standard size: A4, B5 Paper Cassettes (Upper/ Lower): |
| Supported Media Weights | Multi-purpose tray: 52 to 350 gsm Paper Deck (Right/Left): 52 to 220 gsm Paper Cassette (Upper/Lower): 52 to 256 gsm Duplex: 52 to 220 gsm |
| Warm-up Time | Quick Startup Mode: 4 seconds or less (Time until key operations can be performed on the touch panel display)
From Power On: 30 seconds or less (Time until it becomes possible to start copying) From Sleep Mode: 30 seconds or less |
| Dimensions (W x D x H) | 689 x 937 x 1,185 mm |
| Installation Space (W x D) | Basic: 2,026 x 1,524 mm (with Front door open + Multi-purpose tray/upper-right cover open + Buffer Pass-M1 + Booklet Finisher-AC1/extension tray & rotary tray extended)
Fully Configured: 2,621 x 1,524 mm (with POD Deck Lite-C1 + Buffer Pass-M1 + Document Insertion Unit-Q1 + Booklet Finisher-AC1/extension tray extended) Fully Configured: 5,900 x 1,524 mm (with Multi Drawer PD-E1 + Stack Bypass Tray-B1 + Buffer Pass-M1 + Insertion Unit-R1 + Paper Folding Unit-K1 + Booklet Finisher-AG１+ Booklet Trimmer G1+ 2-Knife Trimmer-G1 + Trimmer Conveyor-B1/extension tray extended) |
| Weight | Approx. 261 kg (including toner) |
| Printing Method | Colour Laser Beam Printing (Electronic Photography) |
| Print Speed A4 (CL/BW) | 70 ppm CL and 80 ppm BW (A4, A5*4, A5R, A6R*4) 35 ppm CL and 40 ppm BW (A3) |
| Target (Max) Print/Copy Volume per Month | Up to 100,000 pages |
| Monthly Duty Cycle | 390,000 pages |
| Alignment Tolerance | Cross track: 2.0 mm or less, In track: 1.2 mm or less |
| Print Resolution (dpi) | 2,400 x 2,400 |
| Page Description Languages | Standard: UFR II, PCL 6, PCL5 Optional: imagePRESS PS Printer Kit -G1 |
| Direct Print | Direct printing available from USB memory, Advanced Space, Remote UI and Web Access*5 Supported file types: TIFF, JPEG, PDF, EPS and XPS |
| Fonts | PPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*6 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*7 |
| Print Features | Secured Print, Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold Printing, Scheduled Printing, Printing Using a Virtual Printer |
| Operating System | UFRII: Windows® 8.1 / 10 / 11 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019 / Server 2022, Mac OS X (10.11 or later). PCL: Windows® 8.1 / 10 / 11 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019 / Server 2022. PS (Driver): Windows® 8.1 / 10 / 11 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019 / Server 2022, Mac OS X (10.11 or later) PPD: Windows® 8.1 / 10 / 11, Mac OS X (10.11 or later) |
| Copy Speed (CL/BW) | 70 / 80 ppm: A4, A5*8, A5R, A6R*8 49 / 56 ppm: A4R 35 / 40 ppm: A3 |
| First-Copy-Out Time | Approx. 4.8/5.9 seconds or less |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 9,999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | 25% – 400% (1% Increments) |
| Preset Reductions | 25%, 50%, 70%, 100% (1:1) |
| Preset Enlargements | 141%, 200%, 400% |

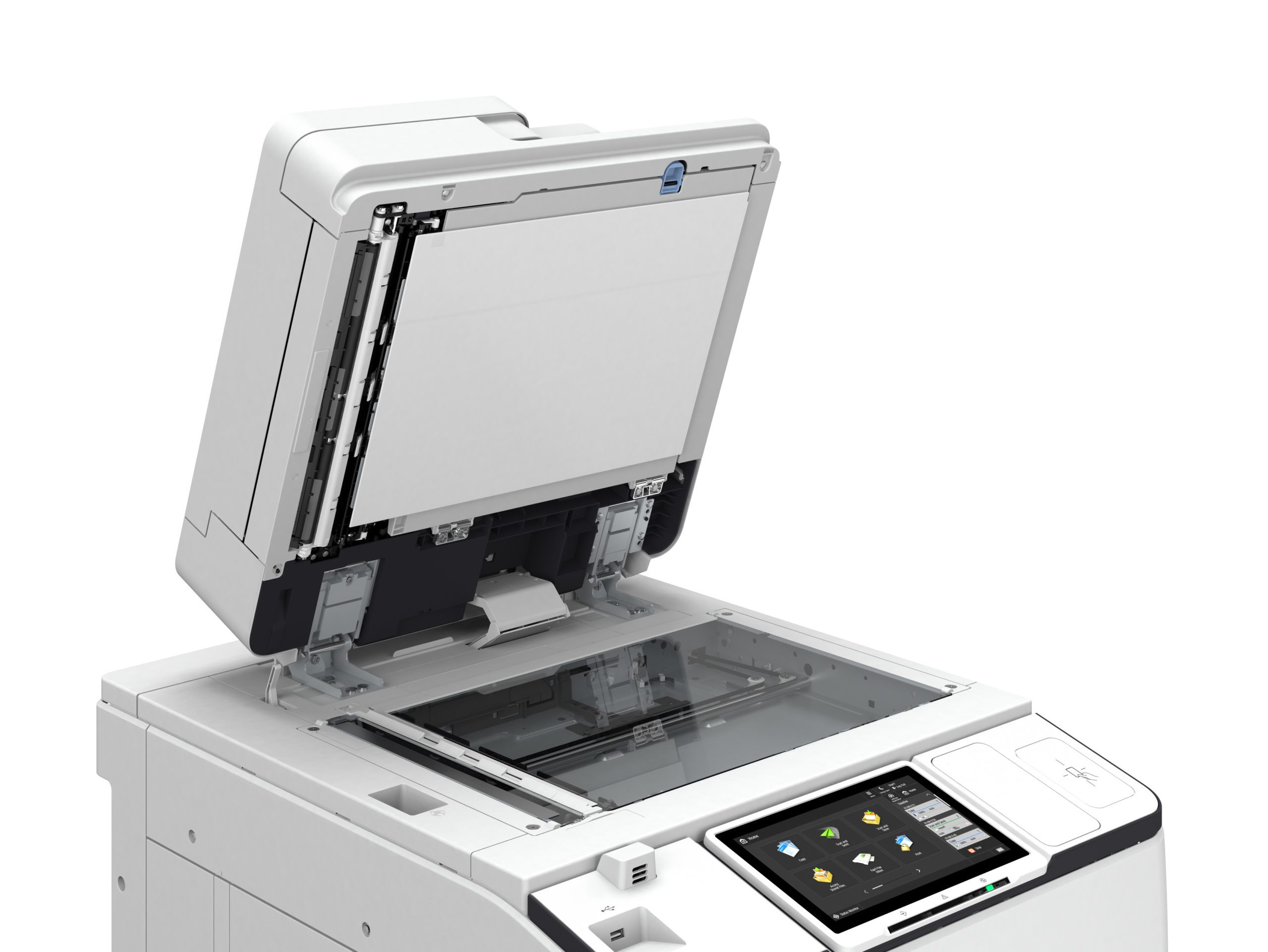

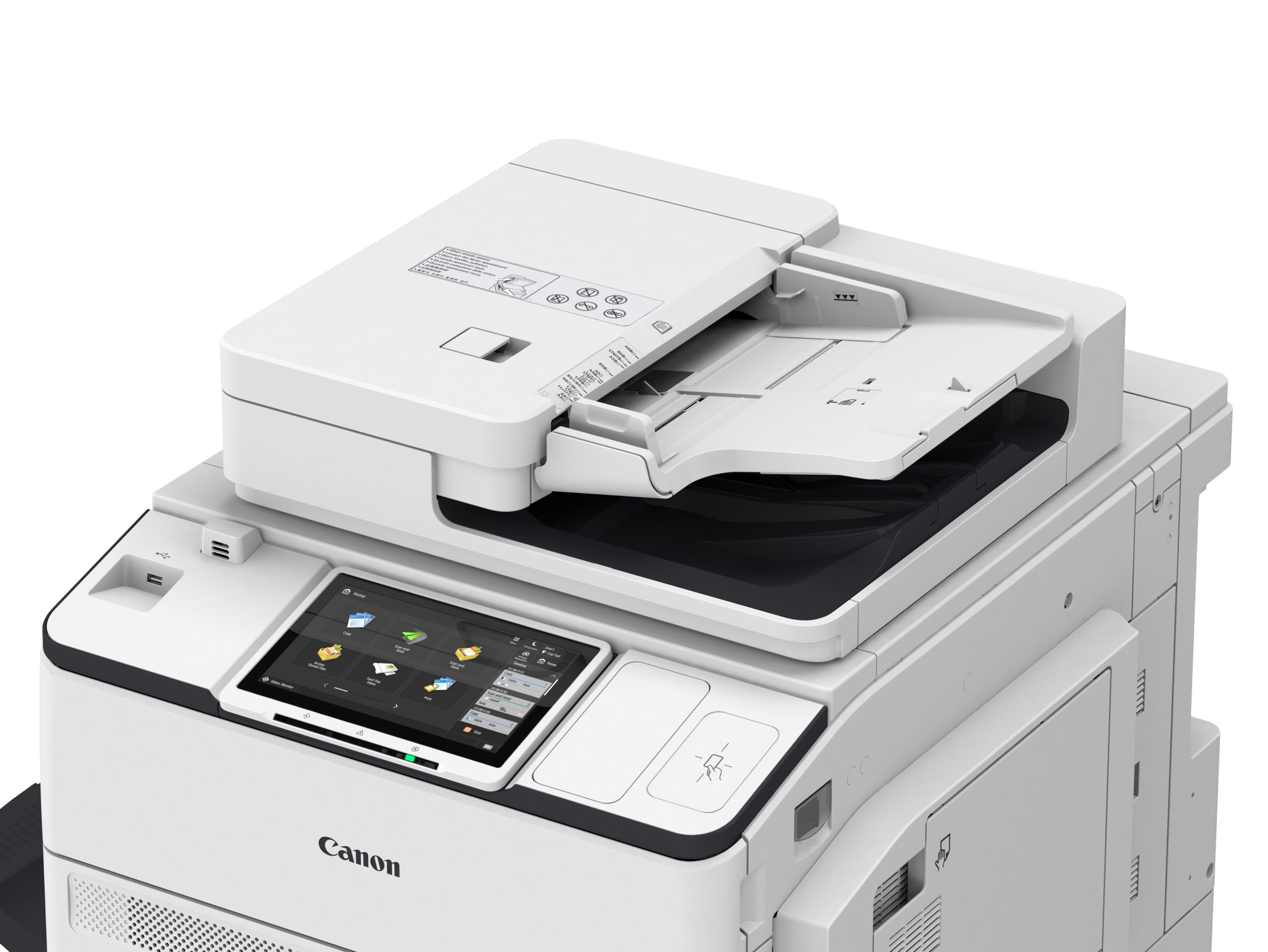

| Type | Single-pass Duplexing Automatic Document Feeder*9 [2-sided to 2-sided (Automatic)] |
| Pull Scan Specifications | Colour Network ScanGear2 for both TWAIN and WIA Supported OS: Windows® 8.1 / 10 / 11 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019 / Server 2022 |
| Scan Resolution (dpi) | Scan for Copy: 600 x 600, Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600 |
| Document Feeder Paper Capacity (80 gsm) | Up to 200 Sheets |
| Acceptable Originals and Weights | Platen: Sheet, Book, 3-Dimensional objects Document Feeder media weight: 1-sided scanning: 38-220 gsm (BW/CL)*10 2-sided scanning: 38-220 gsm (BW/CL)*10 |
| Supported Media Sizes | Platen max. Scanning size: 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6R, Custom size: 70 .0 x 139.7 mm to 304.8 x 431.8 mm |
| Scan Method | Push Scan, Pull Scan, Scan to Box, Scan to Advanced Space, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online optional). |
| Scan Speed (ipm: BW/CL; A4) | Single-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy) Double-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy) |
| Destination | E-mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 Fax (optional), IP Fax (optional) |
| Address Book | LLDAP (2,000), Local (1,600), Speed dial (200) |
| Scan Resolution (dpi) | 600 x 600 |
| Communication Protocol | File: FTP (TCP/IP), SMB v3.0, WebDAV E-mail/I-Fax: SMTP, POP3 |
| File Format | TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
| Universal Send Features | Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, Email Priority, TX Report, Original Content Orientation, Skip Blank Pages. |
| Optional/Standard | Optional |
| Maximum Number of Connection Lines | 1 |
| Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression Method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal) |
| Sending/Recording Size | Sending: A3, A4, A4R, A5*11, A5R*11, B4, B5*12, B5R*11 Receiving: A3, B4, A4, A4R, A5R, B5, B5R |
| FAX Memory | Up to 30,000 pages (2,000 jobs) |
| Speed Dials | Max. 200 dials |
| Group Dials/Destinations | Max. 199 dials |
| Sequential Broadcast | Max. 256 addresses |
| Memory Backup | Yes |
| Fax Features | Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Sub-address Sending, Confidential Mailbox, 2 on 1 Log |
| Mail Box (Number Supported) | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes, 30,000 Maximum Pages (2,000 jobs) Stored |
| Advanced Space | Communication Protocol: SMB or WebDAV Supported Client PC: Windows® (Windows® 8.1 / 10) Concurrent Connections (Max.): SMB: 64, WebDAV: 3 |
| Advanced Space Available Disc Space | Approx. 16 GB Approx. 480 GB (with optional 1 TB HDD) |
| Advanced Space features | Authentication for Advanced Space Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore |

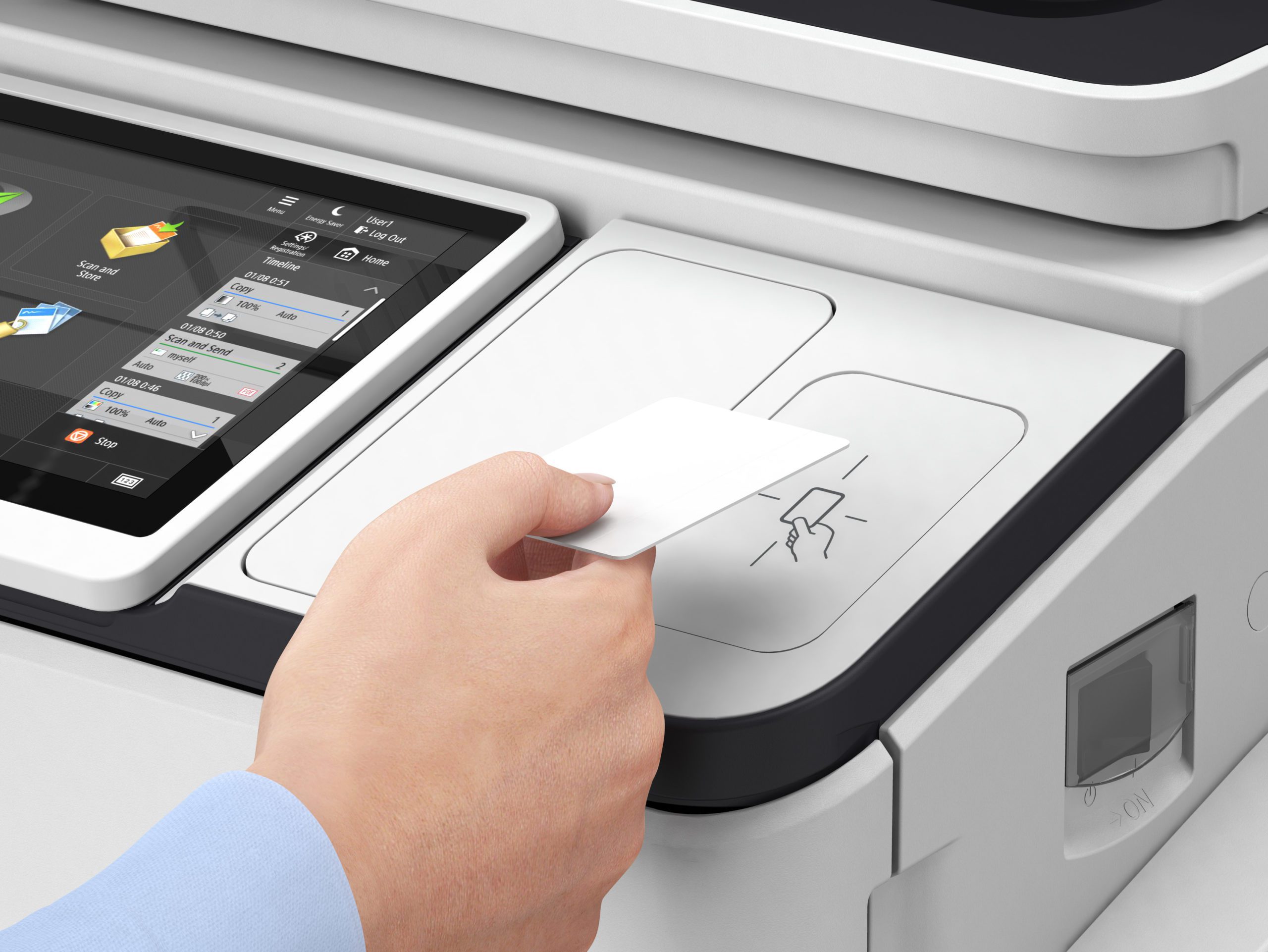

| Authentication & Access Control | User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control) |
| Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/ Wired LAN), Disabling Unused Functions (Enabling/ Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception |
| Document Security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*13), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Space Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/ Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark) |
| Device Security | Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFP Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP: pending confirmation). |
| Device Management & Auditing | Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting. |
| Operating Environment | Temperature: 20-27°C Humidity: 15-60% RH (Relative Humidity without condensation) |
| Power Source | 220-240 V (±10%), 50/60 Hz (±2 Hz), 11 A |
| Power Consumption | Approx. 2,500 W
Copying: (with DADF continuous scan) Approx. 1,228 W*14 |
| Noise Levels | Sound Power Level (LWA,m) Active (BW) (1-sided) 7.0 B*16, Kv 0.3 B*16Sound Pressure (LpAm) Bystander’s position: Active (BW/CL) (1-sided) 55 dB*16/55 dB*16 Stand-by 35 dB*16 |
| Tracking & Reporting | Universal Login Manager (ULM) uniFLOW Online Express |
| Remote Management Tools | iWEMC (iW Enterprise Management Console) eMaintenance Content Delivery System |
| Scanning Software | Colour Network ScanGear 2 |
| Optimisation Tools | Canon Driver Configuration Tool |
| Platform | MEAP (Multifunctional Embedded Application Platform) |
| Optional/Standard | Optional |
| Name | imagePRESS Server M20 (Embedded) |
| Print Resolution (dpi) | 1200 x 1200, 600 x 600 |
| Page Description Language(s) | Adobe PS3, PCL6 |
| Memory | 8 GB (2 x 4 GB) |
| Hard Disk Drive | 500 GB SATA |
| Processor Speed | Intel Pentium G5400 (3.7 GHz) |
| System | Fiery FS500 |
| Fonts | PS: 138 Fonts PCL: 113 Fonts |
| Supported Operating Systems | Windows® 7 (64 bit) / 8.1 (64 bit) / 10 (64 bit) / 11 / Server 2012 (64 bit only) / Server 2012 R2 (64 bit only) / Server 2016 R2 (64 bit only) / Server 2019 (64 bit only), MAC OS (10.14, 10.15, 10.16, 11.0, 12) |
| Interface | 2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB3.0 x 2 (Rear), USB2.0 x 4 (Rear) |
| Network Protocols | TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP) |
| Direct Print | PDF1.7, EPS, TIFF6, JDF1.4/JMF (Optional) |
| VDP | FreeForm v1/v2.1 |
| Fiery Print Controller Standard Features | Fiery Command WorkStation6 / Paper Catalog / Fiery Spot-On / Fiery Remote Scan / Fiery Hot Folders & Virtual Printers |
| Fiery Print Controller Options | Fiery Impose / Fiery Compose / Fiery Impose and Compose / Fiery Job Expert and PDF Processing Kit |
| Hardware Platform | E500 |
| Base OS | Debian of Linux |
| Power Source | AC100-240 V, 50 Hz/60 Hz, 3.0A (100V) – 1.3A (240 V) |
| Maximum Power Consumption | 55 W |
| Dimensions (W x D x H) | 297 x 90 x 272 mm |
| Weight | Fiery unit only (with plate): 5.5 kg |
| PAPER DECK UNIT-E1 | Paper Capacity: 3,500 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Thick, Colour, Pre-punched, Letterhead, Bond Paper Size: A4, B5, LTR*17 Paper Weight: 52-256 gsm Power Source: From the main unit Dimensions (W x D x H): 340 x 630 x 572 mm (attached to the main unit) Weight: Approx. 34 kg |
| POD Deck Lite-C1 | Paper Capacity: 3,500 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Thick, Colour, Pre-punched, Letterhead, Bond, Tab, Transparency, Label, Coated, Textured, Tracing, Envelope*18 Paper Size: A3, B4, A4, A4R, B5, B5R, A5R, SRA3, 11″x17″, LGL_R, LTR, LTR_R, EXE, STMT_R, 12″x18″, 13″x19″, 8K, 16K, 16K_R, Envelope [No.10(COM10), Monarch, DL, ISO-C5], Custom size (139.7 x 148.0 mm to 330.2 x 487.7 mm) Paper Weight: 52-350 gsm Power Source: 220-240V, 50/60Hz, 1.2A Dimensions (W x D x H): 633 x 686 x 574 mm (attached to the main unit) Weight: Approx. 68 kg |
| Copy Tray | Copy Tray-R2 Provides a simple tray for basic output needs. Capacity: 250/100 sheets (1-sided/2-sided, 80 gsm) |

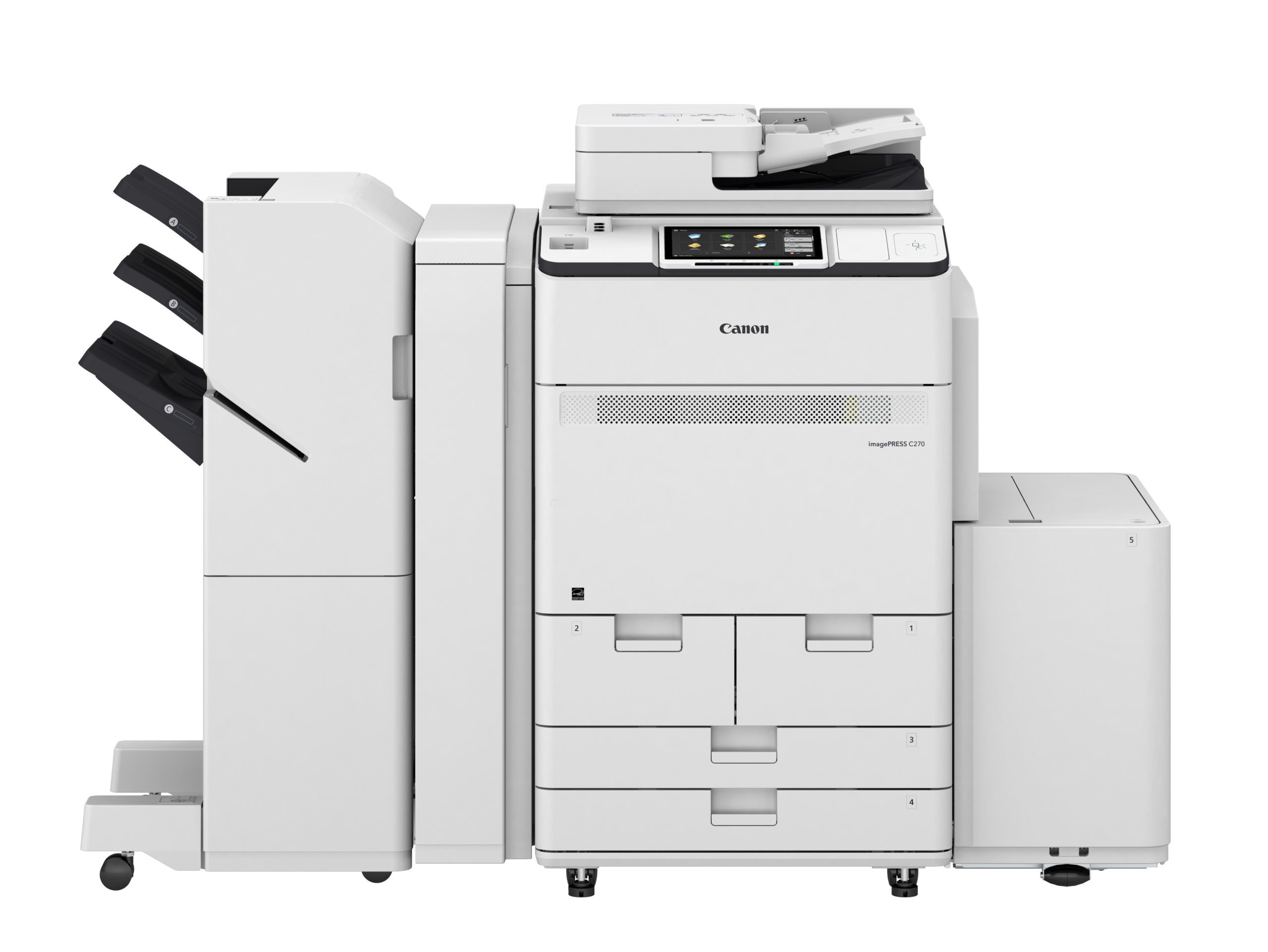

| STAPLE FINISHER-AC1 | Tray Capacity (with 80 gsm paper): Upper Tray: A4/A5/A5R/B5: 250 sheets (80 gsm) SRA3/A3/A4R/B4/B5R: 125 sheets (80 gsm) Envelope: 30 sheetsMid Tray: A4/A5/A5R/B5: 250 sheets (80 gsm), SRA3/A3/A4R/B4/B5R: 125 sheets (80 gsm) Envelope: 30 sheets Lower Tray: Paper Weight: Staple Position: Corner, Double Power Source: From the main unit Weight: Approx. 36 kg |
| BOOKLET FINISHER-AC1 (External) | (Includes the above Staple Finisher-AC1 basic staple specifications) Booklet Stitch Paper Size: A3, A4R, B4, Custom size (195 x 270 mm to 304.8 x 457.2 mm) Booklet Stitch Paper Weight: Body sheet 52-220 gsm, Cover sheet 52-256 gsm Booklet Stitch Staple Capacity 20 sheets x10 sets (52-81.4 gsm)Non-Staple Folded Bunch Capacity: up to 3 sheets (52-105 gsm) Power Source: From the main unit Dimensions (W x D x H): 527 (Max 656*19) x 623 x 1,099 (Max 1,195*19) mm Weight: Approx. 60 kg |
| FINISHER JOGGER KIT-A1 | Attached to the Lower Tray of either the STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC1 Paper Size: [Non-Sort] A3, A4, A4R, B4, B5, B5R [Bunch Shift] A3, A4, A4R, B4, B5 Paper Weight: [Non-Sort] 52-300 gsm [Bunch Shift] 52-256 gsm |

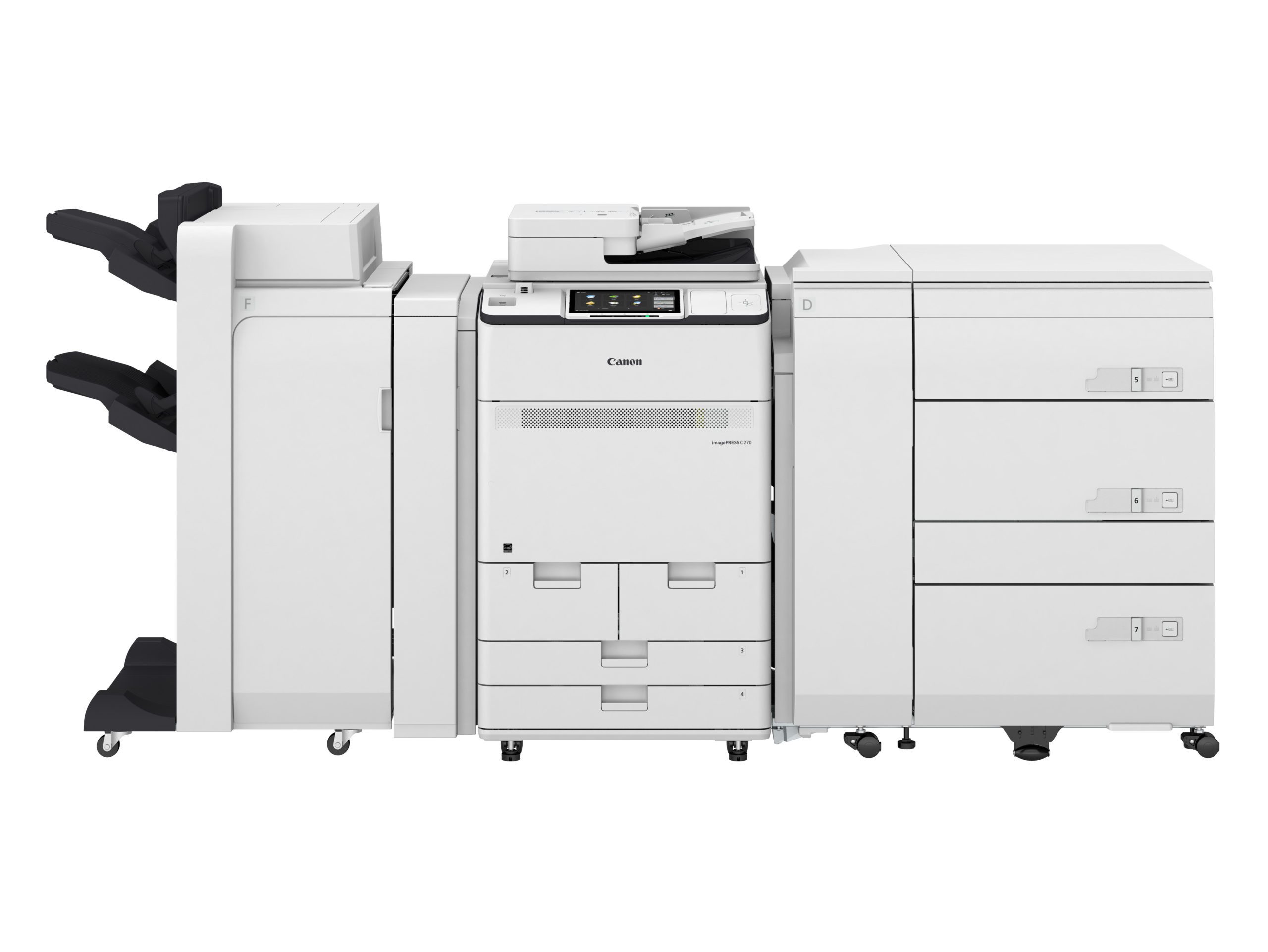

| STAPLE FINISHER-AG1 (External) Requires the Accessory Interface Kit-A2 |
Upper Tray Capacity: SRA3/A3/A4/A4R/A5/A5R/A6R/B4/B5/B5R: 1,000 sheets (64-324 gsm), 200 sheets (325-350 gsm)Long sheet*20 (210 x 487.8 mm to 330.2 x 762 mm) 100 sheets (52-79 gsm) Lower Tray Capacity: Paper Weight: 52-350 gsm Power Source: 220-240 V, 50-60 Hz, 8A |
| BOOKLET FINISHER-AG1 (External) Requires the Accessory Interface Kit-A2 |
Includes the above Staple Finisher-AG1 basic staple specifications Saddle Stitch Paper Size: SRA3, A3, A4R, B4, Custom size (210.0 x 279.4 mm to 330.2 x 487.7 mm) Saddle Stitch Staple Capacity: 25 sheets (52-80 gsm) (Including 1 cover sheet) Power Source: 220-240V, 50-60Hz, 8A Dimensions (W x D x H): 1,060 x 792 x 1,239 mm (when the extension tray is extended) Weight: Approx. 180 kg |
| 2/4 HOLE PUNCHER UNIT-A1 | Attached inside of either the STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC1 2 or 4 Holes (FRN) Paper Weight: 52-300 gsm Paper Size: 2 holes A3, A4, A4R, B4, B5, B5R; 4 holes A3, A4 Power Source: From the finisher |
| 4 HOLE PUNCHER UNIT-A1 | Attached inside of either the STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC1 4 Holes (SWE) Paper Weight: 52-300 gsm Paper Size: A3, A4, A4R, B4, B5, B5R Power Source: From the finisher |
| PUNCHER UNIT-BT1 (2/F4H) | Attached inside of either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1 2 or 4 Holes (FRN) Paper Weight: 52-300 gsm Paper Size: 2 holes: A3, A4, A4R, B4, B5, B5R, Custom size (182 x 182 mm to 297 x 432.0 mm excluding 203 x 257 mm to 297 x 270 mm). 4 holes: A3, A4, B4, B5, Custom size (257 x 182 mm to 297 x 432 mm) Power Source: From the finisher |
| PUNCHER UNIT-BU1 (S4H) | Attached inside of either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1 4 Holes (SWE) Paper Weight: 52-300 gsm Paper Size: A3, A4, B4, B5, Custom size: 257 x 182 mm to 297 x 432 mm Power Source: From the finisher |

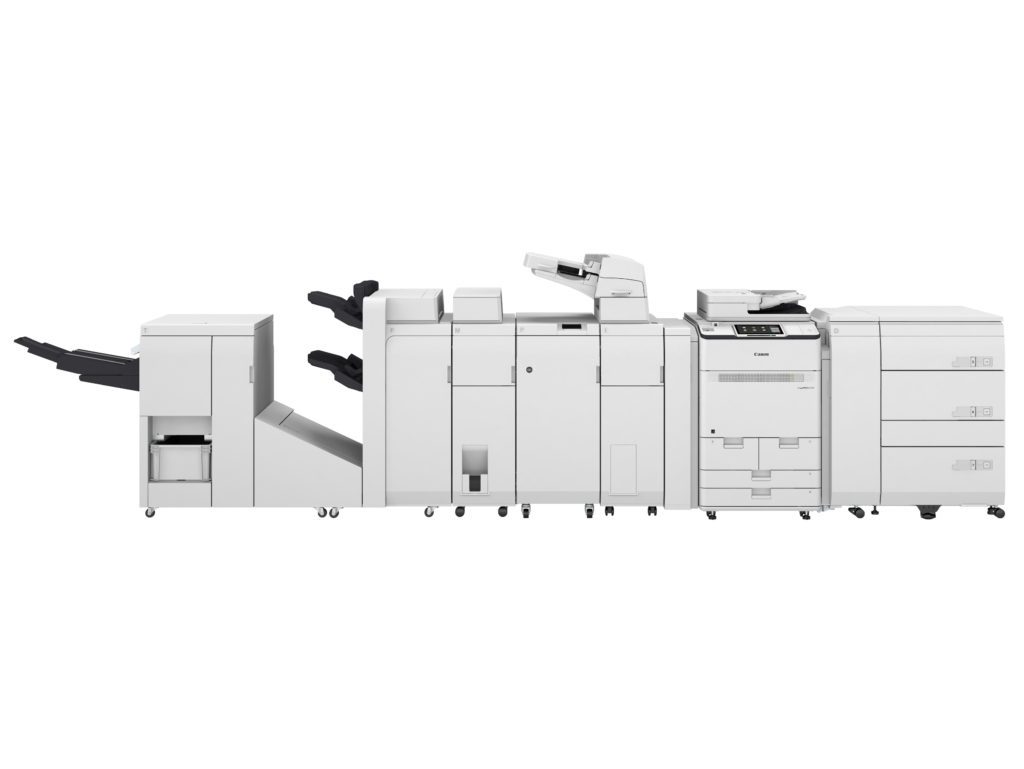

| Booklet Trimmer-F1 | Requires BOOKLET FINISHER-AG1 Paper Size: SRA3, A3, A4R, B4, Custom size: 210.0 x 279.4 mm to 330.2 x 487.7 mm Paper Weight: 52-220 gsm Trim Width: 2-28 mm Chip Tray Capacity: Approx. 5,000 sheets (Trim width 20 mm, A4, 80 gsm) Power Source: From the finisher Dimensions (W x D x H): 1,933 x 794 x 1,044 mm Weight: Approx. 152 kg (Attached to the device: width excluding belt conveyer) |
| DOCUMENT INSERTION/FOLDING UNIT-K1 | Requires either the STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC1 Number of Trays: 1 Tray Capacity: 100 Sheets (80 gsm) Supported Folding Type: Z-Fold, C-Fold Paper Type: [Z-Fold/C-Fold] Thin, Plain, Recycled, Colour, [Insertion Unit] Thin, Plain, Recycled, Colour, Thick, Letterhead, Bond, Coated, Tab, TexturedPaper Size: [Z-Fold] A3, A4R, B4, [C-Fold] A4R, [Insertion Unit] SRA3, A3, A4, A4R, B4, B5, B5R, 13″x19″ Paper Weight: [Z-Fold/C-Fold] 60-105 gsm, [Insertion Unit] 60-256 gsm Power Source: 100-240 V, 50/60 Hz, 1.0 A |
| Document Insertion Unit-R1 | Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1 Number of Trays: 2 Tray Capacity: Up to 100 Sheets (with 80 gsm paper) Upper Tray: Up to 200 sheets Lower Tray: Up to 200 sheets Paper Type for Insertion: Thin, Plain, Recycled, Colour, Heavy, Coated, Textured, Bond, Pre-punched, Letterhead, Tab Paper Size for Insertion: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Paper Weight for Insertion: 52-300 gsm Power Source: 100-240 V, 50/60 Hz, 1.0 A Dimensions (W x D x H): 336*21 x 793 x 1,407 mm*21 Weight: Approx. 61 kg |
| Paper Folding Unit-K1 | Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1 Supported Folding Type: Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel Fold Paper Type: Thin, Plain, Recycled, Colour, Bond Paper Sizes: Z-Fold: A3, A4R, B4, Accordion Z-Fold/ C-Fold, Half-Fold/ Double Parallel Fold/ Half-Fold: A4R Paper Weight: Z-Fold/ Accordion Z-Fold/ C-Fold/ Half-Fold: 52-105 gsm Double Parallel Fold: 52-90 gsm Power Source: From the finisher Dimensions (W x D x H): 336 x 793 x 1,190 mm Weight: Approx. 71 kg |
| Staple Cartridge | Staple-N1 – For stapling (3 x 5,000 pcs) (for STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1) Staple-P1 – For saddle stitching (2 x 5,000 pcs) (for BOOKLET FINISHER-AG1)Staple Cartridge-X1 – For stapling (3 x 5,000 pcs) (for STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC1) Staple Cartridge-Y1 – For saddle stitching (2 x 2,000 pcs) (for BOOKLET FINISHER-AC1) |
