iPF TM-305

iPF TM-305
An affordable multifunction printer, purpose designed for small CAD environments. Compact and quiet, high quality large format prints are quick to produce.

"*" indicates required fields

Step 1 of 2

Name

Introducing the TM-305
A printer that provides all the flexibility and functionality of more expensive printers. That includes incredible value added benefits like having a hard drive and the ability to print directly from USB. For small businesses, it’s reason to celebrate. Now there’s no reason why a small business can’t be as productive and as competitive as a larger one.

Ink tanks of all colours are available to you in two sizes – 300mL and 130mL. You can choose the tank size that best suits your output or your printing environment. Furthermore, you have the option of controlling your ink costs more effectively by selecting a combination of different sizes. Starter ink tanks are provided in 130mL for MBK and 90mL for C, M, Y, and BK.

Sub-ink Tanks
These enable ink tank replacement during printing. Even if the ink tanks run out of ink, printers will keep some ink in reserve in sub-ink tanks, and will use this as needed to enable ink tank replacement during printing. Not only does this prevent downtime in continuous printing, it makes it easy to use up all the ink in the tanks, reducing your costs. A visual display on the operation panel indicates when the sub-ink tanks are full, half full, or empty

5-color LUCIA TD pigment ink
This offers high-quality, low-cost printing on plain paper for posters or drawings, and produces vibrant colours, even on inkjet plain paper. As it can provide MBK with a higher surface tension than earlier models, the print quality is denser, with better-defined edges. As a result, you can print high-precision drawings with fine lines and sharp text very economically. Furthermore, as pigments are kept closer to the surface through the process, the colours are simply more vibrant. Even on inexpensive inkjet plain paper the colours tend to stand out more. In fact, you may even be able to consider saving money through in-house printing on work you previously had to outsource.

Faster printing
Continuous printing is now faster thanks to the improved printing sequence optimisation, and that means your business deadlines are now just that much more attainable.

Lower ink consumption
Ink consumption is just as low, and sometimes lower, than previous models, thanks to the excellent colour performance of LUCIA TD ink, as well as new optimised image processing parameters.

Flexible paper stacking options
In addition to a standard print basket, a flat stacker is available to you which you can set in any of three positions: (1) regular position, to hold a single sheet; (2) draped position, to hold 20 sheets; and (3) flat position, which also holds 20 sheets. Documents are stacked face down in the order of printing, eliminating the hassle of having to re-sort them and allowing printed documents to be easily removed in front of the printer.

Quieter Printer
Office environments are noisy enough as it is, so you’ll be glad to know that the TM-305 has been designed to operate as quietly as possible, reducing distractions in your work environment to a minimum. All the usual sources of printing noise have been carefully dampened to make your printing experience more pleasant.

Printer
Printing Technology Inkjet
Color Type Color
Configuration 5 x Individual Cartridge
Ink Type Pigment-Based (Black, Cyan, Magenta, Matte Black, Yellow)
Ink Color 1 x Black
1 x Matte Black
1 x Cyan
1 x Magenta
1 x Yellow
Compatible Cartridges Canon PFI-120, Canon PFI-320
Number of Nozzles 15,360 Nozzles (Total)
5120 Nozzles (Matte Black)
2560 Nozzles (Per Other Color)
Print Resolution 2400 x 1200 dpi
Borderless Printing Yes
Printer Language Standard: HP-GL/2, HP-RTL, JPEG, PDF, SG Raster
Minimum Ink Droplet Size 5 pL (Black, Cyan, Magenta, Matte Black, Yellow)
Printer Media Handling
Media Handling Front Tray, Media Cutter, Output Tray, Roll Feed
Media Sizes Sheet Width: 8 to 36″ / 20.3 to 91.4 cm
Roll Length: 8 to 59′ / 0.2 to 18 m
Sheet Length: 8 to 63″ / 20.3 to 160 cm
Media Thickness Sheet: 3.9 to 31.5 mil / 0.1 to 0.8 mm
Media Roll Diameter 5.9″ / 15 cm (Outer)
Connectivity
Inputs/Outputs USB 2.0, RJ45
Wireless Wi-Fi
Direct Printing USB Port, Wi-Fi Direct
Hard Drive 500 GB
Operating System Support Windows, iOS, macOS/OS X
OS Compatibility Windows
iOS
macOS
*As of February, 2021: Check with manufacturer for the most up-to-date compatibility
Environmental
Operating Temperature 59 to 86°F / 15 to 30°C
Operating Humidity 10 to 80%
General
Display Size 3″
Display Type Color Touchscreen LCD
Power Source AC Adapter (Included)
Battery None
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 3.6 W (Standby)
69 W (Maximum)
0.3 W (Off)
Dimensions (W x H x D) 51 x 42 x 35″ / 129.5 x 106.7 x 88.9 cm (with Basket Open, with Stand)
Weight 134 lb / 60.8 kg (with Stand)

Why Choose Datacord?

We’re Photocopier &
Printer experts

We’re
SA locals

We put
customer service first

Fast
Response Times

We
Pay It Forward

What our Clients Say

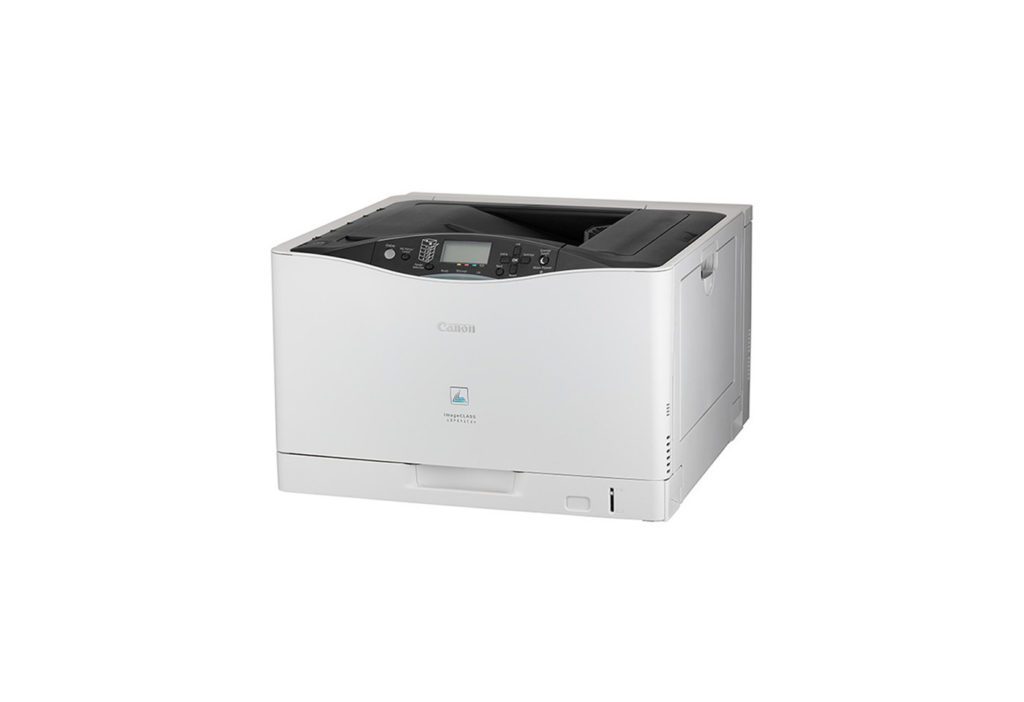

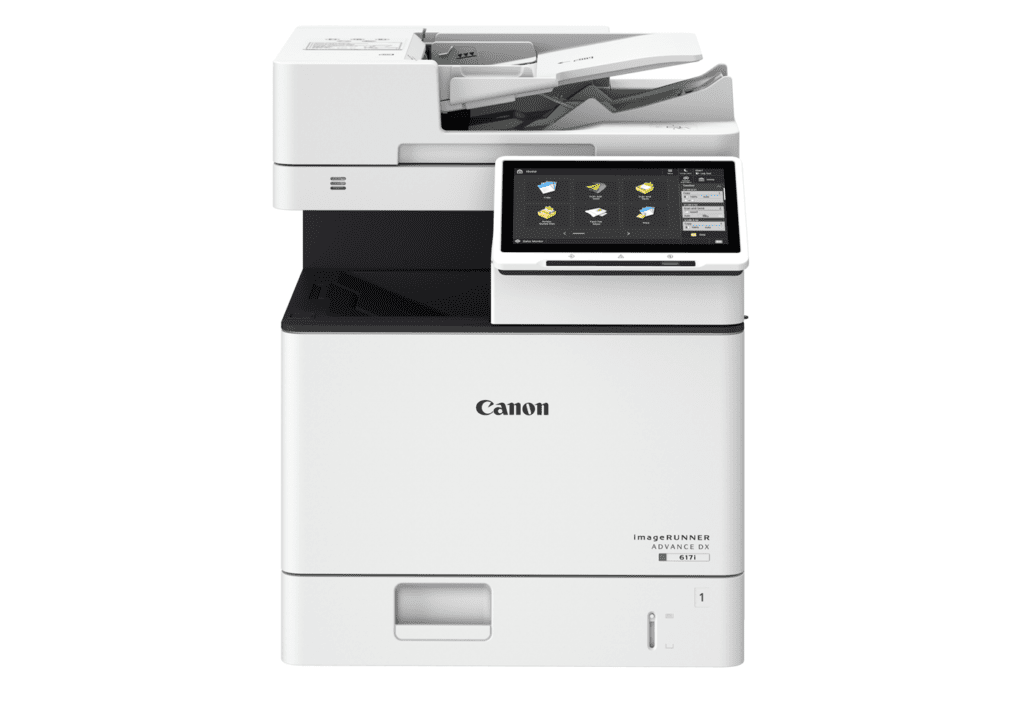

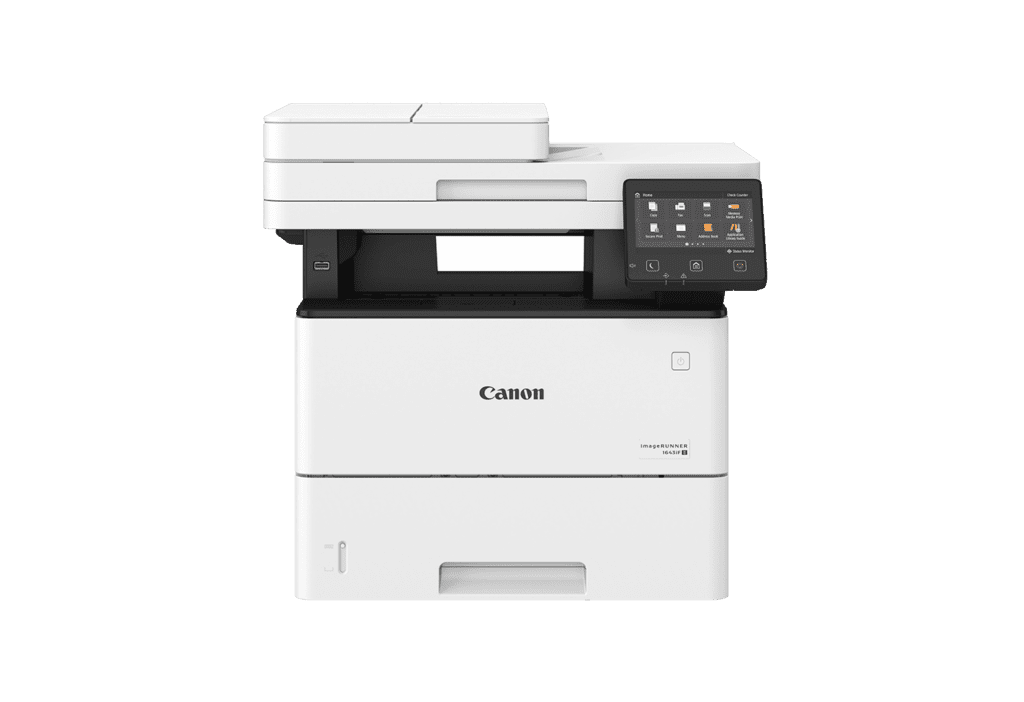

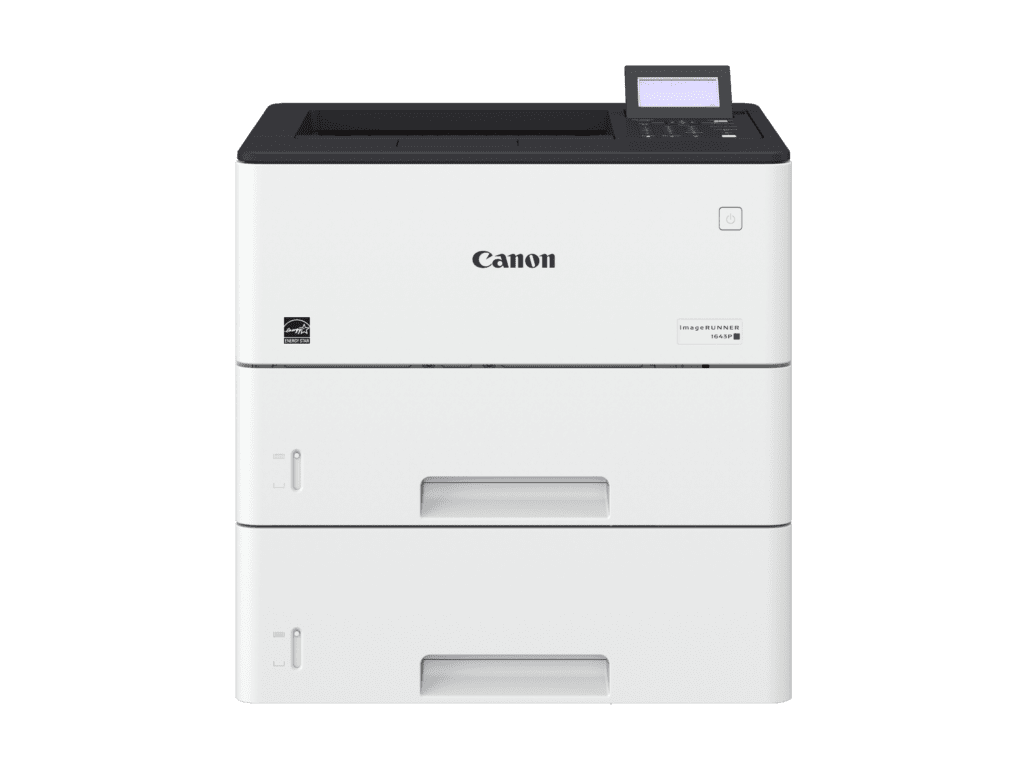

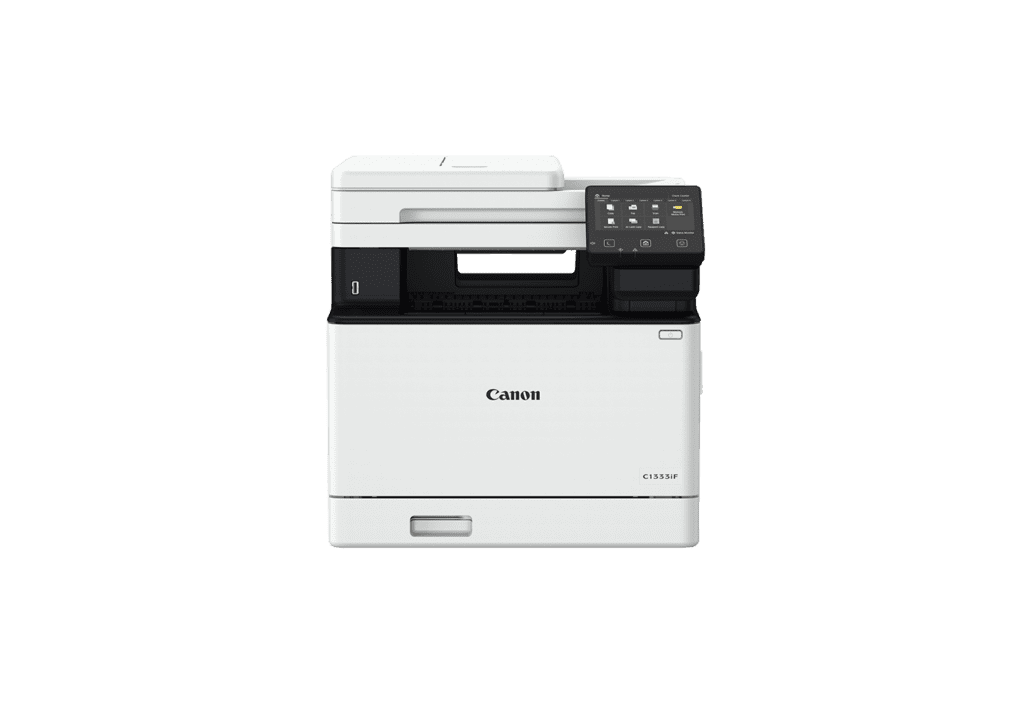

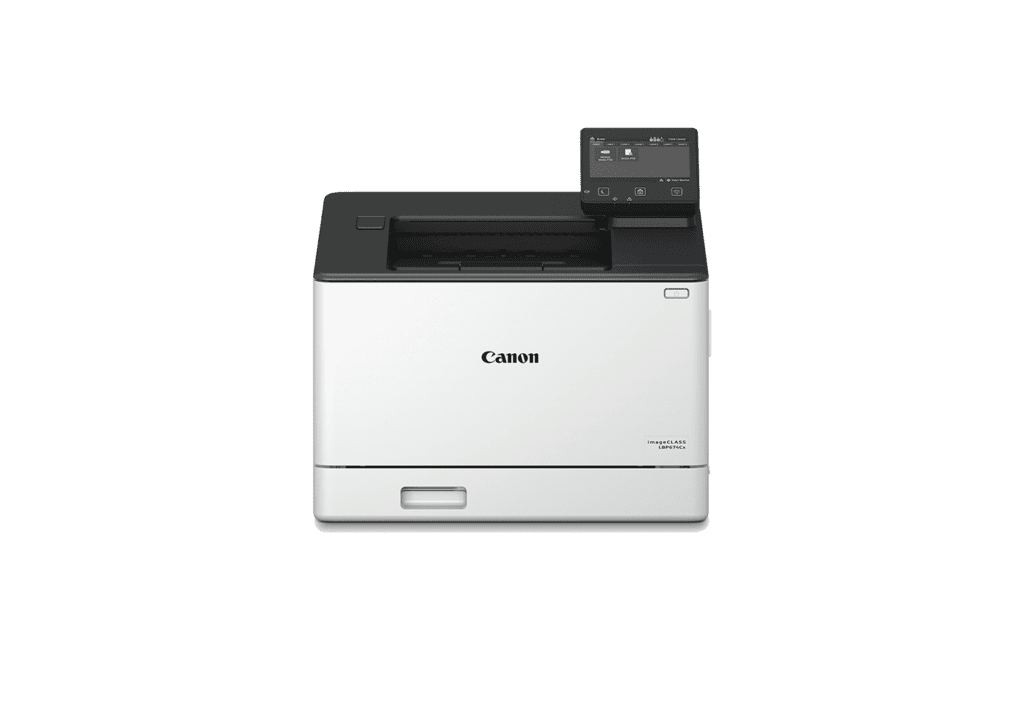

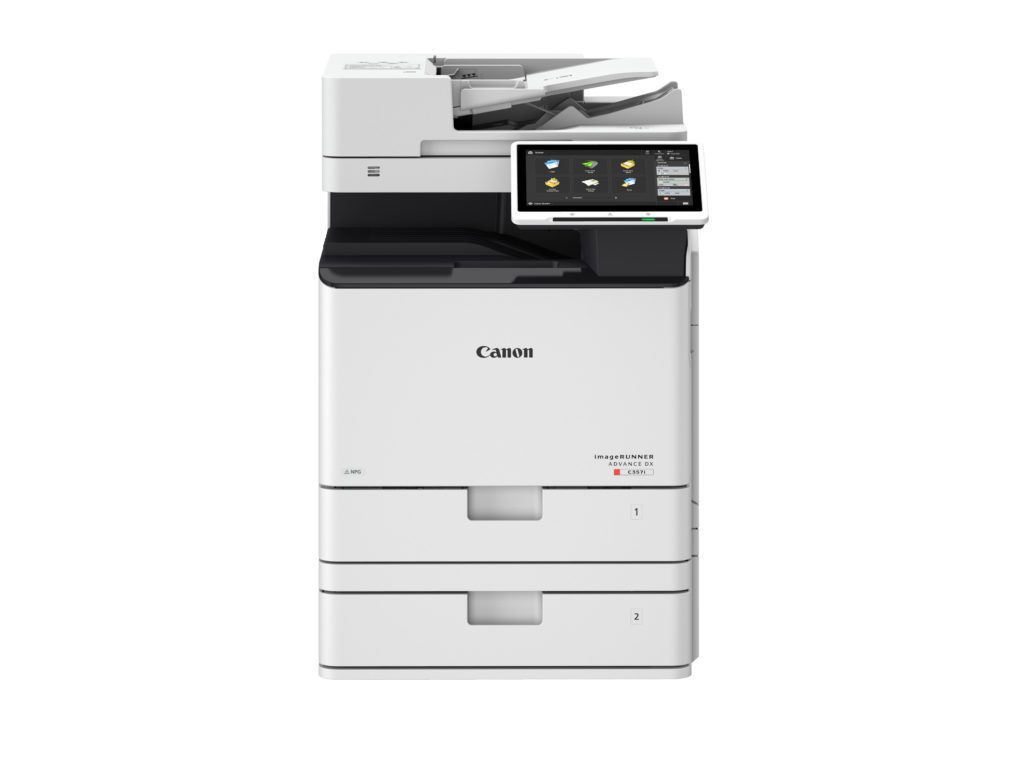

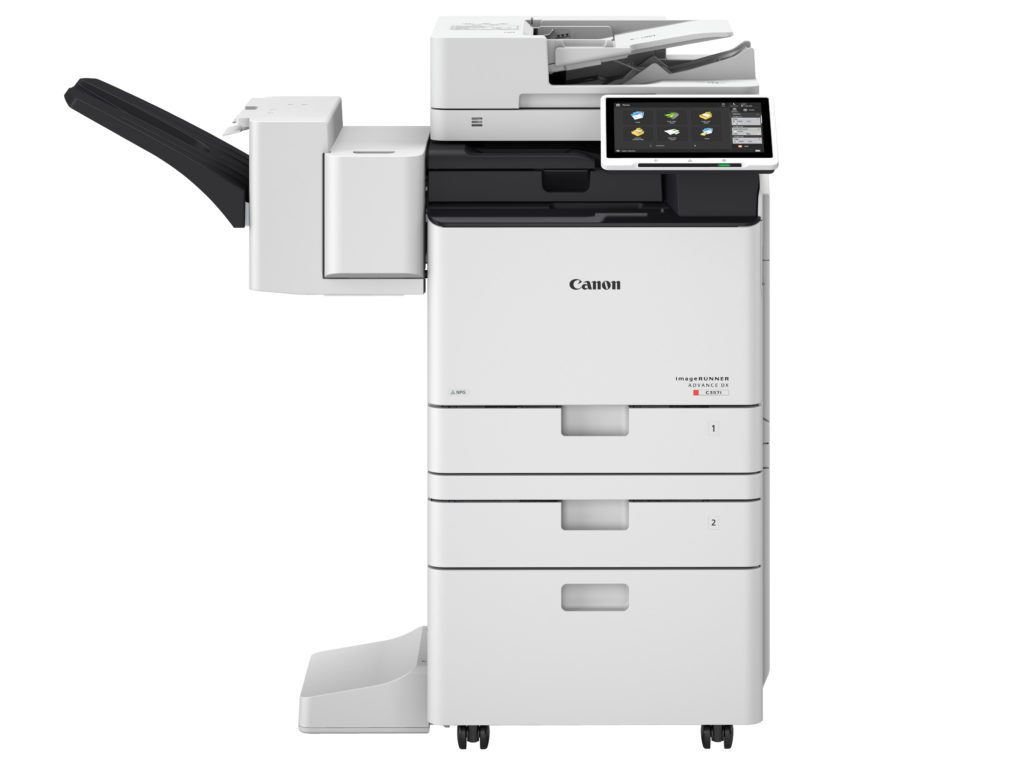

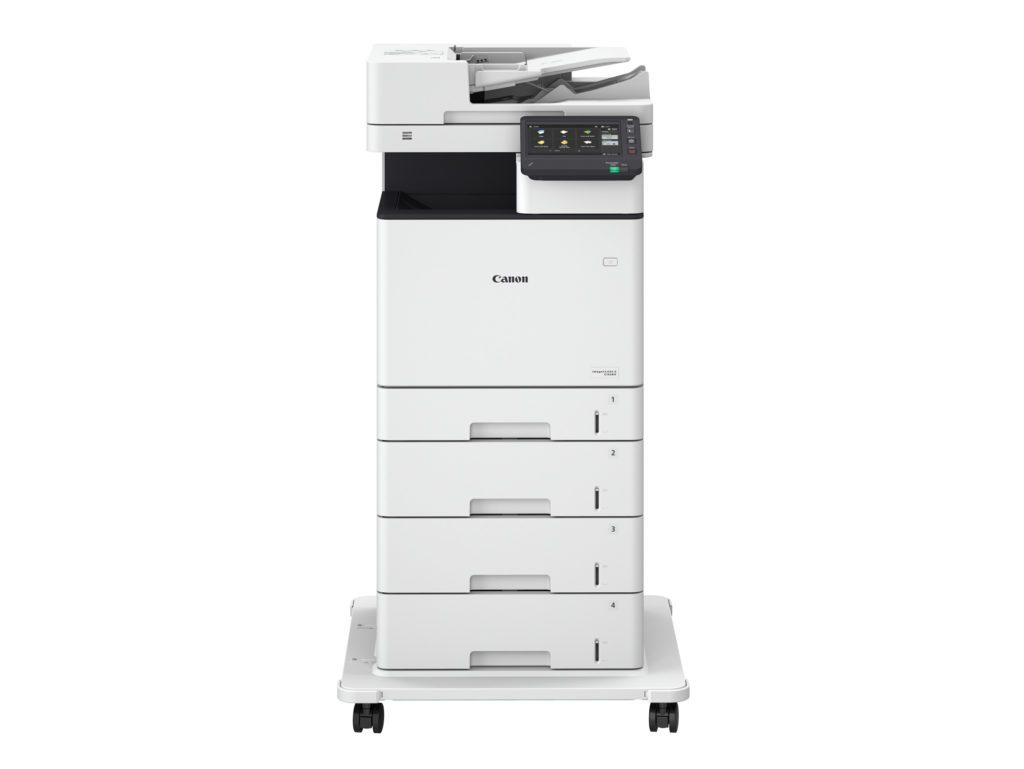

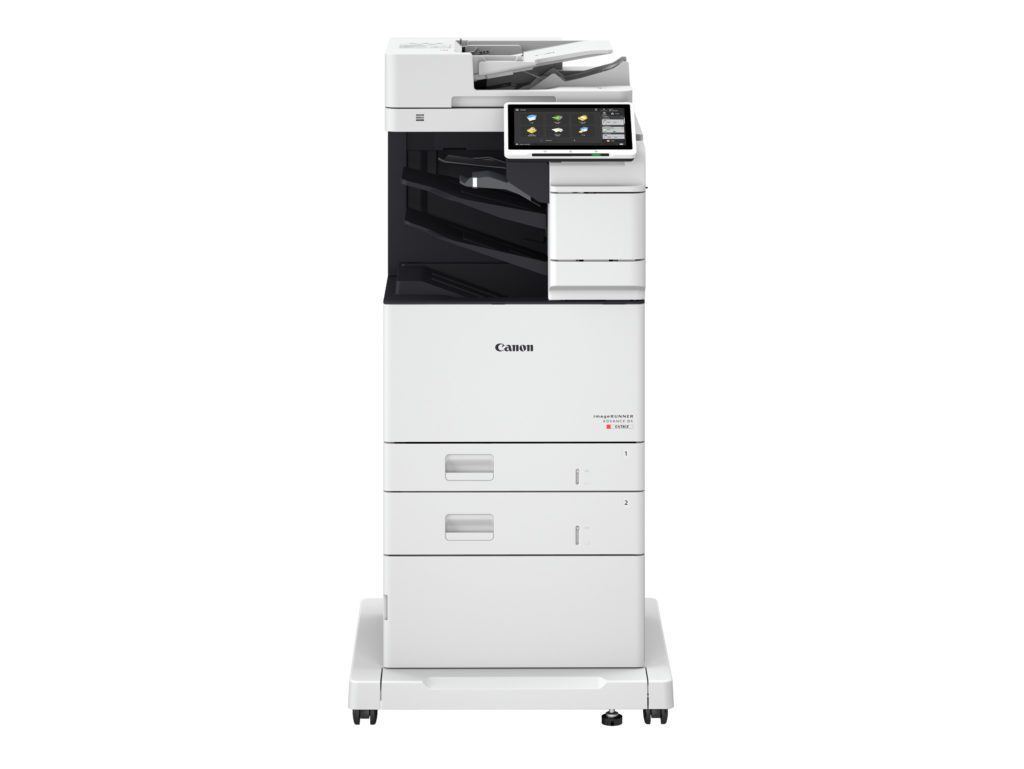

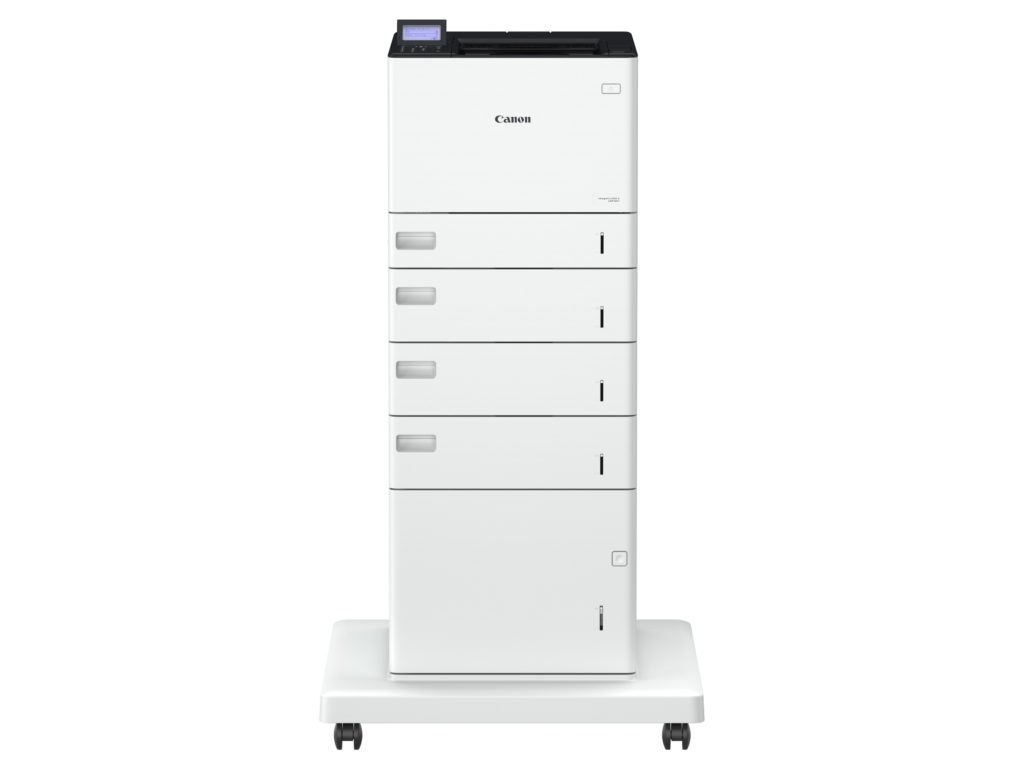

Similar Products
