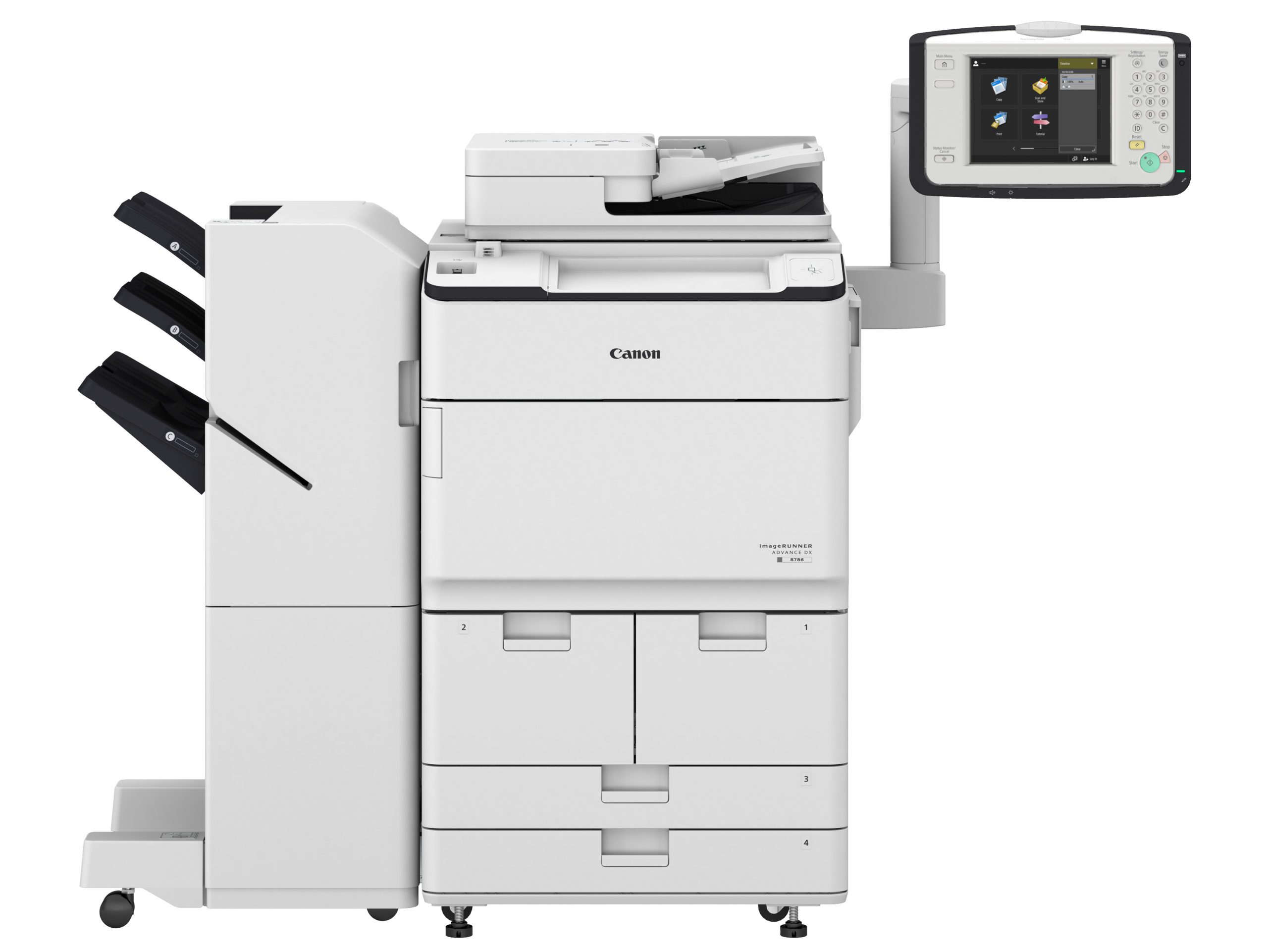

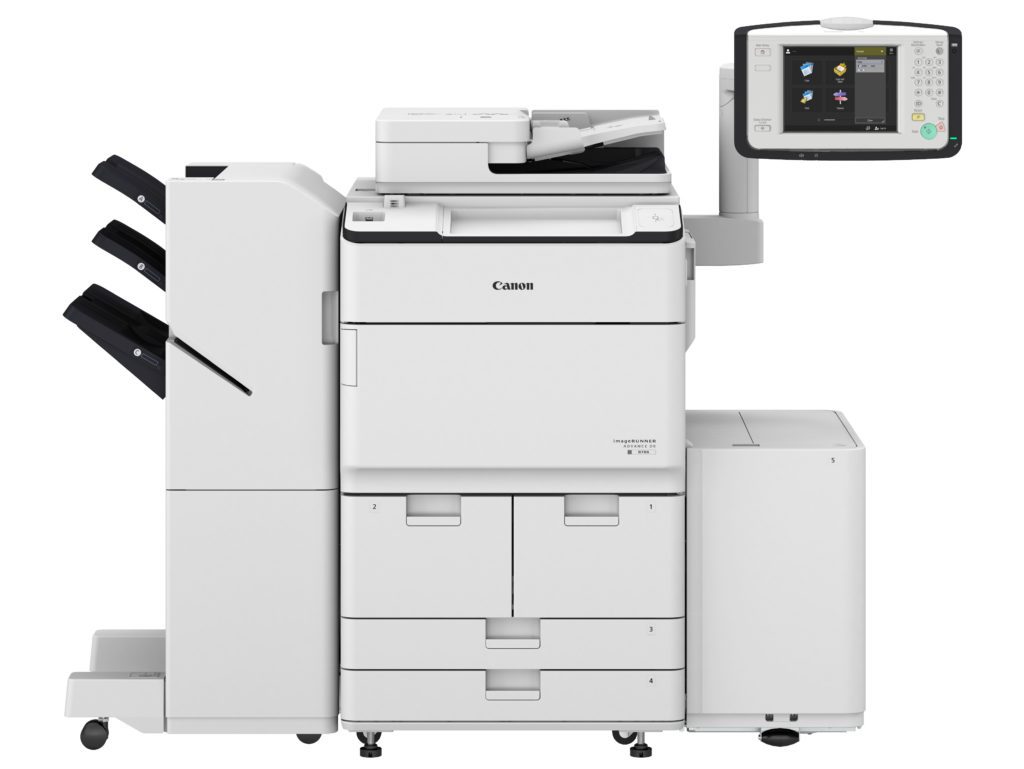

DX8786i

The Canon DX8786i model is a feature-rich multifunction printer designed to meet the needs of businesses and offices. With its impressive print speed of 70 pages per minute and advanced scanning capabilities, it enables efficient document handling and enhances productivity.

"*" indicates required fields

Step 1 of 2

Name

Phone*

Email*

Workflow Efficiency

10.1″ intuitive touchscreen with smartphone-like usability.
A unique, customized experience tailored to individual preferences using My ADVANCE.
Supports mobile solutions and integration with many popular cloud services like Google Drive.
Scan and convert documents to searchable digital files in a variety of file formats.
Integration with Canon and various third-party software with embedded application platform.
Hot Folders allow users to drag and drop a file into a hot folder, and automatically print with predefined settings such as number of copies and finishing requirements.

Security

Advanced standard security feature set to help safeguard sensitive information and assist in regulatory compliance.
Integrates with existing, third-party Security Information and Event Management (SIEM) systems to help provide real-time comprehensive insights into potential threats to the network and printers.
Technology to verify that the device boot process, firmware, and applications initialize at startup, without any alterations or tampering by malicious third parties. During operation, McAfee Embedded Control utilizes a whitelist to protect against malware and tampering of firmware and applications.*
Security policy settings can be controlled with a dedicated password, configured from a central location, and exported to other supported devices.
Control access to the device and specific features, using a host of flexible authentication methods – PIN code, user name/password, or card access.

* These features are available on third generation imageRUNNER ADVANCE 3rd edition and imageRUNNER ADVANCE DX models only. McAfee Embedded Control requires Unified Firmware Platform v3.9 or greater.

Cost Management

Track and assess print, copy, scan, and fax usage and allocate costs to departments or projects.
Apply print policies and restrict usage by user to help reduce unnecessary printing and contribute to cost efficiency.
Standard cloud-based solution provides a centralized dashboard with up-to-the-minute insights into printer activity.
Upgrade to uniFLOW server or cloud-based solutions for full accounting and reporting for compatible Canon and third-party devices, pull printing, job routing, and powerful scan workflows.

Device and Fleet Management

Designed for quick, easy deployment.
Remote diagnostics and parts life management for proactive maintenance and rapid fixes.
Easy and intuitive to monitor device status and consumable levels, turn off devices remotely, observe meter readings, manage settings, and implement security policies.
Common firmware and regular updates with Unified Firmware Platform (UFP) for continuous improvements and consistency across a fleet.

Quality and Reliability

Canon’s signature reliability and engine technologies help keep productivity high and minimize the impact on support resources.
Outstanding imaging technologies and toner allow for crisp text and consistent images in rich black-and-white tones.
Designed to achieve maximum uptime with status notifications that help keep supplies replenished and intuitive maintenance videos for consumables replacement.
imageRUNNER ADVANCE models have received many awards and recognition from leading industry analysts, often referencing strong reliability.

Sustainability

A combination of fusing technologies and low-melting-point toner minimizes power requirements and helps achieve low energy consumption.
Encourage environmentally conscious work practices by enabling multiple settings that can help save paper and energy.
ENERGY STAR® certified and rated EPEAT® Gold.

MAIN UNIT
Type	Monochrome Laser Multifunctional
CORE FUNCTIONS	Standard: Print, Copy, Scan, Send, Store Optional: Fax
PROCESSOR	1.75 GHz Dual Core Processor
CONTROL PANEL	Standard: 10.1″ TFT LCD WSVGA Color Flat-panel Optional: 10.4″ TFT LCD SVGA Color Upright-panel
MEMORY	3.0 GB RAM
HARD DISK DRIVE	Standard: 250 GB Maximum: 1 TB
INTERFACE CONNECTION	Network: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Optional: NFC, Bluetooth Low Energy Others Standard: USB 2.0 (Host) x1 , USB 3.0 (Host) x1, USB 2.0 (Device) x1 Optional: Copy Control Interface
PAPER CAPACITY (LETTER, 20 LB. BOND)	Standard: 4,360 Sheets Maximum: 8,020 Sheets
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)	With Copy Tray 250 Sheets With External Finishers: 5,000 Sheets (with Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO)
PAPER SOURCES (LETTER, 20 LB. BOND)	Standard: Two 550-sheet Paper Cassettes, 100-sheet Stack Bypass Optional (up to three): Two 550-sheet Paper Cassettes (Cassette Feeding Unit-AN1), 2,450-sheet Paper Deck (High Capacity Cassette Feeding Unit-B1), 2,700-sheet Paper Deck (Paper Deck Unit-F1)
FINISHING CAPABILITIES	With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Halffold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming
SUPPORTED MEDIA TYPES	Multi-purpose Tray: Thin, Plain, Recycled, Color, Heavy, Tracing,5 Bond, Transparency, Labels, Pre-punched, Letterhead, Tab Paper Decks: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead Paper Cassettes: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead, Tab
SUPPORTED MEDIA SIZES	Multi-purpose Tray: 13″x19″, 12″x18″, 11″x17″, Legal, Letter, Letter-R, Executive, Statement-R Custom Size/Free Size (4″ x 5-7/8″ to 13″ x 19-1/4″) Paper Decks: Letter Paper Cassettes: 13″x19″, 12″x18″, 11″x17″, Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2″ x 7-1/8″ to 13″ x 19-1/4″)
SUPPORTED MEDIA WEIGHTS	Paper Decks / Cassettes: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m²) Multi-Purpose Tray: 14 lb. Bond to 140 lb. Cover (52 to 256 g/m²) Duplexing: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m²)
PRINT / COPY SPEED	Up to 86 ppm (Letter) Up to 67 ppm (Letter-R) Up to 57 ppm (Legal) Up to 43 ppm (11″ x 17″)
WARM-UP TIME	From Power On: Approx. 60 Seconds From Sleep Mode: Approx. 60 Seconds Quick Startup Mode: Approx. 4 Seconds
DIMENSIONS (W x D x H)	Standard: 26-3/8″ x 30-3/8″ x 46-5/8″ (670 mm x 770 mm x 1,185 mm) With Optional Upright Touch-panel: 46-1/8″ x 30-3/8″ x 49-1/4″ (1,170 mm x 770 mm x 1,252 mm)
INSTALLATION SPACE (W x D x H)	Basic: 60-3/8″ x 53-1/4″ (1,533 x 1,353 mm) Fully Configured: 199-1/2″ x 55-1/2″ (5,068 x 1,409 mm)11
WEIGHT⁴	Standard: Approx. 487.2 lb (221 kg) With Optional Upright Touch-panel: Approx. 496.0 lb (225 kg)

PRINT SPECIFICATIONS
PRINT RESOLUTION	1200 x 1200
STANDARD PAGE DESCRIPTION LANGUAGES	UFR II, PCL®6, Adobe® PS® 3
SUPPORTED FILE TYPES	PDF, TIFF, JPEG, EPS,13 XPS
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES⁶	A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.
FONTS	PCL: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts15 PS Fonts: 136 Roman
OPERATING SYSTEM	UFRII/PS: Windows®7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later) PCL: Server 2008/Windows 7/Server 2008 R2/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016 PPD: Server 2008/Windows 7/Server 2008 R2/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016, MAC OS X (10.9 or later)

COPY SPECIFICATIONS
FIRST-COPY-OUT-TIME (LETTER)	As fast as 3.7 seconds
COPY RESOLUTION	600 x 600
MULTIPLE COPIES	Up to 9,999 Copies
MAGNIFICATION	25%-400% (1% Increments)
PRESET REDUCTIONS/ENLARGEMENTS	25%, 50%, 64%, 73%, 78%, 100%(1:1), 121%, 129%, 200%, 400%

SCAN SPECIFICATIONS
TYPE	Single-pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY	Up to 200 Sheets (20 lb. Bond)
DOCUMENT FEEDER SUPPORTED MEDIA SIZES	11″ x 17″, Legal, Letter, Letter-R, Statement, Statement-R, Custom Size [2-3/4″ x 5-1/2″ to 12″x17″ (70.0 mm x 139.7 mm to 304.8 mm x 431.8 mm)]
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS	Single-sided Scanning: 13 lb. Bond to 80 lb. Cover (50 to 220 g/m²) Double-sided Scanning: 13 lb. Bond to 80 lb. Cover (50 to 220 g/m²)
PLATEN ACCEPTABLE ORIGINALS	Sheet, Book, 3-Dimensional Objects
PLATEN MAXIMUM SCANNING SIZE	UP to 11-3/4″ x 17″ (297 mm x 431.8 mm)
PULL SCAN	Color Network ScanGear2 for both Twain and WIA Supported OS: Windows 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
SCAN RESOLUTION	Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Copy: Up to 600 x 600 Scan for Fax: Up to 600 x 600
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES	A range of solutions is available to provide scanning to mobile devices or and cloud-based services depending on your requirements.
SCAN SPEED (LETTER)	Single-sided Scanning BW/Color: 135/135 (300 dpi), 135/80 (600 dpi) Double-sided Scanning BW/Color: 270/270 (300 dpi), 165/90 (600 dpi)

SEND SPECIFICATIONS
DESTINATION	Email/Internet Fax (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 Fax (Optional), IP Fax (Optional)
ADDRESS BOOK	LDAP (2,000)/Local (1,600)/Speed dial (200)
COMMUICATION PROTOCOL	File: FTP (TCP/IP), SMB 3.0 (TCP/IP), WebDAV Email: SMTP, POP3
FILE FORMAT	TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS(Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

FAX SPECIFICATIONS (OPTIONAL)
MAXIMUM NUMBER OF CONNECTION LINES	4
MODEM SPEED	Super G3: 33.6 kbps G3: 14.4 kbps
COMPRESSION METHOD	MH, MR, MMR, JBIG
RESOLUTION	400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING / RECORDING SIZE	Statement-R to 11″ x 17″
FAX MEMORY	Up to 30,000 Pages (2,000 Jobs)
SPEED DIALS	Max. 200
GROUP DIALS / DESTINATIONS	Max. 199 Dials
SEQUENTIAL BROADCAST	Max. 256 Addresses
MEMORY BACKUP	Yes
