Work Efficiently
Security
Quality & Reliablity
Device & Fleet Management
| Machine Type | A3 Monochrome Laser Multifunctional |
| Core Functions | Print, Copy, Scan, Send, Store and Optional Fax |
| Processor | Canon Dual Custom Processor (Shared) |

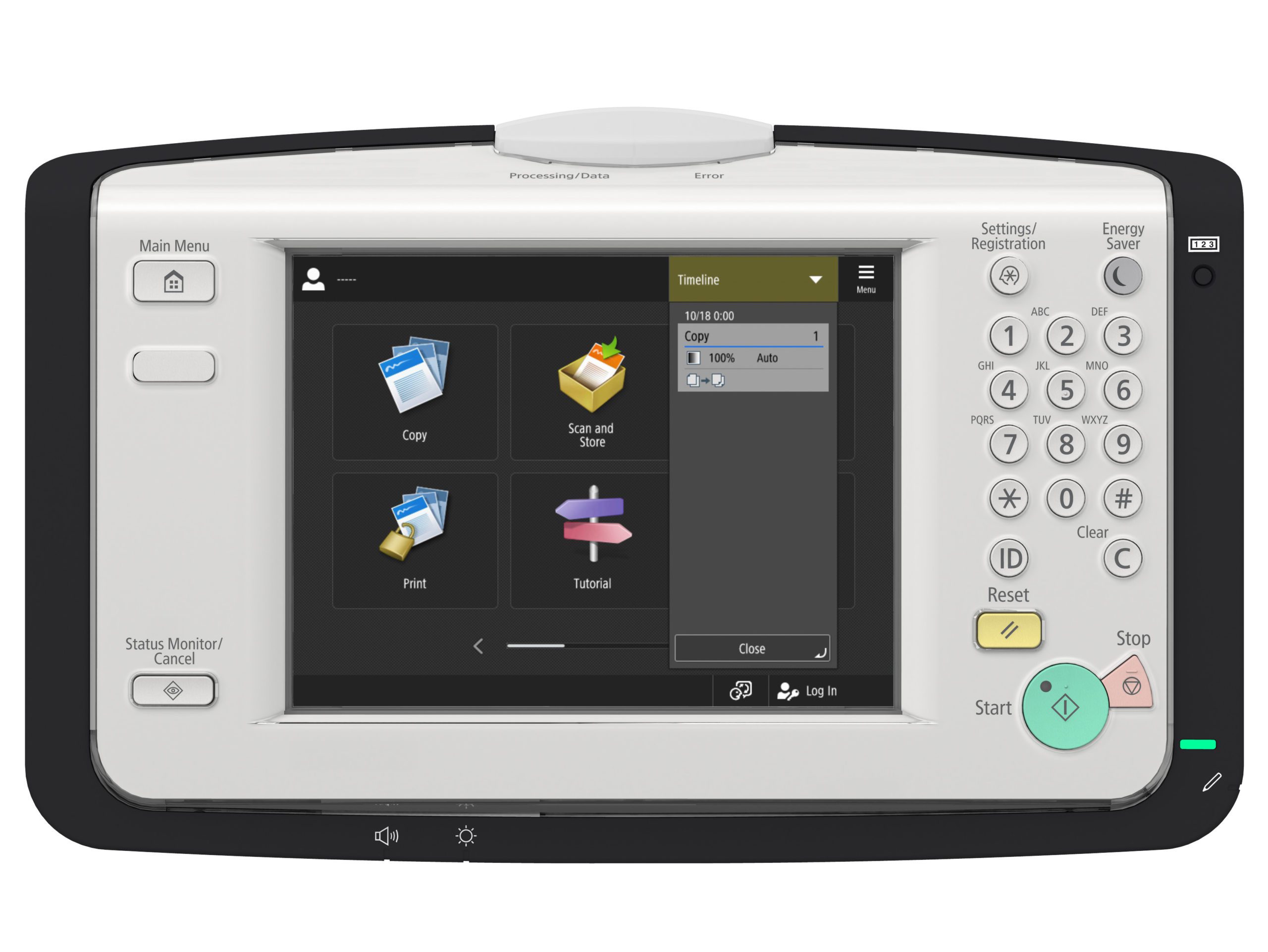

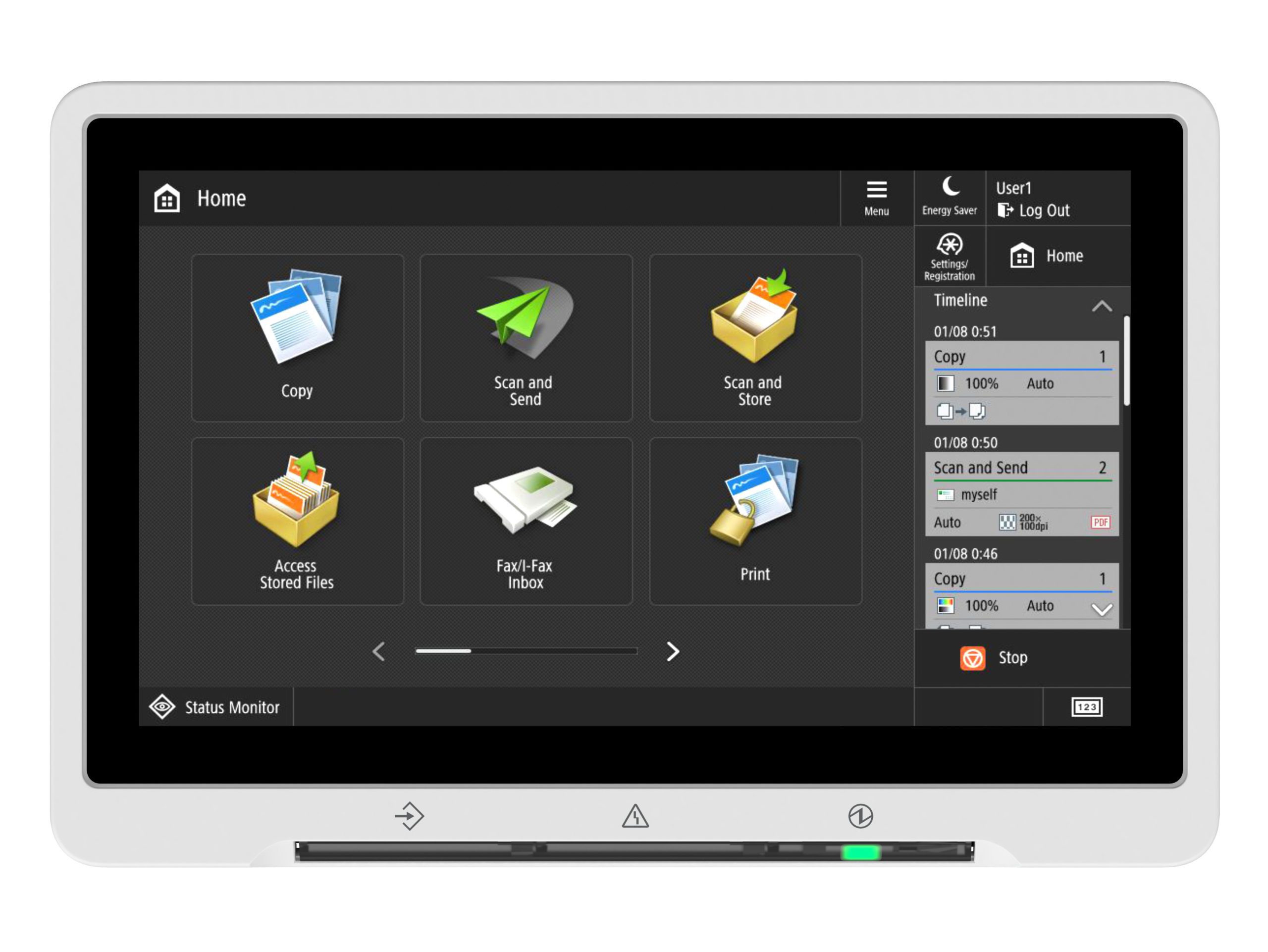

| Control Panel | Standard: 10.1″ TFT LCD WSVGA Colour Touch panel Optional: 10.4″ TFT LCD SVGA Colour Upright Touch panel |
| Memory | Standard: 3.0GB RAM |
| Hard Disk Drive | Standard*1: 320GB (available disk space: 250GB) Optional: 250GB, 1TB |
| Mirroring Hard Disk Drive | Optional |
| Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Optional: NFC, Bluetooth Low EnergyOTHERS Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1 Optional: Serial Interface, Copy Control Interface |
| Paper Supply Capacity (A4, 80 gsm) | Standard: 4,200 sheets 100-sheet Multi-purpose tray x 1 1,500-sheet Paper Deck x 2 550-sheet Paper Cassette x2Maximum: 7,700 sheets (with Paper Deck Unit-E1 or POD Deck Lite-C1) |
| Paper Output Capacity (A4, 80 gsm) | 250 Sheets (with Copy Tray-R2) Maximum: 3,500 Sheets (with Staple Finisher-AC1 or Booklet Finisher-AC1) |

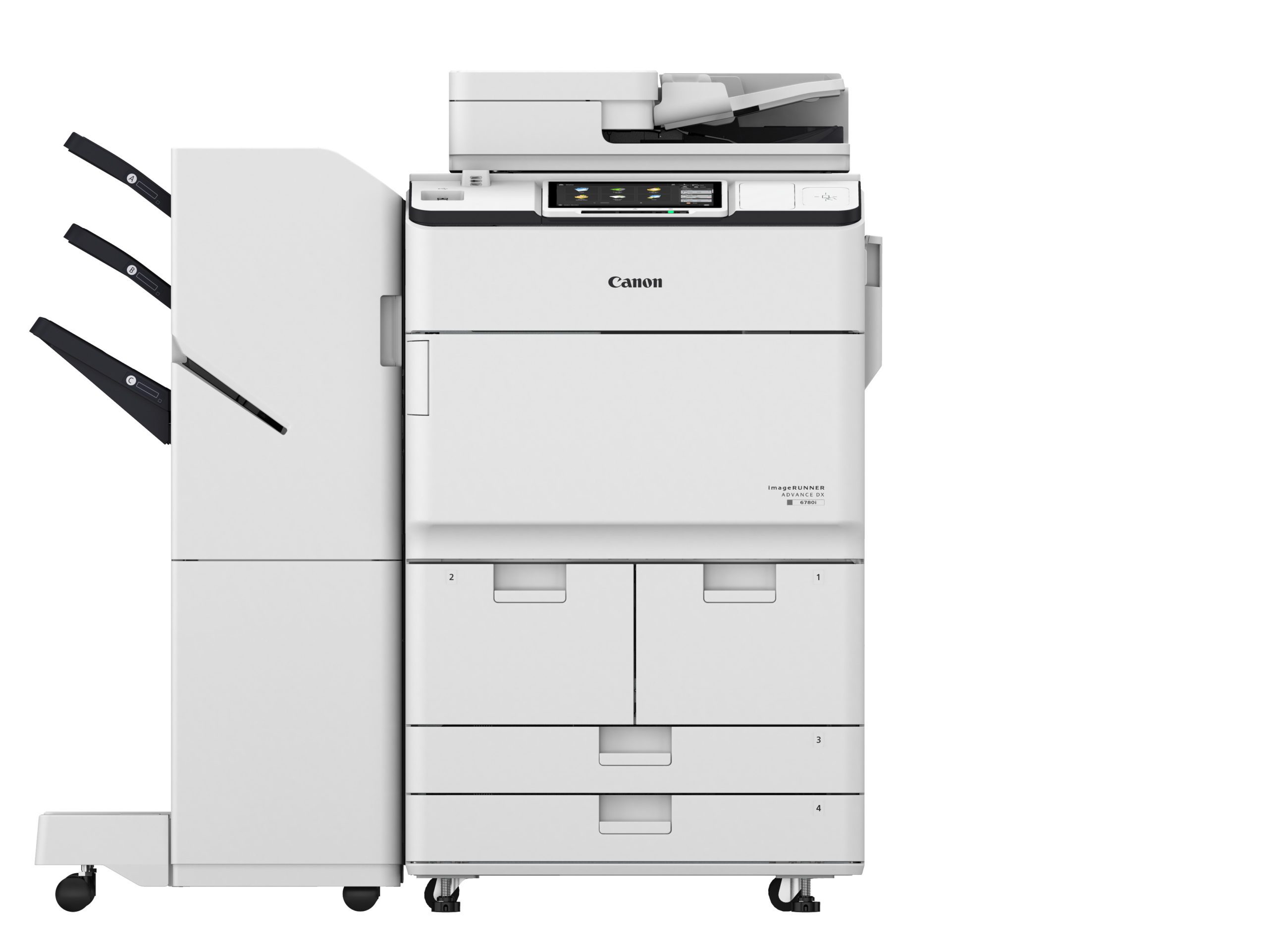

| Finishing Capabilities | With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, C-fold |
| Supported Media Types | Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, TabPaper Decks (Right/Left): Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead Paper Cassettes (Upper/Lower): |
| Supported Media Sizes | Multi-purpose tray: Standard size: A3, A4, A4R, A5*3, A5R, A6R*4, B4, B5, B5R Custom size: 100.0 x 148.0 mm to 297.0 x 487.7 mm Free size: 100.0×148.0mm to 297.0mm×487.7mmPaper Decks (Right/Left): Standard size: A4, B5 Paper Cassettes (Upper/ Lower): |
| Supported Media Weights | Multi-purpose tray: 52 to 256 gsm Paper Deck (Right/Left): 52 to 220 gsm Paper Cassette (Upper/Lower): 52 to 220 gsm Duplex: 52 to 220 gsm |
| Warm-up Time | Quick Start-up Mode: 4 seconds or less*5 From Sleep Mode: 30 seconds or less From Power On: 30 seconds or less*6 |
| Dimensions (W x D x H) | 670 x 770 x 1,185 mm With optional Upright Control Panel: 1,170 x 770 x 1,252 mm |
| Installation Space (W x D) | Basic: 1,533 x 1,353 mm (with Multi-purpose tray/upper-right cover open + Front cover open + Copy Tray) Fully configured: 2,436 x 1,353 mm (with POD Deck Lite-C1 + Document Insertion/Folding Unit-J1 + Booklet Finisher-AC1/Staple Finisher-AC1 + Main unit Front cover open ) |
| Weight | iR-ADV DX 6780i/6765i/6755i: Approx. 219 kg*7, Approx. 223 kg*8 |
| Print Speed | iR-ADV DX 6780i: Up to 80 ppm (A4), up to 40 ppm (A3), up to 58 ppm (A4R), up to 35 ppm (A5R)iR-ADV DX 6765i: Up to 65 ppm (A4), up to 32 ppm (A3), up to 47 ppm (A4R), up to 35 ppm (A5R) iR-ADV DX 6755i: |
| Print Resolution (dpi) | 1,200 x 1,200 |
| Page Description Languages | Standard: UFR II, PCL6 Optional: Adobe®PostScript®3™ |
| Direct Print | Supported file types: PDF, EPS, TIFF/JPEG, and XPS |
| Printing from Mobile and Cloud | AirPrint, Mopria, Google Cloud Print, Canon Business PRINT and uniFLOW Online
A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information. |
| Fonts | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*9 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*10 |
| Print Features | Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer |
| Operating System | UFRII: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)
PCL: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019 PS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later) PPD: Windows® 7 / 8.1 / 10, Mac OS X (10.9 or later) As of July, 2019. |
| Copy Speed | iR-ADV DX 6780i: Up to 80 ppm (A4), up to 40 ppm (A3), up to 58 ppm (A4R), up to 35 ppm (A5R)iR-ADV DX 6765i: Up to 65 ppm (A4), up to 32 ppm (A3), up to 47 ppm (A4R), up to 35 ppm (A5R) iR-ADV DX 6755i: |
| First-Copy-Out Time (A4) | iR-ADV DX 6780i: Approx. 3.1 seconds or less iR-ADV DX 6765i: Approx. 3.3 seconds or less iR-ADV DX 6755i: Approx. 3.3 seconds or less |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | Variable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400% |
| Copy Features | Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Reserved copy, Copy Sample |
| Type | Single-pass Duplexing Automatic Document Feeder [2-sided to 2-sided (Automatic)]
Detect Feeder Multi Sheet Feed is supported. |
| Document Feeder Paper Capacity (80 gsm) | Up to 200 Sheets |
| Acceptable Originals and Weights | Platen: Sheet, Book, and 3-Dimensional Objects
Document Feeder media weight: An acceptable weights of A6R or smaller is 50 to 220gsm. |
| Supported Media Sizes | Platen max. scanning size: up to 297.0 x 431.8 mm
Document Feeder media size: Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm |
| Scan Speed (ipm, BW/CL, A4) | 1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy) |
| Scan Resolution (dpi) | Scan for Copy: 600 x 600 Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600 |
| Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 |
| Scan Method | Push Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online) |
| Destination | Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax |
| Address Book | LDAP (2,000)/Local (1,600)/Speed dial (200) |
| Send Resolution (dpi) | Push: up to 600 x 600 Pull: up to 600 x 600 |
| Communication Protocol | File: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3 |
| File Format | Standard: TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
| Universal Send Features | Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages |
| Maximum Number of Connection Lines | 4 |
| Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression Method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400×400 (Ultra Fine), 200×400 (Super Fine), 200×200 (Fine), 200×100 (Normal) |
| Sending/Receiving Size | Sending: A3, A4, A4R, A5*11, A5R*11, B4, B5*12, B5R*11 Receiving: A3, A4, A4R, A5R, B4, B5, B5R |
| FAX Memory | Up to 30,000 pages (2,000 jobs) |
| Speed Dials | Max. 200 |
| Group Dials / Destinations | Max. 199 dials |
| Sequential Broadcast | Max. 256 addresses |
| Memory Backup | Yes |
| Fax Features | Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log |
| Mail Box (Number Supported) | 100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 30,000 Pages (2,000 jobs) Stored |
| Advanced Box | Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 8.1/10 Concurrent Connections (Max.): SMB:64, WebDAV:3 |
| Advanced Box Available Disc Space | Standard:16 GB (With option: max. 480GB) |
| Advanced Box Features | Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore |
| Authentication and Access Control | Standard: User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control) |
| Document Security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*13), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark) |
| Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception |
| Device Security | Protecting HDD Data (HDD Data Encryption (FIPS140-2 Validated), HDD Data Overwrite Erase, HDD Lock), Standard HDD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection) Optional: IEEE2600.2 (Common Criteria Certification) (available at a later date) |
| Device Management and Auditing | Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting |
| Operating Environment | Temperature: 10 to 30 ºC Humidity: 20 to 80 % RH (Relative Humidity) |
| Power Source | 220-240V, 50/60Hz, 10A |
| Power Consumption | Maximum: Approx. 2,400 W Standby: Approx. 256 W*14 Sleep mode: Approx. 0.9 W*15 |

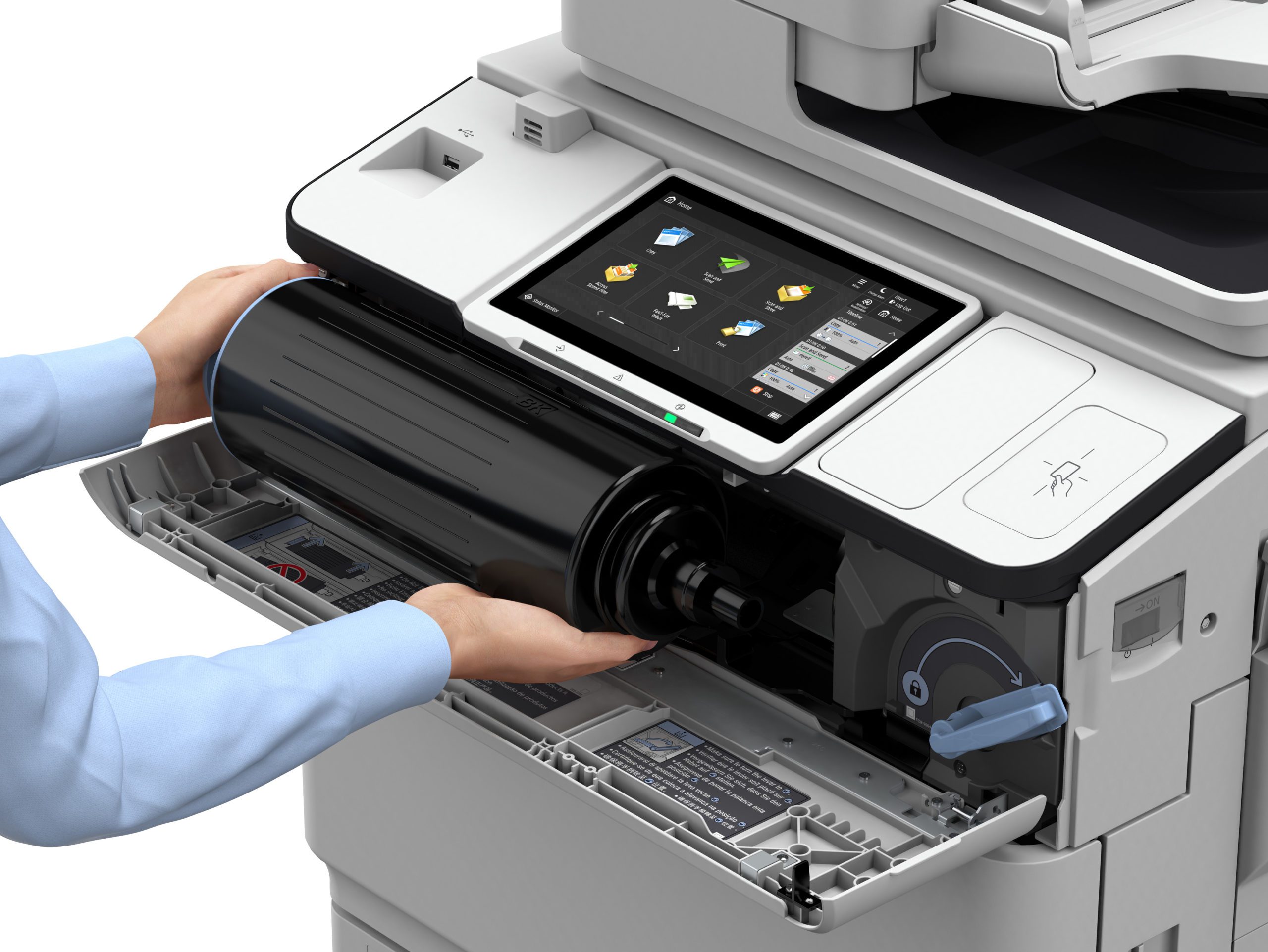

| Toner Cartridges | NPG-54 Black Toner |
| Toner (Estimated Yield @ 6% Coverage) | 56,000 pages |
| Tracking and Reporting | Universal Login Manager (ULM) uniFLOW Online Express |
| Remote Management Tools | iW Management Console eMaintenance Content Delivery System |
| Scanning Software | Network ScanGear |
| Optimisation Tools | Canon Driver Configuration Tool NetSpot Device Installer |
| Platform | MEAP (Multifunctional Embedded Application Platform) |
| Document Publishing | IW DESKTOP |
| Optional / Standard | Optional on all models |
| Name | Canon imagePASS-Y3 V1.1 (Server) |
| Print Resolution (dpi) | 1200 x 1200, 600 x 600 |
| Page Description Language(s) | PCL6, Adobe® PostScript®3™ |
| Memory | 8GB (2 x4GB) |
| Hard Disk Drive | 500 GB SATA |
| Processor Speed | Intel Pentium G4400 (3.3GHz) |
| System | FS350 Pro |
| Fonts | PS: 138 Fonts PCL: 113 Fonts |
| Supported Operating Systems | Windows 7 64 bit/Windows 8.1 64 bit/Windows 10 64 bit/Windows Server 2008 R2 64bit only/Windows Server 2012 64bit only (Only Printer driver support)/Windows Server 2012 R2 64bit only/Windows Server 2016 R2 64 bit only, MAC OS (10.11,10.12, 10.13, 10.14) |
| Interface | 2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB 3.0 x 2 (rear), x 3 (front on Fiery Quick Touch TM), USB 2.0 x 4 (rear) |
| Network Protocols | TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP) |
| Direct Print | PDF1.7, EPS, TIFF6, JDF1.4/JMF (Optional) |
| VDP | FreeForm v1, v2.1, PPML, PDF/VT-1, PDF/VT-2, Creo VPS |
| Fiery Print Controller Standard Features | Fiery Command WorkStation6/Paper Catalog/Fiery Remote Scan/Fiery Hot Folders & Virtual Printers/Fiery JDF |
| Fiery Print Controller Options | Fiery Impose/Fiery Compose/Fiery Impose and Compose/Removable HDD kit/Fiery Image Viewer |
| HW Platform | NX One |
| Base OS | Windows 10 IoT Enterprise 2019 LTSC |
| Power Source | AC100-240V, 50Hz/60Hz, 3.0A (100V) – 1.5A (240V) |
| Maximum Power Consumption | 53 W |
| Dimensions (W x D x H) | 203 x 248 x 384 mm |
| Weight | Server unit only: Approx. 5.9 kg |
| Paper Deck Unit-E1 | Paper Capacity: 3,500 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead Paper Size: A4, B5 Paper Weight: 52 to 256 gsm Power Source: from the Main Unit Dimensions (W x D x H): 340 x 630 x 572 mm (attached to the main unit) Weight: Approx. 34 kg |
| POD Deck Lite-C1 | Paper Capacity: 3,500 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab Paper Size: A3, A4, A4R, A5R, B4, B5, B5R Custom size: 139.7 x 182.0 mm to 297.0 to 487.7 mm Paper Weight: 52 to 256 gsm Power Source: 220-240V, 50/60Hz, 1.2A Dimensions (W x D x H): 633 x 686 x 574 mm (attached to the main unit) Weight: Approx. 68 kg |
| Card Readers | Copy Card Reader-F1 Copy Card Reader Attachment-A4 |
| Others | Upright Control Panel-J1 Utility Tray-B1 Tab Feeding Attachment Kit-B1 Shift Tray-F1 Numeric Keypad-A1 Finisher Jogger Kit-A1 Printer Cover-H2 |
| Device Security | iR-ADV Security Kit-AJ1 for IEEE 2600 Common Criteria Certification (available at a later date) |
| Data Security | 2.5inch/250GB HDD-N1 2.5inch/1TB HDD-P1 HDD Mirroring Kit-J1 |
Not sure which machine is right for you? Our sales team has an in-depth understanding of the capabilities of our machines and can guide you in selecting the copier or printer that suits your business needs. Book an obligation-free consultation with us and let us walk you through the options.
