DX4751

The Canon DX4751 model is a versatile multifunction printer suitable for various office environments. It offers reliable performance with a print speed of 45 pages per minute and features such as scanning and copying, making it a valuable tool for efficient document management and productivity.

"*" indicates required fields

Step 1 of 2

Name

Phone*

Email*

Workflow Efficiency

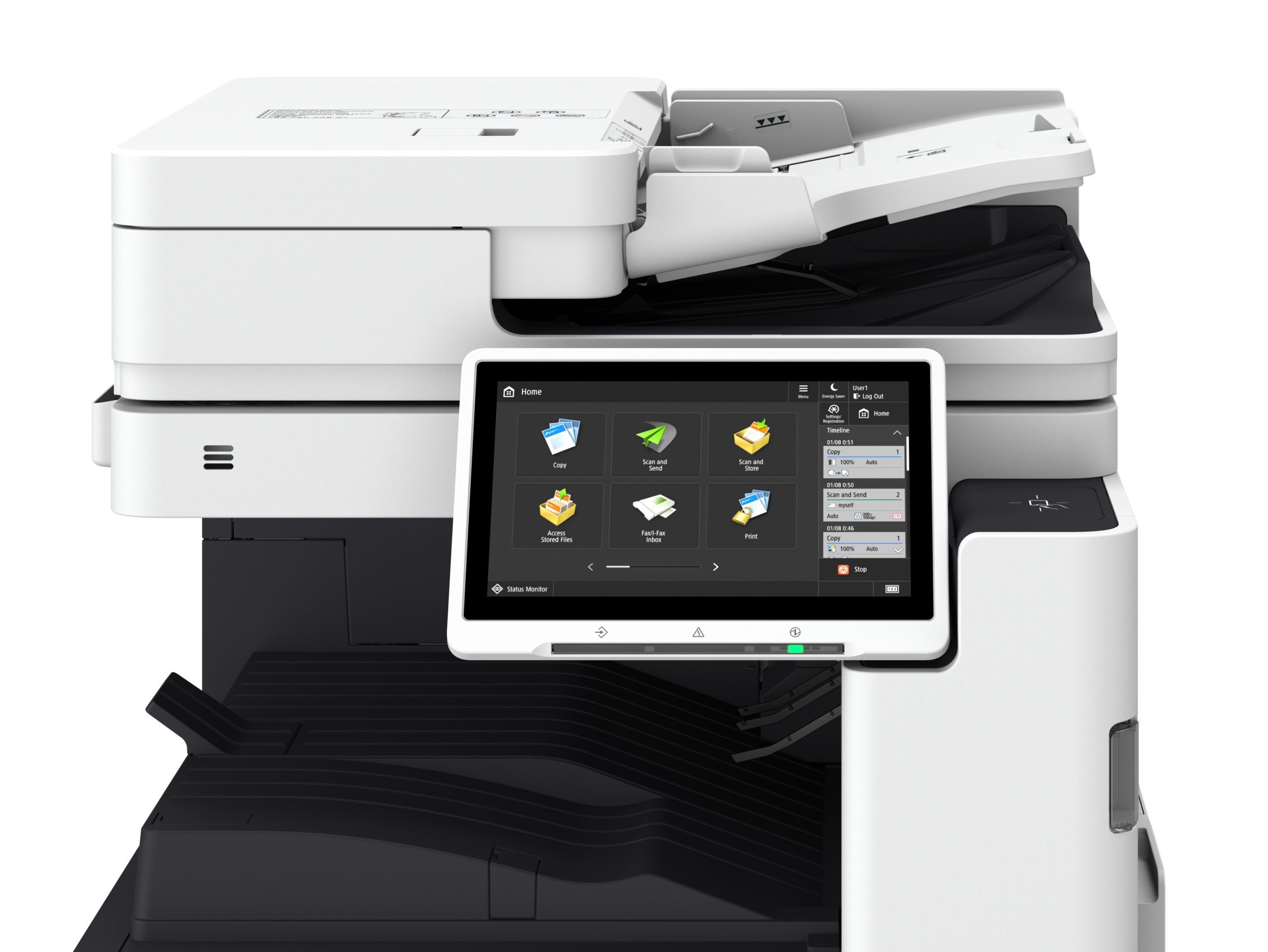

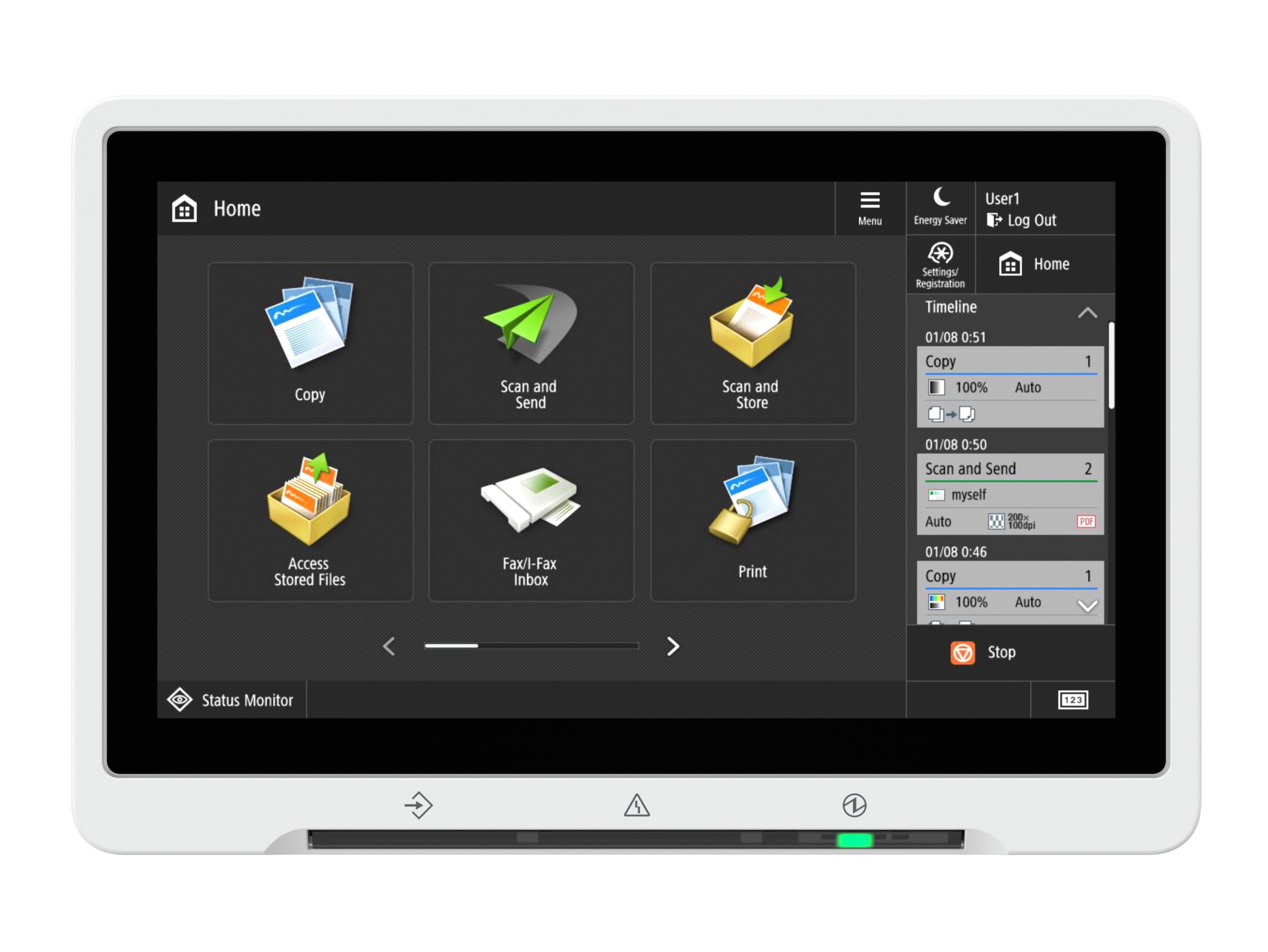

10.1″ intuitive touchscreen with smartphone-like usability.
A unique, customized experience tailored to individual preferences using My ADVANCE.
Supports mobile solutions and integration with many popular cloud services like Google Drive.
Scan and convert documents to searchable digital files in a variety of file formats.
Integration with Canon and various third-party software with embedded application platform.
Hot Folders allow users to drag and drop a file into a hot folder, and automatically print with predefined settings such as number of copies and finishing requirements.

Security

Advanced standard security feature set to help safeguard sensitive information and assist in regulatory compliance.
Integrates with existing, third-party Security Information and Event Management (SIEM) systems to help provide real-time comprehensive insights into potential threats to the network and printers.
Technology to verify that the device boot process, firmware, and applications initialize at startup, without any alterations or tampering by malicious third parties. During operation, McAfee Embedded Control utilizes a whitelist to protect against malware and tampering of firmware and applications.*
Security policy settings can be controlled with a dedicated password, configured from a central location, and exported to other supported devices.
Control access to the device and specific features, using a host of flexible authentication methods – PIN code, user name/password, or card access.

* These features are available on third generation imageRUNNER ADVANCE 3rd edition and imageRUNNER ADVANCE DX models only. McAfee Embedded Control requires Unified Firmware Platform v3.9 or greater.

Cost Management

Track and assess print, copy, scan, and fax usage and allocate costs to departments or projects.
Apply print policies and restrict usage by user to help reduce unnecessary printing and contribute to cost efficiency.
Standard cloud-based solution provides a centralized dashboard with up-to-the-minute insights into printer activity.
Upgrade to uniFLOW server or cloud-based solutions for full accounting and reporting for compatible Canon and third-party devices, pull printing, job routing, and powerful scan workflows.

Device and Fleet Management

Designed for quick, easy deployment.
Remote diagnostics and parts life management for proactive maintenance and rapid fixes.
Easy and intuitive to monitor device status and consumable levels, turn off devices remotely, observe meter readings, manage settings, and implement security policies.
Common firmware and regular updates with Unified Firmware Platform (UFP) for continuous improvements and consistency across a fleet.

Quality and Reliability

Canon’s signature reliability and engine technologies help keep productivity high and minimize the impact on support resources.
Outstanding imaging technologies and toner allow for crisp text and consistent images in rich black-and-white tones.
Designed to achieve maximum uptime with status notifications that help keep supplies replenished and intuitive maintenance videos for consumables replacement.
imageRUNNER ADVANCE models have received many awards and recognition from leading industry analysts, often referencing strong reliability.

Sustainability

A combination of fusing technologies and low-melting-point toner minimizes power requirements and helps achieve low energy consumption.
Encourage environmentally conscious work practices by enabling multiple settings that can help save paper and energy.
ENERGY STAR® certified and rated EPEAT® Gold.

MAIN UNIT
TYPE	Monochrome Laser Multifunctional
CORE FUNCTIONS	Standard: Print, Copy, Scan, Send, Store Optional: Fax
PROCESSOR	1.75 GHz Dual Core Processor
CONTROL PANEL	10.1″ TFT LCD WSVGA Color Touch-panel
MEMORY	3.0 GB RAM
HARD DISK DRIVE	Standard: 250 GB Maximum: 1 TB
PRINT RESOLUTION	1200 dpi x 1200 dpi
INTERFACE CONNECTION	Network Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Optional: Bluetooth Low Energy Others Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device) Optional: Copy Control Interface
PAPER CAPACITY (LETTER, 20 LB. BOND)	Standard: 1,200 Sheets Maximum: 6,350 Sheets
PAPER SOURCES (LETTER, 20 LB. BOND)	Standard: Two 550-sheet Paper Cassettes, 100-sheet Stack Bypass Optional: Two 550-sheet Paper Cassettes (Cassette Feeding Unit-AN1), 2,450-sheet Paper Deck (High Capacity Cassette Feeding Unit-B1), 2,700-sheet Paper Deck (Paper Deck Unit-F1)
PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)	Standard: 250 Sheets Maximum: 3,350 Sheets (with Buffer Pass-N1 + Staple Finisher-Y1 or Booklet Finisher-Y1)

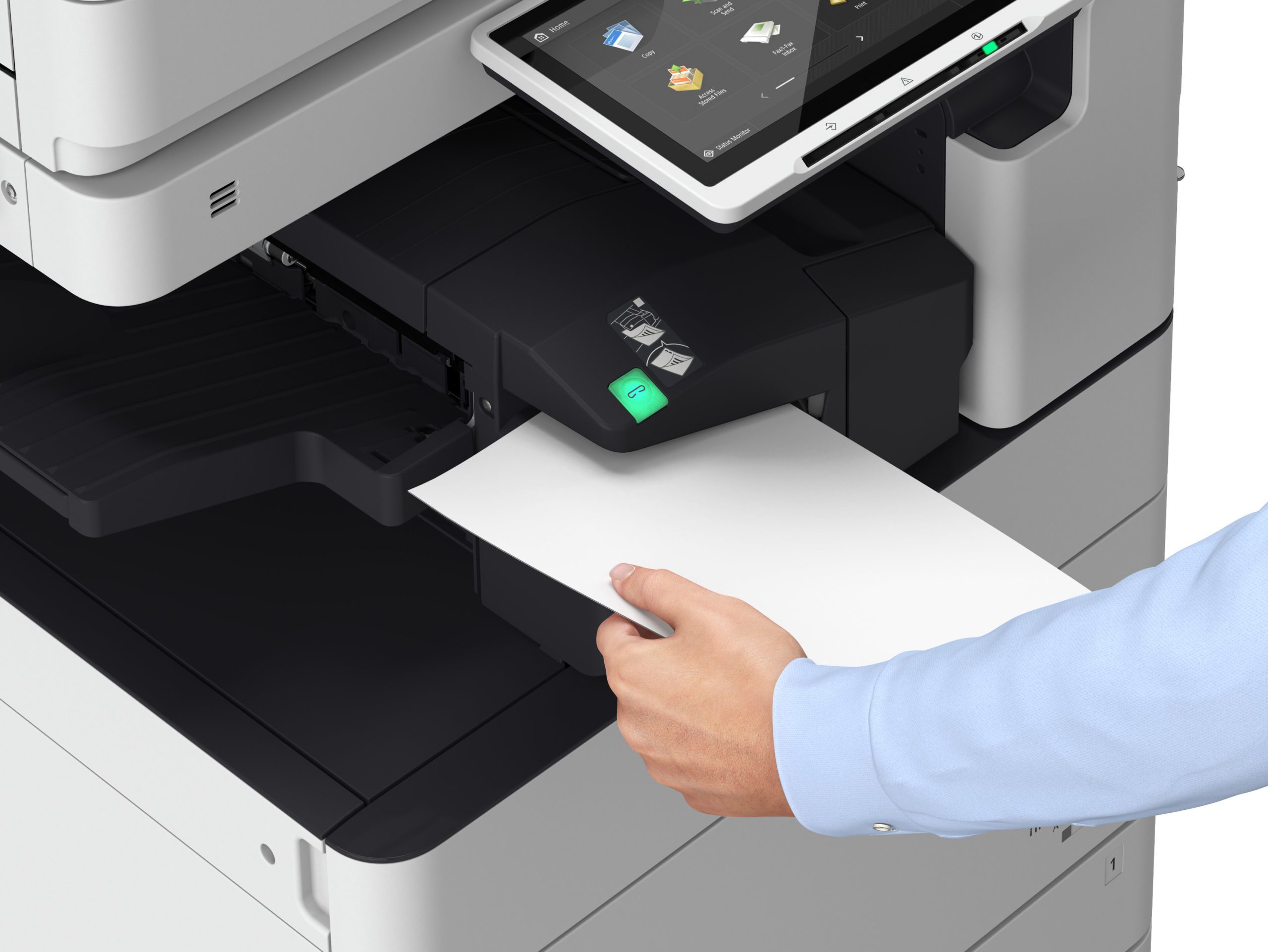

FINISHING CAPABILITIES	Standard: Collate, Group With Finishers: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand
SUPPORTED MEDIA TYPES	Upper/Lower Cassette: Thin, Plain, Recycled, Color, Heavy, Pre-punched Multi-purpose Tray: Thin, Plain, Recycled, Color, Heavy, Pre-punched, Bond, Transparency, Label, Envelope
SUPPORTED MEDIA SIZES	Upper Cassette: Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2″ x 7-1/8″ to 11-3/4″ x 15-3/8″) Lower Cassette: 11″ x 17″, Legal, Letter, Letter-R, Executive, Statement-R, Custom Size (5-1/2″ x 7-1/8″ to 11-3/4″ x 17″), Envelope¹: [No.10 (COM10), Monarch, DL, ISO-C5] Multi-purpose Tray: 11″ x 17″, Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size/Free Size (3-7/8″ x 5-7/8″ to 11-3/4″ x 17″)
SUPPORTED MEDIA WEIGHTS	Upper/Lower Cassette: 16 lb. Bond to 80 lb. Cover (60 to 220 g/m2) Multi-purpose Tray: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2) Duplexing: 16 lb. Bond to 28 lb. Bond (60 to 105 g/m2)
PRINT/COPY SPEED	Up to 51 ppm (Letter), Up to 37 ppm (Letter-R), Up to 25 ppm (Legal), Up to 25 ppm (11″ x 17″)
WARM-UP TIME	From Power On: Approx. 24 Seconds² From Sleep Mode: Approx. 10 Seconds³ Quick Startup Mode: Approx. 4 Seconds⁴
DIMENSIONS (W x D x H)	24″ x 28-1/2″ x 36-3/4″ (608 mm x 722 mm x 932 mm)
INSTALLATION SPACE (W x D x H)	Basic: 44″ x 45-5/8″ (1,116 x 1,160 mm) (with Platen Cover-Y2 + Multi-purpose Tray open/extension tray extended + Paper Cassette open) 44″ x 46″ (1,116 x 1,169 mm) (with Single Pass DADF-C1 + Multi-purpose Tray open/ extension tray extended + Paper Cassette open) 44″ x 45-7/8″ (1,116 x 1,166 mm) (with DADFBA1 + Multi-purpose tray open/extension tray extended + Paper Cassette open) Fully Configured: 71-3/8″ x 46″ (1,811 x 1,169 mm) (with Single Pass DADF-C1 + Paper Deck Unit-F1 + Booklet Finisher-Y1 with extension tray extended and Saddle unit drawn) 71-3/8″ x 45-7/8″ (1,811 x 1,166 mm) (with DADF-BA1 + Paper Deck Unit F1 + Booklet Finisher-Y1 with extension tray extended and Saddle unit drawn)
WEIGHT⁵	With Single Pass DADF-1: Approx. 193.8 lb. (87.9 kg)
PRINT SPECIFICATIONS
STANDARD PAGE DESCRIPTION LANGUAGES	UFR II, PCL®6, Adobe® PS® 3
SUPPORTED FILE TYPES FOR DIRECT PRINT	PDF, TIFF, JPEG, EPS, XPS
PRINTING FROM MOBILE AND CLOUD-BASED SERVICES	A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Universal Print by Microsoft, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.
FONTS	PCL Fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),⁶ Barcode Fonts⁷ PS Fonts: 136 Roman
OPERATING SYSTEM ⁸	UFRII/PS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Serve 2012 R2/ Server 2016/Server 2019, Mac OS X (10.10 or later) PCL: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/ Server 2016/Server 2019 PPD: Windows® 7/8.1/10, Mac OS X (10.9 or later)
COPY SPECIFICATIONS
FIRST-COPY-OUT-TIME	As fast as 3.7 seconds
COPY RESOLUTION (dpi)	600 x 600
MULTIPLE COPIES	Up to 9,999 Copies
COPY EXPOSURE	Automatic or Manual (9 Levels)
MAGNIFICATION	25%-400% (1% Increments)
PRESET REDUCTION / ENLARGEMENT	25%, 50%, 64%, 73%, 78%, 100%(1:1), 121%, 129%, 200%, 400%
SCAN SPECIFICATIONS
TYPE	Standard Single Pass Duplexing Automatic Document Feeder
DOCUMENT FEEDER PAPER CAPACITY	Single Pass DADF: Up to 200 Sheets
DOCUMENT FEEDER SUPPORTED MEDIA SIZES	Single Pass DADF-C1: 11″ x 17″, Legal, Letter, Letter-R, Statement, Statement-R, Custom size: 2-3/4″ x 5-1/2″ to 12″ x 17″ (70.0 x 139.7 mm to 304.8 x 431.8 mm) DADF-BA1: 11″ x 17″, Legal, Letter, Letter-R, Statement, Statement-R, Custom size: 5-1/2″ x 5″ to 11-3/4″ x 17” (139.7 x 128 mm to 297.0 x 431.8 mm)
DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS	Single Pass DADF-C1 Single-sided Scanning: 13.3 lb. Bond to 80 lb. Cover (50 to 220 g/m2) Double-sided Scanning: 13.3 lb. Bond to 80 lb. Cover (50 to 220 g/m2)
PLATEN ACCEPTABLE ORIGINALS	Sheet, Book, 3-Dimensional Objects
PLATEN SUPPORTED MEDIA SIZE	UP to 11-3/4″ x 17″ (297 mm x 431.8 mm)
PULL SCAN	Color Network ScanGear2 for both Twain and WIA Supported OS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
SCAN RESOLUTION	Push: Up to 600 x 600 Pull: Up to 600 x 600
SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES	A range of solutions is available to provide scanning to mobile devices and cloud-based services depending on your requirements.
SCAN SPEED (LETTER)	Single Pass DADF-C1 Single-sided Scanning BW/Color: 135 ipm (300 dpi)/80 ipm (600 dpi) Double-sided Scanning BW/Color: 270 (300 dpi), 160 (600 dpi)
SEND SPECIFICATIONS
DESTINATION	Standard: E-mail/Internet FAX (SMTP), SMB 3.0, FTP, WebDAV, Mail Box Optional: Super G3 Fax, IP Fax
ADDRESS BOOK	LDAP (2,000)/Local (1,600)/Speed dial (200)
SEND RESOLUTION	Push: Up to 600 x 600 Pull: Up to 600 x 600
COMMUICATION PROTOCOL	File: FTP (TCP/IP), SMB 3.0 (TCP/IP), WebDAV Email: SMTP, POP3
FILE FORMAT	TIFF, JPEG, PDF (Compact, Searchable, Apply Policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
FAX SPECIFICATIONS
MAXIMUM NUMBER OF LINES	4
MODEM SPEED	Super G3: 33.6 Kbps G3: 14.4 Kbps
COMPRESSION METHOD	MH, MR, MMR, JBIG
RESOLUTION	400 x 400, 200 x 400, 200 x 200, 200 x 100
SENDING / RECORDING SIZE	Statement-R to 11″ x 17″
FAX MEMORY	Up to 30,000 Pages (2,000 Jobs)
SPEED DIALS	Max. 200
GROUP DIALS / DESTINATIONS	Max. 199 Dials
SEQUENTIAL BROADCAST	Max. 256 Addresses
MEMORY BACKUP	Yes
STORE SPECIFICATIONS
MAIL BOX SIMPLE (NUMBER SUPPORTED)	100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, 30,000 Maximum Pages Stored (2,000 Jobs Stored)
ADVANCED BOX	Communication Protocol: SMB or WebDAV Supported Client PC: Windows (Windows 8.1/10) Concurrent Connections (Max.) SMB: 64 WebDAV: 3 (Active Sessions)
ADVANCED BOX AVAILABLE DISC SPACE	Approx. 16 GB (Standard HDD) Approx. 480 GB (With Optional 1 TB HDD)
MEMORY MEDIA	Standard: USB
SECURITY SPECIFICATIONS
AUTHENTICATION	Standard: Universal Login Manager, uniFLOW Online Express,⁹ User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in Optional: uniFLOW
DATA	Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption (FIPS140-2 Validated), Verify System at Startup, McAfee Embedded Control¹⁰ Optional: Hard Disk Drive Mirroring, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW)
NETWORK	Standard: Encrypted Secure Print, IP/Mac Address Filtering, IPsec, TLS Encrypted Communication (v1.0/1.1/1.2/1.3), SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME, SIEM Integration
DOCUMENT	Standard: Secure Watermark, Secure Print, Forced Hold Printing, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device Signature, User Signature
ENVIRONMENTAL SPECIFICATIONS
OPERATING ENVIRONMENT	Temperature: 50 to 86ºF Humidity: 20 to 80% RH (Relative Humidity)
POWER REQUIREMENTS	110-127V, 60Hz, 10.4A
POWER CONSUMPTION	Maximum: Approx. 1,500 W Standby: Approx. 39 W¹¹ Sleep Mode: Approx. 0.9 W¹² Typical Electricity Consumption (TEC) Rating:¹³4751i: 0.71 kWh / 4745i: 0.62 kWh / 4735i: 0.51 kWh / 4725i: 0.34 kWh
STANDARDS	ENERGY STAR® Certified Rated EPEAT® Gold
CONSUMABLES
TONER	GPR-57 Toner Black
TONER YIELD (ESTIMATED @ 6% COVERAGE)	Black: 42,100 Images
