Scanner

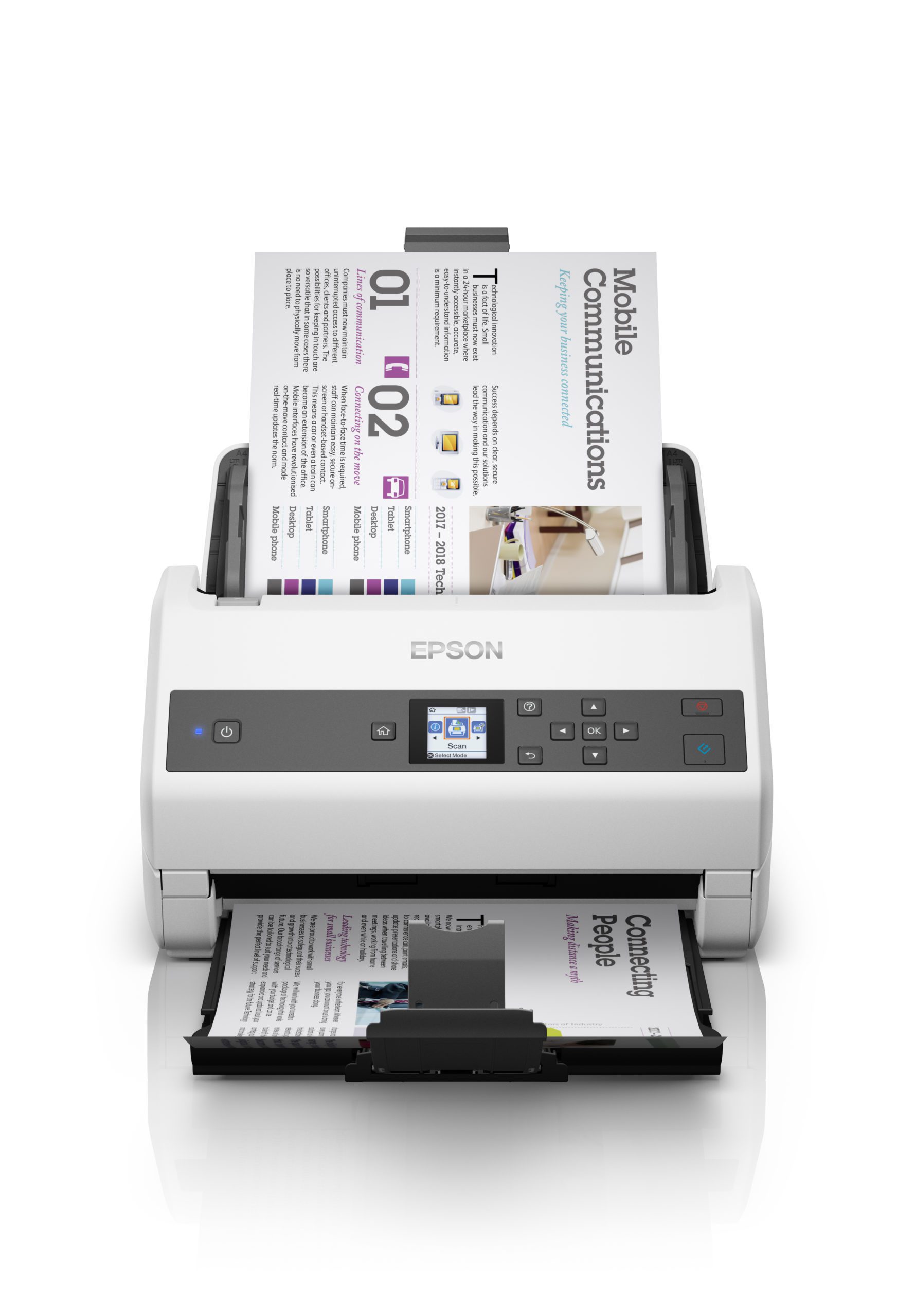

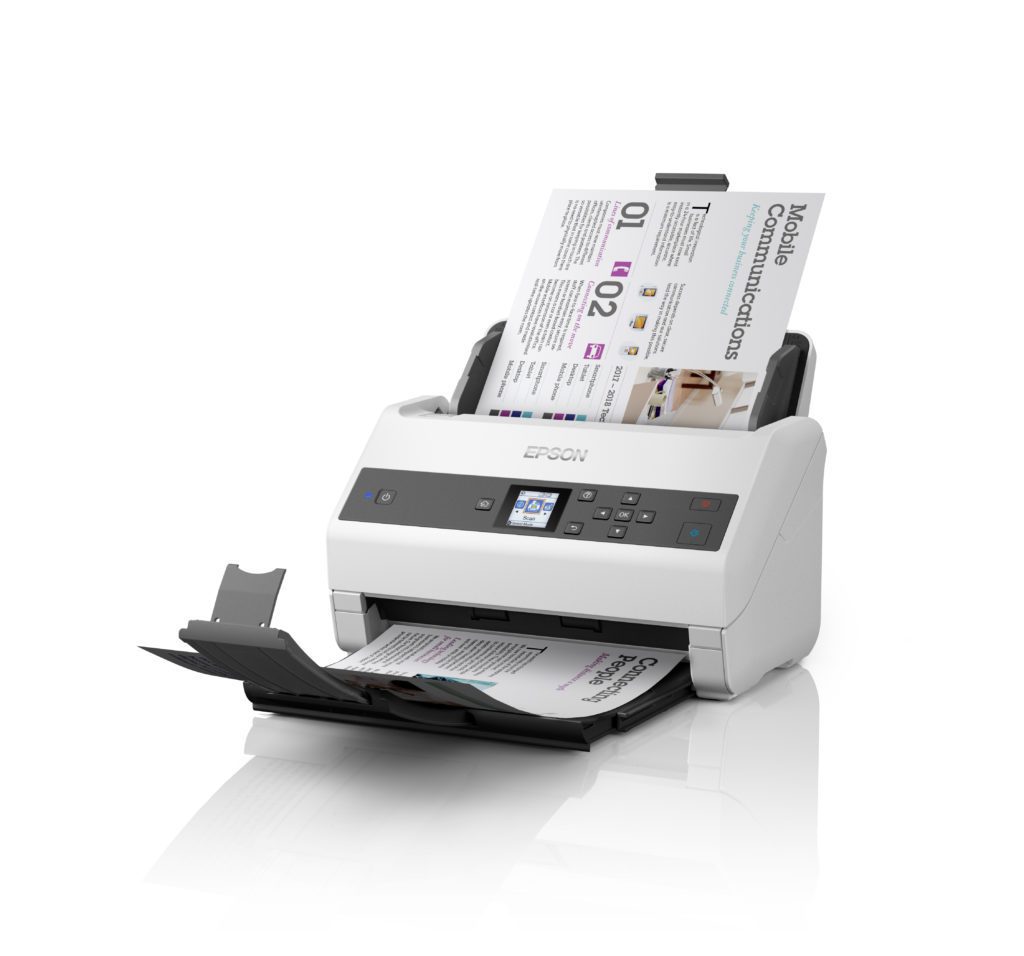

DS-870

Providing world-class performance for busy workgroups is the ultra fast, reliable and robust DS-870 document scanner. Designed for high-volume environments where speed and dependability are critical.

"*" indicates required fields

Step 1 of 2

Name
  • Fast scan speeds, from a leader in image capturing technology – up to 65 ppm/130 ipm1; single-pass duplex scanning
  • High-volume batch scanning – a 100-page Automatic Document Feeder handles even the biggest jobs; offers a peak daily duty cycle of up to 9,000 sheets2
  • Reliable, with industry-leading service and support – 12 month Warranty3
  • Seamless compatibility with document management systems – includes TWAIN and ISIS drivers for easy integration with existing software; PC and Mac® compatible
  • Easy, intuitive scanning – colour LCD display and convenient buttons offer easy access to user-defined jobs, settings, modes and maintenance
  • Versatile paper handling – scan mixed stacks of business and ID cards, single sheets, long documents, and folded pages up to 11″ x 17″ (carrier sheet required for folded oversized pages, sold separately)
  • Advanced paper feed technology – includes a Slow Speed Mode for delicate sheets; Double-feed Detection and Paper Protection prevent misfeeds
  • Powerful software with OCR – use the included Epson Document Capture software to create searchable PDFs, or scan to online storage accounts like Evernote®, SharePoint® and Google Drive™4
  • Compact, space-saving footprint– powerful and compact desktop scanner easily fits within virtually any workspace
  • Expanded versatility – optional Flatbed Dock to connect to a compatible Epson photo scanner for scanning photos, passports, or bound materials5 (both sold separately)
Epson WorkForce DS-870 B11B250501
SCANNER TYPE Sheet Feed, one pass duplex A4 colour scanner
OPTICAL RESOLUTION 600 x 600 dpi (Horizontal x Vertical)
PAPER FORMATS A4, A5, A6, B6, B5, B4, Letter, Legal, Postcard, Business cards, Plastic cards, A3 with stitching function
COLOUR DEPTH Input: 30 Bits Colour , Output: 24 Bits Colour
ULTRASONIC DETECTOR Yes
APPLICATION High Capacity, General Office
REC. VOLUME 7,000 pages per day
FILE COMPRESSION TIFF Compression (JPEG(7) , CCITT G4, LZW), PDF Compression, JPEG compression
MAXIMUM EFFECTIVE SCAN AREA
DOCUMENT SIZE A4, A5, A6, B6, B5, B4, Letter, Legal, Postcard, Business cards, Plastic cards, A3 with stitching function
INPUT TRAY CAPACITY 100 sheets (Based on 75g/m2 paper)
PAPER WEIGHT 27-413 g/m2
SCANNING SPEED
(A4/Letter Size) Monochrome: 65 pages/min – Colour: 65 pages/min measured with size: A4 , resolution: 200 / 300 dpi
Monochrome: 130 image/min – Colour: 130 image/min measured with size: A4 , resolution: 200 / 300 dpi
FUNCTIONS
OUTPUT FORMATS BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, PDF/A, PNG
BUNDLED SOFTWARE Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2
SUPPORTED PLATFORMS
OPERATING SYSTEMS Mac OS 10.6+, Windows 11, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003,
Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Vista, Windows XP SP3
INTERFACE USB 3.0
DRIVERS TWAIN, ISIS (Web download), Epson Scan2 (TWAIN), SANE (Linux), WIA (Windows)
ENVIRONMENTAL CONDITIONS
TEMPERATURE Operation 5° C – 35° C, Storage 25° C – 60° C
HUMIDITY Operation 15% – 80%, Storage 15% – 85%
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC 100-240V
FREQUENCY 50 to 60Hz (Rated)
47 to 63Hz (Input)
POWER CONSUMPTION Operating: 30W
Ready mode: 10W
Sleep mode: 1.5W
Power Off: 0.1W
DIMENSIONS
WIDTH x DEPTH x HEIGHT 296‎ x 169 x 167 mm (Width x Depth x Height)
WEIGHT Approx. 3.6kg
WHAT’S IN THE BOX
AC adapter, Driver and utilities (CD), Main unit, Power cable, Setup guide, USB cable, Warranty card
PRODUCT OPTIONS Item Code Description
B12B819051 Carrier Sheet
B12B819291 Cleaning Kit
B12B819031 Roller Assembly Kit
B12B819011 Flatbed Conversion Kit
WARRANTY
Standard 12 Months Warranty RTB (Return to base)
  • Download DS-870 Brochure
