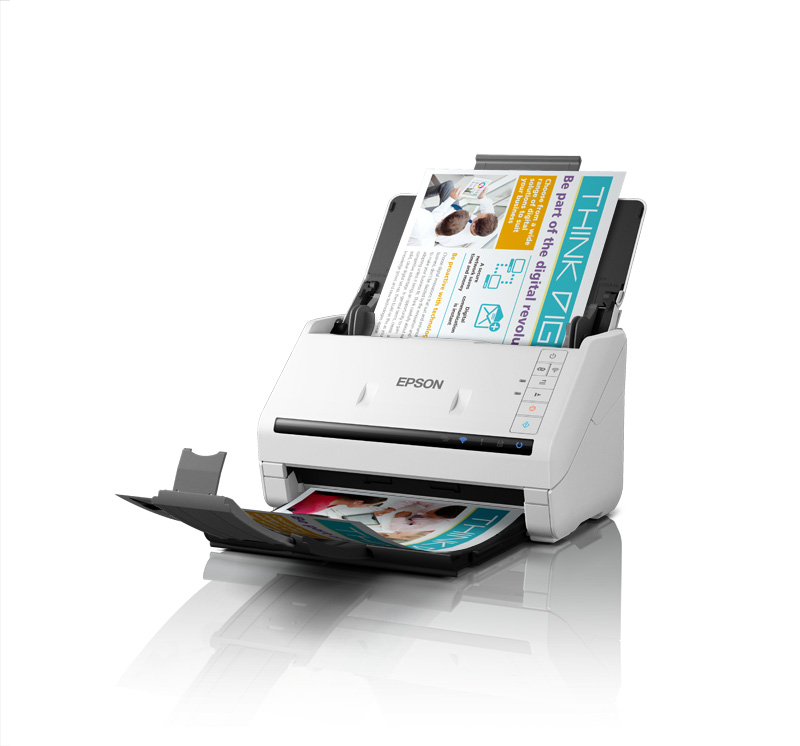

DS-570WII_Left

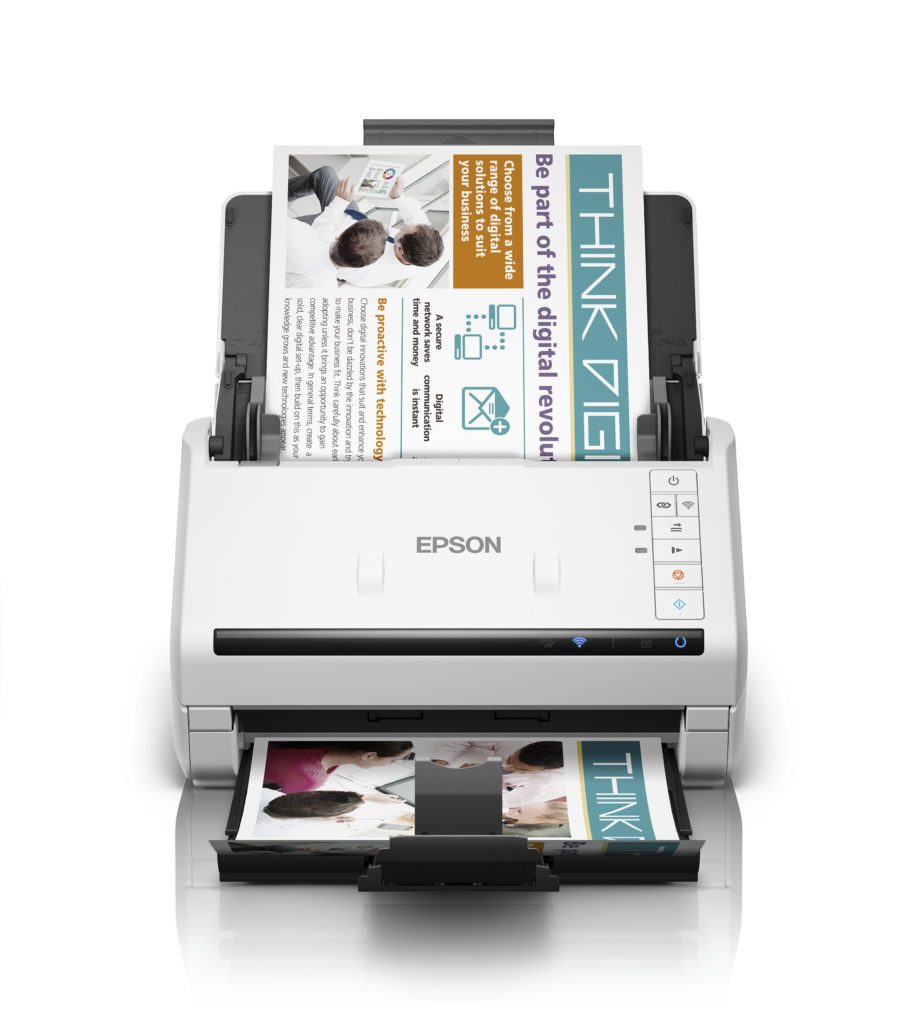

DS-570WII

The EPSON WorkForce DS-570WII document scanner takes efficiency to a new level for business environments where fast and easy document management is required. Scan documents, business cards, and identification cards directly to popular cloud services with the included software. The scanner is very easy to use and includes intuitive one-touch scanning.

"*" indicates required fields

Step 1 of 2

Name
  • Exceptional Speed – 35ppm / 70 ipm1 scan speeds for efficient and productive scanning.
  • Optional Network Adaptor – One single unit can be connected to a network so the unit can be shared by multiple users.
  • Wireless Scanning – including NFC (near field communication) and USB 3.0 connectivity to rapidly connect, capture, edit, store and share business documents.
  • Optional Flatbed Scanner Dock – This enables high speed sheet-fed scanning and flatbed scanning for passports, booklets and fragile paper like damaged receipts with one driver.
  • Scan directly to popular cloud services – scan to Dropbox, Sharepoint®, Evernote®, Google Drive® for efficient file sharing2.
  • Scan to searchable PDF’s – scan and edit documents; save scanned documents as PDF files. OCR software included for easy filing.
  • Advanced colour and image adjustments – Colour Enhance, Colour Dropout, automatic paper size detection for innovative and productive document management.
  • Connect to document management software – TWAIN and ISIS drivers (ISIS available via web download) for seamless integration between the scanner and custom built business applications.
  • 50 sheet ADF capacity – for rapid capture of large multi-page documents.
  • Powerful Duty Cycle – Scan up to 4,000 sheets per day.
  • Versatile paper handling – Scan folded pages, thick business cards and single sheets
Epson WorkForce DS-570WII B11B263501
SCANNER TYPE Sheet Feed, one pass duplex A4 colour scanner
OPTICAL RESOLUTION 600 x 600 dpi
MAXIMUM INTERPOLATED RESOLUTION 1200 dpi
LIGHT SOURCE 3 Colour RGB LED
COLOUR SCAN MODE
(Output bit depth)		 30-bit input / 24-bit output
GREYSCALE SCAN MODE
(Output bit depth)		 30-bit input / 24-bit output
LIGHT SOURCE Readyscan LED Technology
PAPER / MEDIA HANDLING
DOCUMENT SIZE Plastic card (in portrait scanning only),
A4, A5, A6, B5, Business card, Letter and Legal
A3 size supported by digital stitching
ADF Minimum size: 50.8mm x 50.8mm (Horizontal x Vertical)
ADF Maximum size: 215.9mm x 6096mm (Horizontal x Vertical)
INPUT TRAY CAPACITY 50 sheets (Based on 80g/m2 paper)
DAILY DUTY CYCLE 4,000 pages
PAPER WEIGHT 27-413 g/m2
SCANNING SPEED
(A4/Letter Size) 35ppm/70ipm : 200dpi – Black & White, Colour, Grey
35ppm/70ipm : 300dpi – Black & White, Colour, Grey
35ppm/70ipm : 400dpi – Black & White, Grey
FUNCTIONS
DOCUMENT ENHANCEMENT TOOLS Skip blank page, A3 stitching,
Punch holes removal, Automatic de-skew,
Automatic multidocument recognition,
Dual Image Output (Windows only), Auto-rotation, Text enhancement,
Unsharp Mask (USM), Descreening, Automatic Folder Creation,
Barcode Recognition, Full Zonal OCR
OUTPUT FORMATS JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A
BUNDLED SOFTWARE Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Scan 2
SUPPORTED PLATFORMS
Mac OS 11.0.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 11, Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8 RT, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows server 2003 R2, XP Professional x64 Edition
INTERFACE USB 3.0, Wi-Fi
PROTOCOL SUPPORT TCP/IP, DHCP, DNS, SNMP, SLP
ENVIRONMENTAL CONDITIONS
TEMPERATURE Temperature (Operating): 41° to 95°F (5° to 35°C)
Storage: -13° to 140°F (-25° to 60°C)
Humidity (Operating): 15 – 80% (no condensation)
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC 100-240V
POWER CONSUMPTION Operating: 12W
Ready mode: 5.5W
Sleep mode: 1.3W
Power Off: 0.1W
DIMENSIONS
WIDTH x DEPTH x HEIGHT 296mm x 169mm x 176mm
WEIGHT Approx. 3.7kg
WHAT’S IN THE BOX
Epson WorkForce DS-570WII, Setup Sheet, Warranty / Registration Card, USB Cable, Software CD-ROM, AC Adapter & Cable
PRODUCT OPTIONS Item Code Description
B12B819011 Flatbed Scanner Dock
B12B819671 Roller Assembly kit to suit
B12B819051 Carrier Sheet
B12B819291 Cleaning Kit
WARRANTY
12 months return to base Standard
Optional Additional 2 Year Warranty 3YWDS570WII CoverPlus
  • Download DS-570WII Brochure
