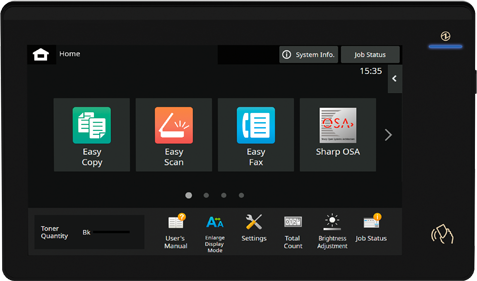

Easy-to-use Touchscreen
The easy-to-use Sharp touchscreen display is built on an award-winning design and delivers an accurate, responsive user experience, imperative for today’s sophisticated workflows.
Technology Focused
The Advanced Series leverages the latest technology to help users get their work done with ease and efficiency. Innovative features like multi-feed scan detection and enhanced auto skew correction ensure jobs come out right the first time, every time.
Versatile Application Integration
Maximize productivity and collaboration with easy access to expanded cloud services, quickly connect with mobile devices to print and scan files, even utilize touchless operation with the Sharp Synappx Go app.
Leading Security
In today’s hybrid working environments its vital to protect endpoint devices from security threats, that is why the Advanced Series uses the latest security technology to help ensure your data remains safe.
Flexible Sleek Design
Elegant cabinet design with easy-roll casters, soft-close paper drawers and contemporary color scheme make the Advanced Series a perfect fit for any office environment.
Advanced Wireless Networking
Print directly to the MFP from mobile devices without interfering with the corporate network! 5 GHz technology and WPA3 encryption deliver fast, reliable data that is well protected from malicious intruders.
Scan and Print with Sharpdesk Mobile
With Sharpdesk Mobile, a free downloadable app for most mobile devices, users can quickly scan and print files from tablets and smartphones.
| Model | BP-70M65/70M55/70M45/70M36/70M31 | BP-50M65/50M55/50M45/50M36/50M31/50M26 | |
|---|---|---|---|
| Type | Desktop | ||
| Engine speed | A4 (8 1/2″ x 11″)*1 | Max. 65/55/45/36/31 ppm | Max. 65/55/45/36/31/26 ppm |
| A3 (11″ x 17″) | Max. 29/26/21 (20)/18/15 ppm | Max. 29/26/21 (20)/18/15/15 ppm | |
| A3W (12″ x 18″) | Max. 28/23/19/16/14 ppm | Max. 28/23/19/16/14/14 ppm | |
| Control panel display | 10.1-inch colour LCD touchscreen | ||
| Paper size | Max. A3W (12″ x 18″), min. A6 (5 1/2″ x 8 1/2″)*2 | ||
| Paper capacity (80 g/m2) |
Standard | 650 sheets (550-sheet tray and 100-sheet bypass tray) |
|
| Maximum | 6,300 sheets (650 sheets & optional 550 + 2,100-sheet tray and 3,000-sheet tray) |
||
| Paper weight | Tray | 60 g/m2 to 300 g/m2 (16 lbs bond to 110 lbs cover) | |
| Bypass tray | 55 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover) | ||
| Warm-up time*3 | 15/15/14/14/13 sec.*4 | 15/15/14/14/13/13 sec.*4 | |
| Memory | Standard | 5 GB (copy/print shared) 256 GB SSD*5 | 5 GB (copy/print shared) 128 GB SSD*5 |
| Option | 512 GB *5*6 | ||
| Power requirements | Rated local AC voltage ±10%, 50/60 Hz | ||
| Power consumption | Max. 1.84 kW (220 V to 240 V) | ||
| Dimensions (W x D x H)*7 | 609 x 662 x 860 mm (23 63/64″ x 26 5/64″ x 33 55/64″) | 608 x 653 x 829 mm (23 15/16″ x 25 23/32″ x 32 41/64″) | |
| Weight (approx.) | BP-70M65/70M55/70M45: 72kg (158.8 lbs)*8 BP-70M36/70M31: 71 kg |
BP-50M65/50M55/50M45/50M36/50M31: 64 kg (141.1 lbs)*8 BP-50M26: 62 kg |
|
| Model | BP-70M65/70M55/70M45/70M36/70M31 | BP-50M65/50M55/50M45/50M36/50M31/50M26 | |
|---|---|---|---|
| Original paper size | Max. A3 (11″ x 17″) | ||
| First copy time*9 | BP-70M65/70M55: 3.5 sec. BP-70M45/70M36: 4.5 sec. BP-70M31: 5.4 sec. |
BP-50M65/50M55: 3.5 sec. BP-50M45/50M36: 4.5 sec. BP-50M31: 5.4 sec. BP-50M26: 6.2 sec. |
|
| Continuous copy | Max. 9,999 copies | ||
| Resolution | Scan | 600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi*10 | 600 x 600 dpi, 600 x 400 dpi |
| 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) |
600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode) | ||
| Gradation | Equivalent to 256 levels | ||
| Zoom range | 25% to 400% (25% to 200% using DSPF) in 1% increments | 25% to 400% (25% to 200% using RSPF) in 1% increments | |
| Preset copy ratios | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) | ||
| Model | BP-70M65/70M55/70M45/70M36/70M31 | BP-50M65/50M55/50M45/50M36/50M31/50M26 | |
|---|---|---|---|
| Scan method | Push scan (via control panel), pull scan (TWAIN-compliant application) | ||
| Scan speed*11 | Colour & B/W | One-sided: Max. 140 originals/min. Two-sided: Max. 280 originals/min. |
Max. 80 originals/min. |
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi | |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting*12 |
||
| File formats | TIFF, PDF, PDF/A-1a*13, PDF/A-1b, encrypted PDF, XPS, compact PDF*14*15, JPEG*14, searchable PDF*13, OOXML (pptx, xlsx, docx)*13, text (TXT [UTF-8])*13, rich text (RTF)*13 | ||
| Scan destinations | Email/desktop*16/FTP server/network folder (SMB)/USB drive/local drive | ||
| Model | BP-70M65/70M55/70M45/70M36/70M31 | BP-50M65/50M55/50M45/50M36/50M31/50M26 | |
|---|---|---|---|
| Document filing capacity*17 | Standard | Main and custom folders: 20,000 pages or 3,000 files Quick file folder: 10,000 pages or 1,000 files |
Main and custom folders: Max. 5,000 pages or 500 files Quick file folder: Max. 5,000 pages or 500 files |
| Option | – | Main and custom folders: Max. 20,000 pages or 3,000 files Quick file folder: Max. 10,000 pages or 1,000 files |
|
| Stored jobs*18 | Copy, print, scan, fax | ||
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) | ||
| Model | BP-70M65/70M55/70M45/70M36/70M31 | BP-50M65/50M55/50M45/50M36/50M31/50M26 | |
|---|---|---|---|
| Resolution | 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi | 600 x 600 dpi, 9,600 (equivalent) x 600 dpi | |
| Interface | USB 2.0 (host, high-speed), USB 3.0 (host, super speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 a/b/g/n/ac)*19 | ||
| Supported OS*20 | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019,Windows Server 2022, Windows 8.1, Windows 10, Windows 11, Mac OS 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12 |
||
| Network protocols | TCP/IP | ||
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (email printing), HTTP, FTP for downloading print files, IPP, IPP Everywhere, SMB, WSD | ||
| PDL | Standard | PCL 6 emulation, Adobe PostScript 3 | PCL 6 emulation |
| Option | – | Adobe PostScript 3 | |
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 | ||
| Model | BP-70M65/70M55/70M45/70M36/70M31 | BP-50M65/50M55/50M45/50M36/50M31/50M26 |
|---|---|---|
| Compression method | MH/MR/MMR/JBIG | |
| Communication protocol | Super G3/G3 | |
| Transmission time | Less than 3 seconds*21 | |
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback | |
| Transmission resolution | From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) | |
| Recording size | A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″) | |
| Memory | 4 GB (built-in) | |
| Greyscale levels | Equivalent to 256 levels | |
Not sure which machine is right for you? Our sales team has an in-depth understanding of the capabilities of our machines and can guide you in selecting the copier or printer that suits your business needs. Book an obligation-free consultation with us and let us walk you through the options.
