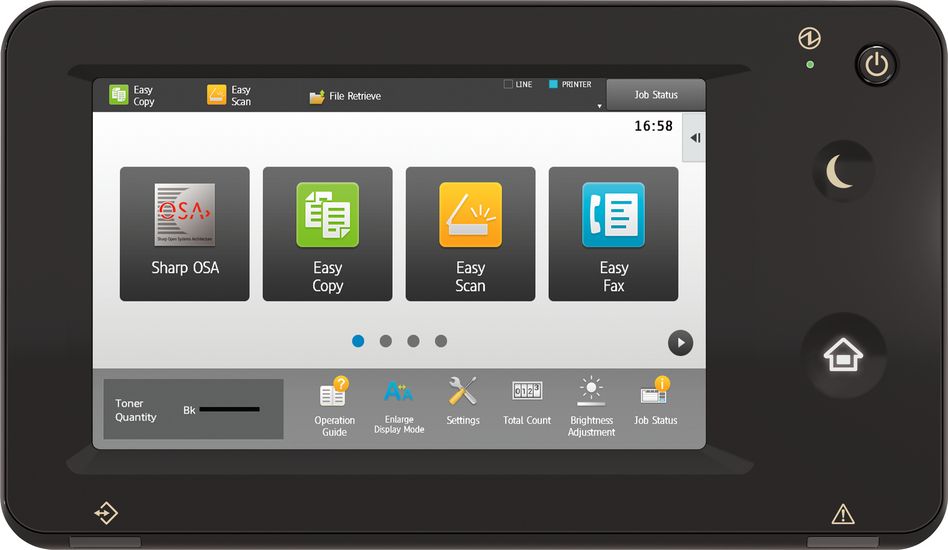

Easy User Interface
In Easy UI mode, the touchscreen displays simple icons for frequently used functions like duplexing and paper size seletion.
Fast Wake Up
Placing a document in the RSPF or touching the LCD control panel wakes the MFP up from Sleep mode in just one second.
Office Direct Printing
Even without a PC, you can print common Microsoft Office files directly from a mobile device, cloud service, USB drive, or file server. Requires optional MX-PU10.
Wireless Connectivity
With the optional MX-EB18, the BP-30M28 offers ultra-handy wireless access, enabling convenient access to the MFP even from places where it’s difficult to connect a LAN cable.

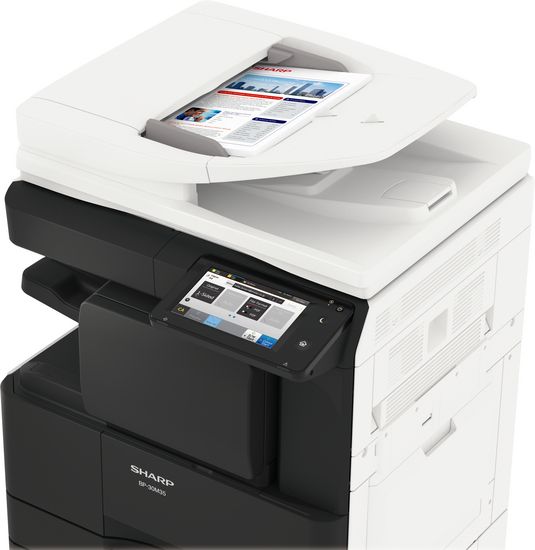

OCR Function
OCR capability on this MFP lets you convert a scanned docyment into a searchable PDF file or editable Office Open XML file.
Link with Mail Servers
Scanned data can be conveniently sent via your regular Gmail™ or Microsoft Exchange/Online account.
Data Encryption and Erasure
Job data is encrypted before being saved to the MFP’s internal storage. Once the data is output or sent, it is automtically erased.
Whitelisting
Whitelisting protexts the MFP from fraudulent programs trying to access the file system and obtain information.
| Model | BP-30M35 | BP-30M31/30M28 | |
|---|---|---|---|
| Type | Desktop | ||
| Engine speed | A4 (8 1/2″ x 11″)*1 | Max. 35 ppm | Max. 31/28 ppm |
| A3 (11″ x 17″) | Max. 19 ppm | Max. 17 ppm | |
| Control panel display | 7.0-inch colour LCD touchscreen | ||
| Paper size | Max. A3 (11″ x 17″), min. A6 (5 1/2″ x 8 1/2″)*2 | ||
| Paper capacity (80 g/m2) |
Standard | 1,100 sheets (2 x 500-sheet tray and 100-sheet multi bypass tray) |
|
| Maximum | 2,100 sheets (1,100 sheets & optional 2 x 500-sheet tray) |
||
| Paper weight | Tray 1 | 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond) | |
| Trays 2–4 | 60 g/m2 to 200 g/m2 (16 lbs bond to 110 lbs index) | ||
| Multi bypass tray | 55 g/m2 to 200 g/m2 (13 lbs bond to 110 lbs index) | ||
| Warm-up time*3 | 20 sec.*4 | 19 sec.*4 | |
| Memory | Standard | 4 GB (copy/print shared) 128 GB SSD*5 | |
| Option | 512 GB SSD*5*6 | ||
| Power requirements | Rated local AC voltage ±10%, 50/60 Hz | ||
| Power consumption | Max. 1.45 kW (220 V to 240 V) | Max. 1.44 kW (110 V to 127 V) | |
| Dimensions (W x D x H) | 620 x 614 x 830 mm (24 27/64″ x 24 3/16″ x 32 11/16″) |
||
| Weight (approx.) | 49 kg (108.1 lbs) | ||
| Model | BP-30M35 | BP-30M31/30M28 | |
|---|---|---|---|
| Original paper size | Max. A3 (11″ x 17″) | ||
| First copy time*7 | 4.0 sec. | 4.3 sec. | |
| Continuous copy | Max. 9,999 copies | ||
| Resolution | Scan | 600 x 600 dpi, 600 x 400 dpi | |
| 600 x 600 dpi | |||
| Gradation | Equivalent to 256 levels | ||
| Zoom range | 25% to 400% (25% to 200% using RSPF) in 1% increments | ||
| Preset copy ratios | Metric | 10 ratios (5R/5E) | |
| Inch | 8 ratios (4R/4E) | ||
| Model | BP-30M35 | BP-30M31/30M28 | |
|---|---|---|---|
| Scan method | Push scan (via control panel) Pull scan (TWAIN-compliant application) |
||
| Scan speed*8 | Colour & B/W | Max. 60 originals/min. | |
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi | |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting*9 |
||
| File formats | TIFF, PDF, PDF/A-1a*10, PDF/A-1b, encrypted PDF, XPS, compact PDF*11*12, JPEG*12, searchable PDF*10, OOXML (pptx, xlsx, docx)*10, text (TXT [UTF-8])*10, rich text (RTF)*10 | ||
| Scan destinations | Scan to email/desktop*13/FTP server/network folder (SMB)/USB drive/local drive | ||
| Model | BP-30M35 | BP-30M31/30M28 | |
|---|---|---|---|
| Document filing capacity*14 | Standard | Main and custom folders: Max. 5,000 pages or 500 files Quick file folder: Max. 5,000 pages or 500 files |
|
| Option | Main and custom folders: Max. 20,000 pages or 3,000 files Quick file folder: Max. 10,000 pages or 1,000 files |
||
| Stored jobs*15 | Copy, print, scan, fax | ||
| Storage folders | Quick file folder, main folder, custom folder (max. 1,000 folders) | ||
| Model | BP-30M35 | BP-30M31/30M28 | |
|---|---|---|---|
| Resolution | 1,200 x 600 dpi, 600 x 600 dpi | ||
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 b/g/n)*16 | ||
| Supported OS*17 | Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows Server® 2019, Windows® 8.1, Windows® 10, Mac OS 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11 |
||
| Network protocols | TCP/IP | ||
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (email printing), HTTP, FTP for downloading print files, IPP, SMB, WSD | ||
| PDL | Standard | PCL 6 emulation | |
| Option | Adobe® PostScript® 3™ | ||
| Available fonts | 80 fonts for PCL, 139 fonts for Adobe PostScript 3 | ||
| Model | BP-30M35 | BP-30M31/30M28 |
|---|---|---|
| Compression method | MH/MR/MMR/JBIG | |
| Communication protocol | Super G3/G3 | |
| Transmission time | Less than 3 seconds*18 | |
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback | |
| Transmission resolution | From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) | |
| Recording size | A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″) | |
| Memory | 1 GB (built-in) | |
| Greyscale levels | Equivalent to 256 levels | |
