Compact Size

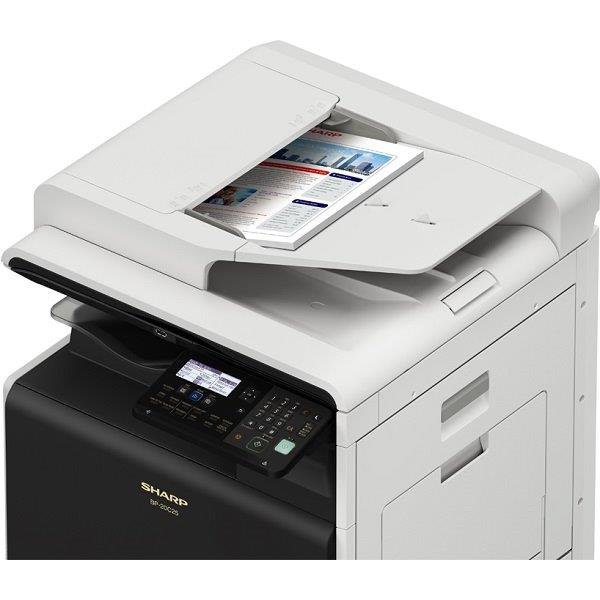

Measuring just 560 x 560 x 653 mm, this MFD is small enough to place almost anywhere. Giving you the freedom to have an A3 MFD in the spaces and capacities that a regular A3 MFD wouldn’t physically fit.
Wireless Connection
The optional Wireless Adaptor offers ultra-handy wireless access via two easy modes, enabling access to the BP20C20 for convenient scanning and printing.
Made for Mobility*
Using the optional MXEB18 wireless LAN lets you connect the BP20C20/25 to any WiFi enabled device, so that anyone can print or scan directly from their smartphone, tablet or PC using AirPrint**, Google Cloud Print** or the free Sharpdesk Mobile app. **available at a later date
User Authentication
User authentication restricts access to the MFD by requiring a password. Up to 30 users can be registered this way.
| Model | BP-20C25/20C20 | BP-10C20 | |
|---|---|---|---|
| Type | Desktop | ||
| Engine speed | A4 (8 1/2″ x 11″)*1 | Max. 25/20 ppm | Max. 20 ppm |
| A3 (11″ x 17″) | Max. 14/12 ppm | Max. 12 ppm | |

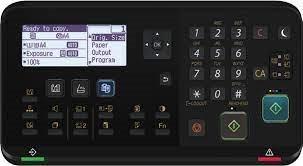

| Control panel display | 4-inch 5-line LCD | ||
| Paper size | Max. A3W (12″ x 18″), min. A6 (5 1/2″ x 8 1/2″)*2 | ||
| Paper capacity (80 g/m2) |
Standard | 350 sheets (250-sheet tray and 100-sheet multi bypass tray) |
|
| Maximum | 1,850 sheets (350 sheets & optional 3 x 500-sheet tray) |
||
| Paper weight | Tray 1 | 60 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond) | |
| Trays 2–4 (BP-CS10/DE10) |
60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover) | ||
| Multi bypass tray | 55 g/m2 to 256 g/m2 (13 lbs bond to 140 lbs index) | ||
| Warm-up time*3 | 29 sec. | ||
| Memory | 2 GB (copy/print shared) | ||
| Power requirements | Rated local AC voltage ±10%, 50/60 Hz | ||
| Power consumption | Max. 1.44 kW (110 V to 120 V), max. 1.84 kW (220 V to 240 V) | ||
| Dimensions (W x D x H) | 560 x 560 x 653 mm (22 1/16″ x 22 1/16″ x 25 23/32″) |
560 x 560 x 560 mm (22 1/16″ x 22 1/16″ x 22 1/16″) |
|
| Weight (approx.) | 52 kg (112.5 lbs) | 47 kg (103.7 lbs) | |
| Model | BP-20C25/20C20 | BP-10C20 | |
|---|---|---|---|
| Original paper size | Max. A3 (11″ x 17″) | ||
| First copy time*4 | Colour: 11.5 sec. B/W: 8.0 sec. | ||
| Continuous copy | Max. 999 copies | ||
| Resolution | Scan | 600 x 600 dpi, 600 x 400 dpi | |
| 600 x 600 dpi | |||
| Gradation | Equivalent to 256 levels | ||
| Zoom range | 25% to 400% (25% to 200% using RSPF) in 1% increments | ||
| Preset copy ratios | Metric: 10 ratios (5R/5E), inch: 8 ratios (4R/4E) | ||
| Model | BP-20C25/20C20 | BP-10C20 | |
|---|---|---|---|
| Scan method | Push scan (via control panel) Pull scan (TWAIN-compliant application) |
||
| Scan speed*5 | Colour & B/W | Max. 37 originals/min. | |
| Resolution | Push scan | 100, 150, 200, 300, 400, 600 dpi | |
| Pull scan | 75, 100, 150, 200, 300, 400, 600 dpi 50 dpi to 9,600 dpi via user setting*6 |
||
| File formats | TIFF, PDF, JPEG*7 | ||
| Scan destinations | Scan to e-mail/desktop*8/FTP server/network folder (SMB)/USB drive | ||
| Model | BP-20C25/20C20 | BP-10C20 | |
|---|---|---|---|
| Resolution | 600 x 600 dpi | ||
| Interface | USB 2.0 (host, high-speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 b/g/n)*9 |
||
| Supported OS*10 | Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012, Windows Server® 2012 R2, Windows Server® 2016, Windows Server® 2019, Windows® 7, Windows® 8.1, Windows® 10, Mac OS 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13, 10.14, 10.15 |
||
| Network protocols | TCP/IP | ||
| Printing protocols | LPR, Raw TCP (port 9100), FTP for downloading print files, IPP, WSD | ||
| PDL | Standard | PCL 6 emulation | |
| Option | PostScript® 3™ emulation | ||
| Available fonts | 80 fonts for PCL, 136 fonts for PostScript 3 emulation | ||
| Model | BP-20C25/20C20 | BP-10C20 | |
|---|---|---|---|
| Compression method | MH/MR/MMR/JBIG | ||
| Communication protocol | Super G3/G3 | ||
| Transmission time | Less than 3 seconds*12 | ||
| Modem speed | 33,600 bps to 2,400 bps with automatic fallback | ||
| Transmission resolution | From Standard (203.2 x 97.8 dpi) to Ultra Fine (406.4 x 391 dpi) | ||
| Recording size | A3 to A5 (11″ x 17″ to 5 1/2″ x 8 1/2″) | ||
| Memory | 64 MB (built-in) | ||
| Greyscale levels | Equivalent to 256 levels | ||
Not sure which machine is right for you? Our sales team has an in-depth understanding of the capabilities of our machines and can guide you in selecting the copier or printer that suits your business needs. Book an obligation-free consultation with us and let us walk you through the options.
